Home >> Mercury >> 2004 >> Marauder >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster System - Electronic >> Diagnosis And Testing >> Warning Indicators >> Pinpoint Tests >> Pinpoint Test V: The Hazard Indicator Is Never On

Pinpoint Test V: The Hazard Indicator Is Never On

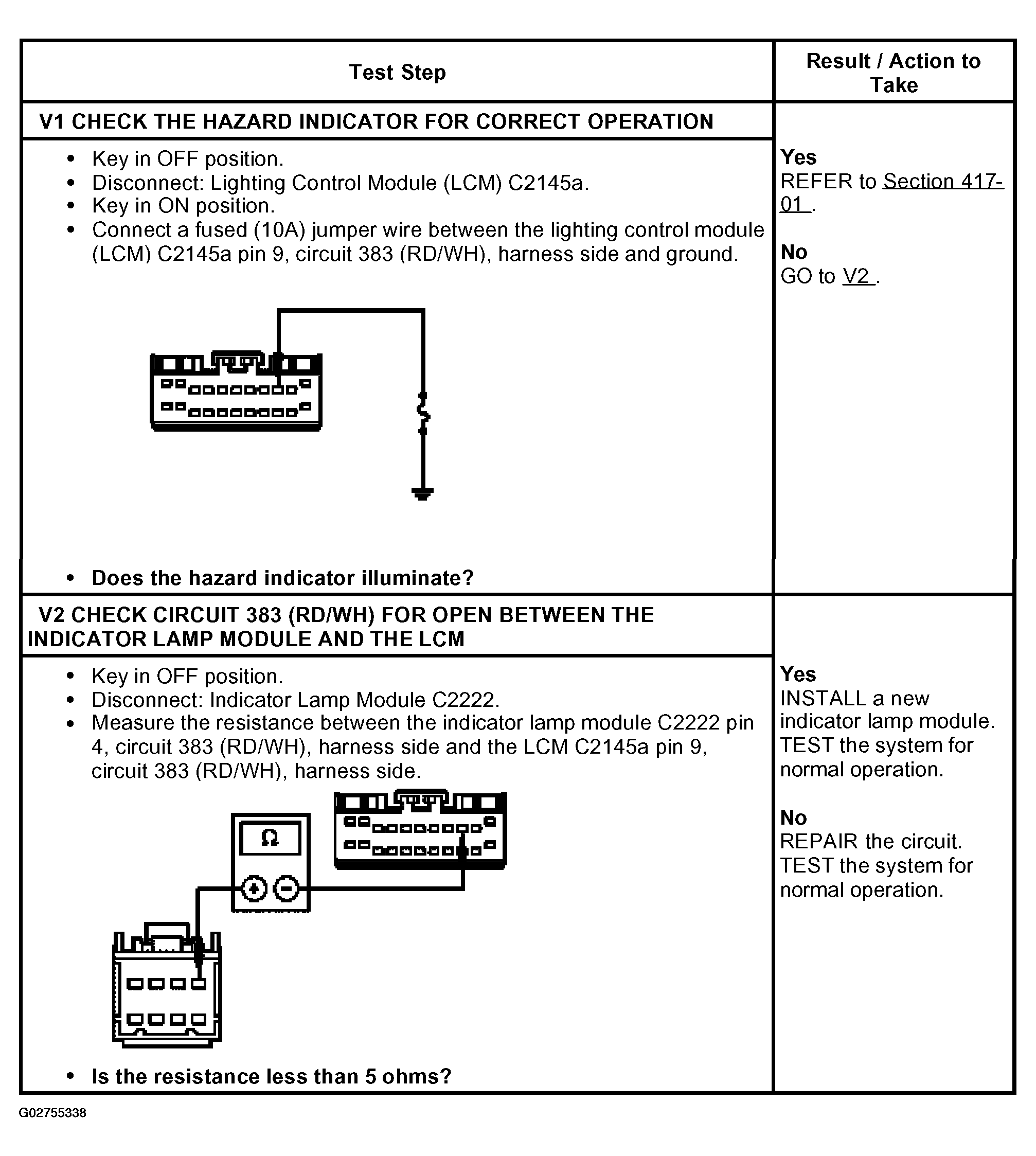

Fig 1: Pinpoint Test V: Hazard Indicator Is Never On Step (V1-V2)
G02755338Courtesy of FORD MOTOR CO.
