Pinpoint Test T: The Trunk Ajar Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

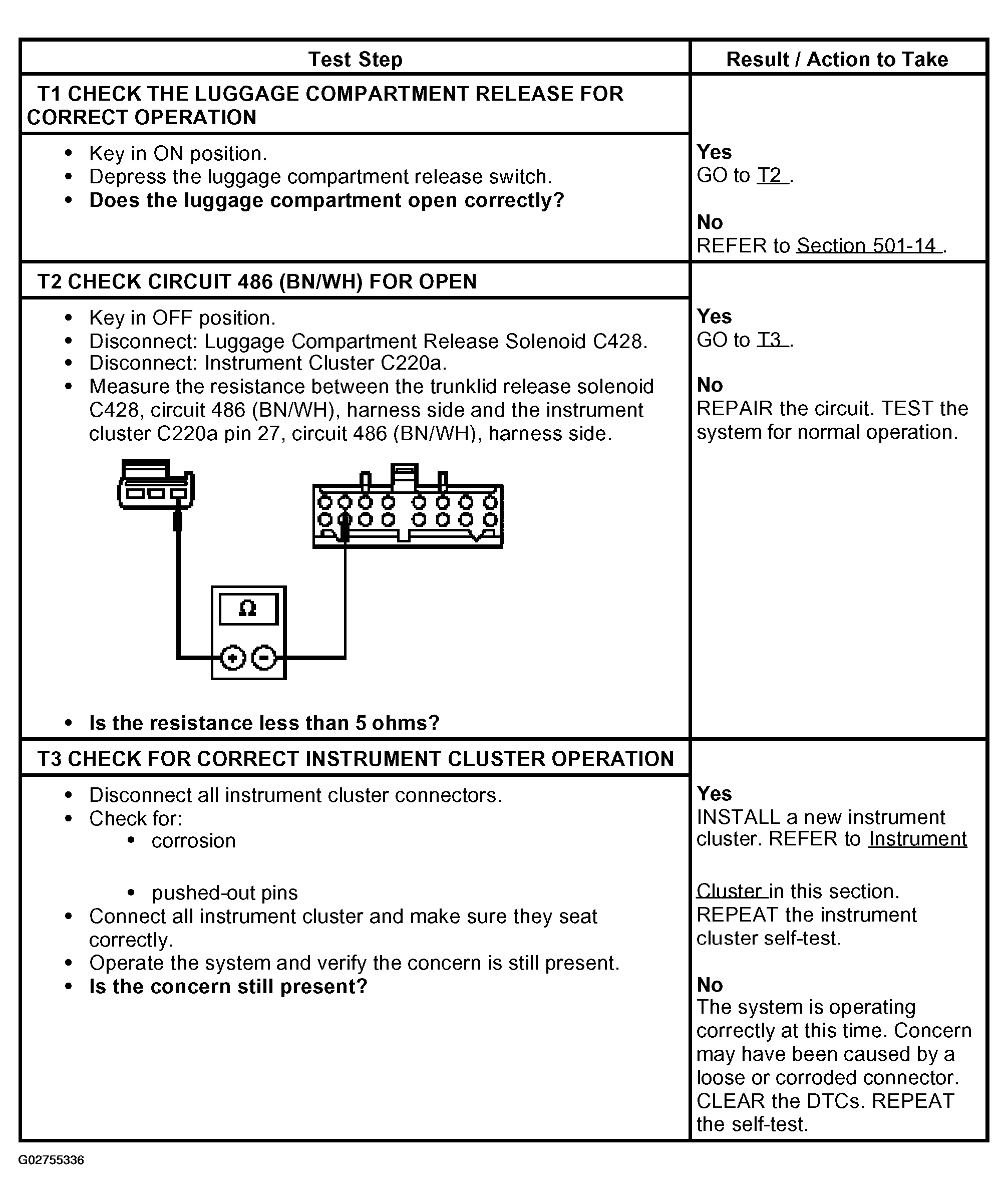

Fig 1: Pinpoint Test T: Trunk Ajar Indicator Is Never On Step (T1-T3)
G02755336Courtesy of FORD MOTOR CO.
