Pinpoint Test Q: The Abs Warning Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

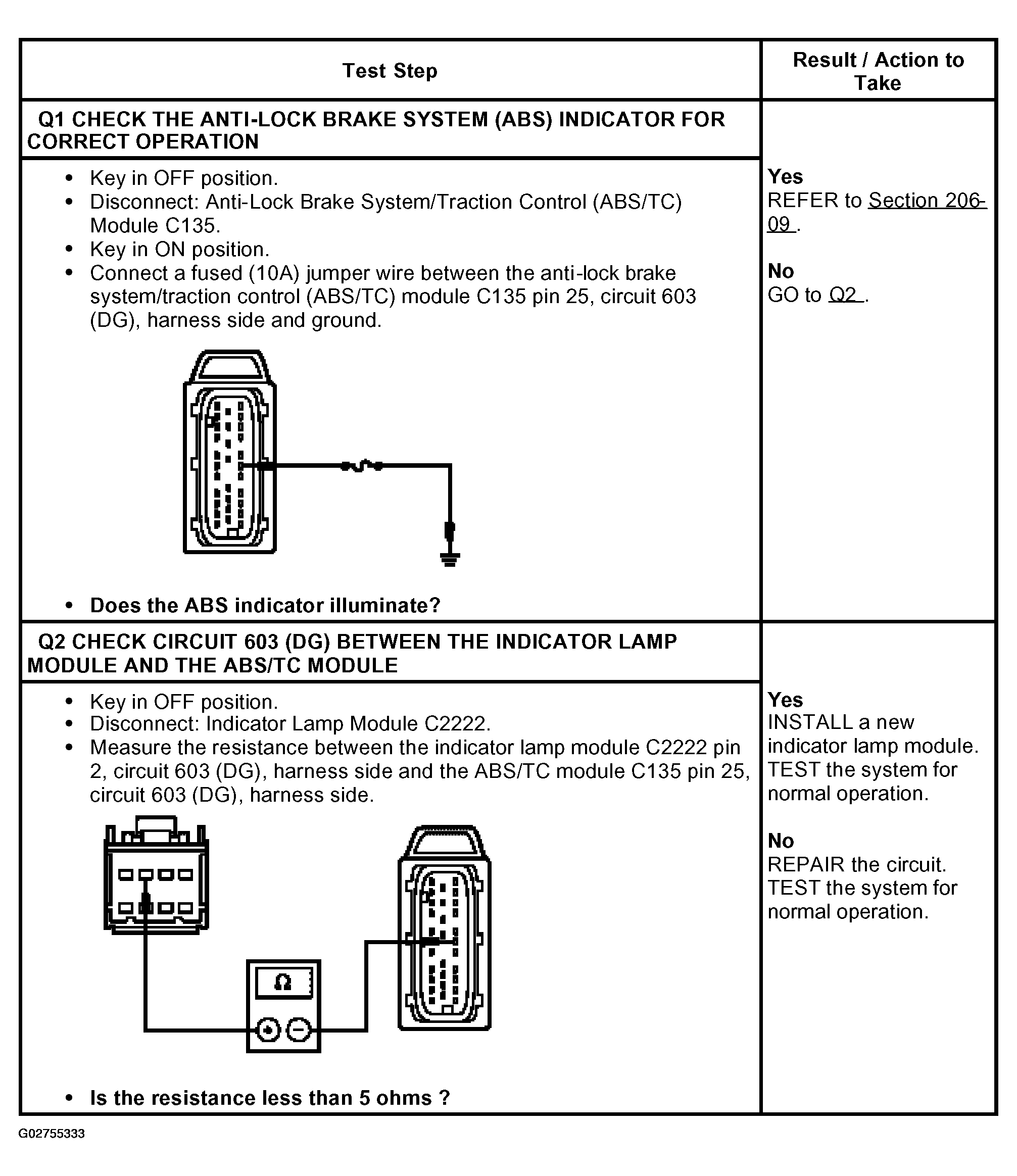

Fig 1: Pinpoint Test Q: ABS Warning Indicator Is Never On Step (Q1-Q2)
G02755333Courtesy of FORD MOTOR CO.
