Pinpoint Test P: The Overdrive Off Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

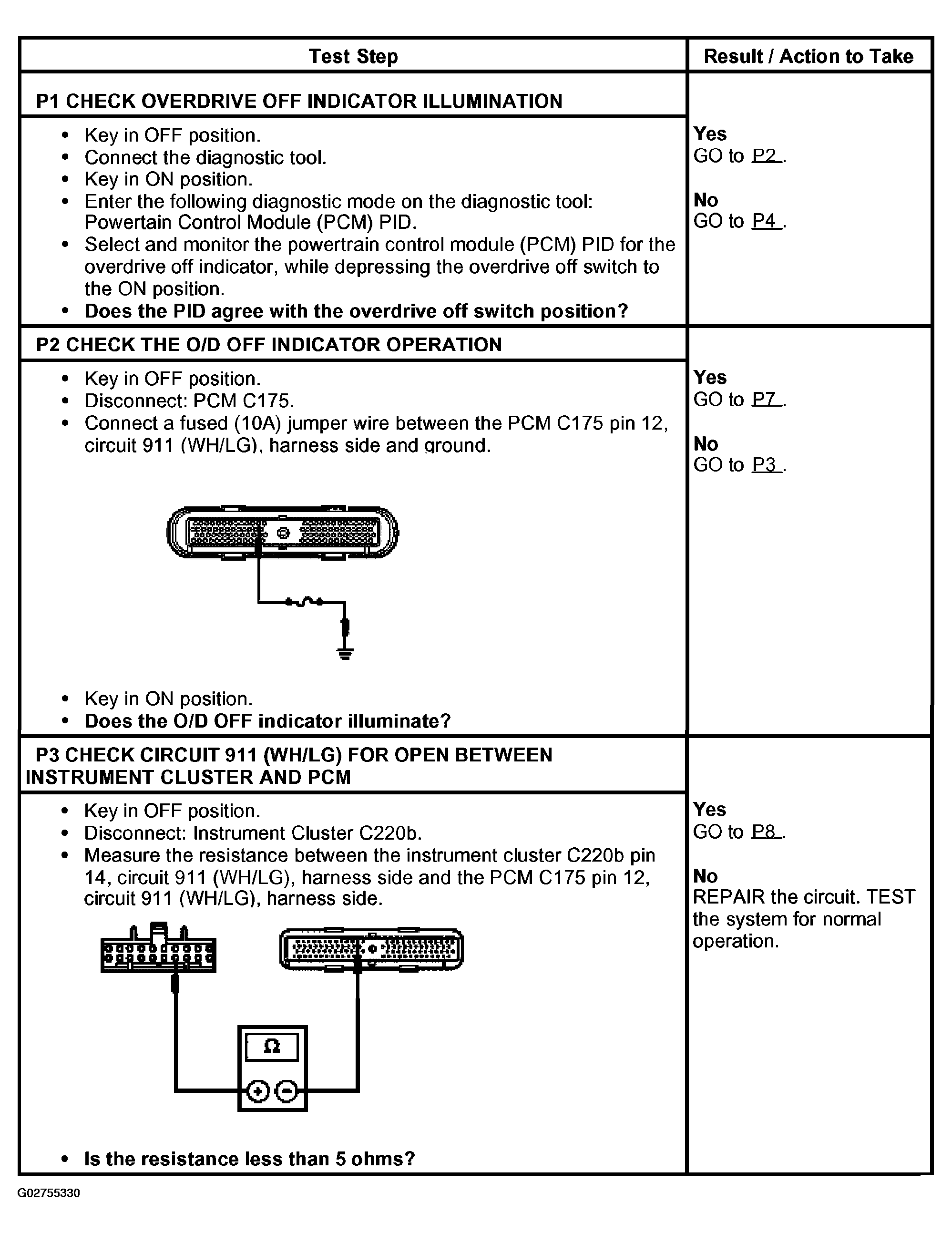

Fig 1: Pinpoint Test P: Overdrive Off Indicator Is Never On Step (P1-P3)

Courtesy of FORD MOTOR CO.

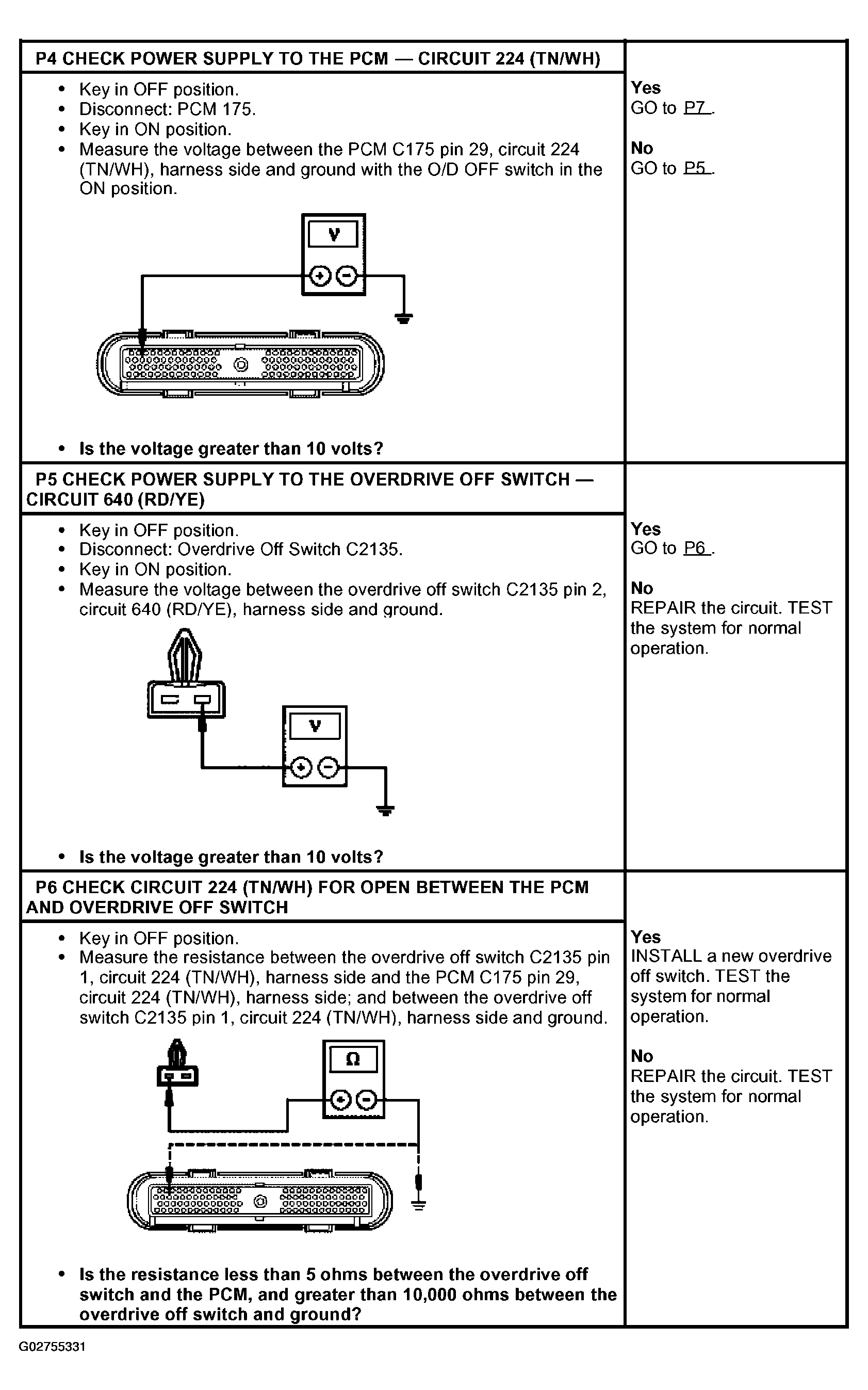

Fig 2: Pinpoint Test P: Overdrive Off Indicator Is Never On Step (P4-P6)

Courtesy of FORD MOTOR CO.

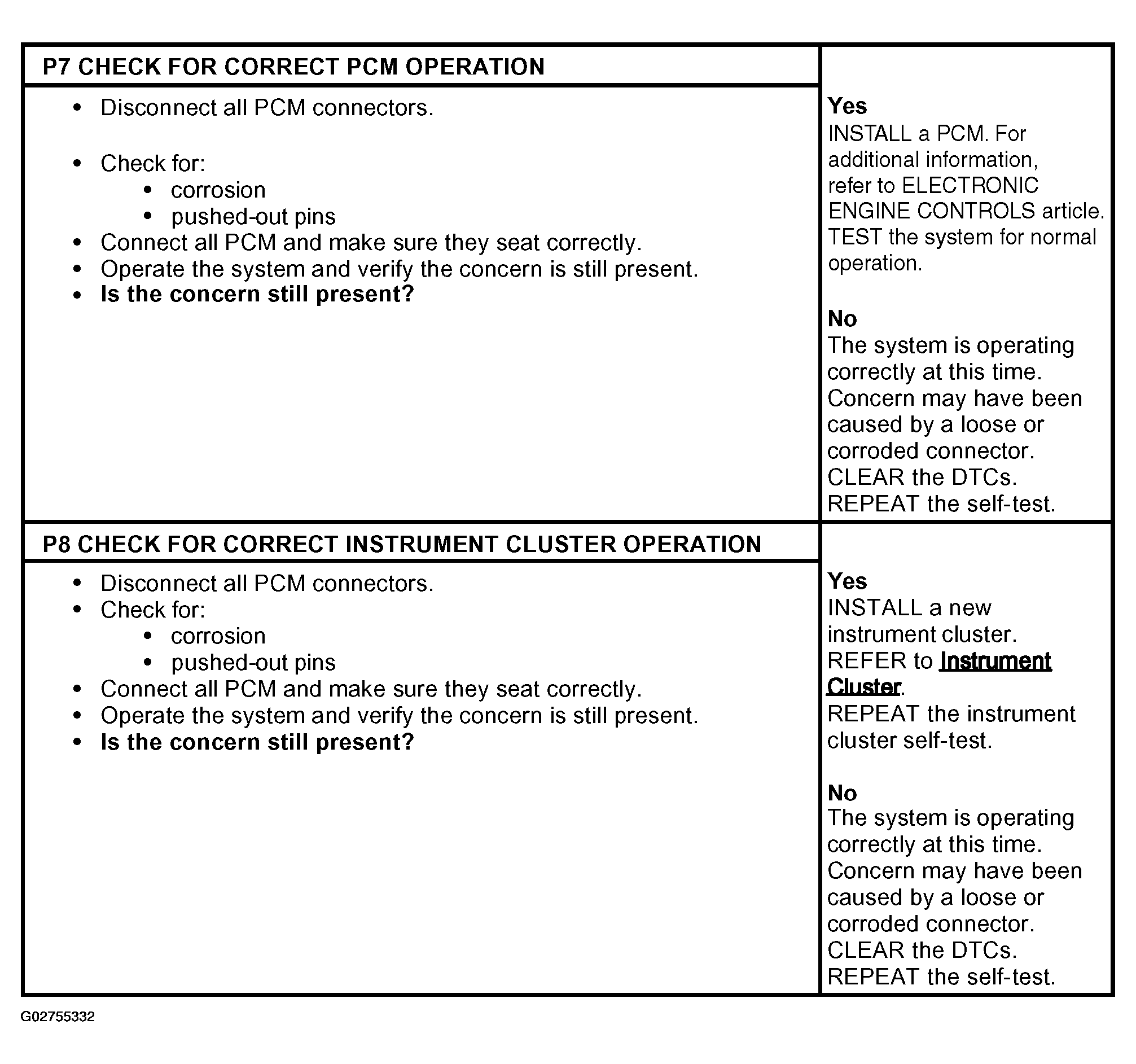

Fig 3: Pinpoint Test P: Overdrive Off Indicator Is Never On Step (P7-P8)

Courtesy of FORD MOTOR CO.
