Pinpoint Test O: The Tract CNTL (Traction Control) Indicator Is Never/Always On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

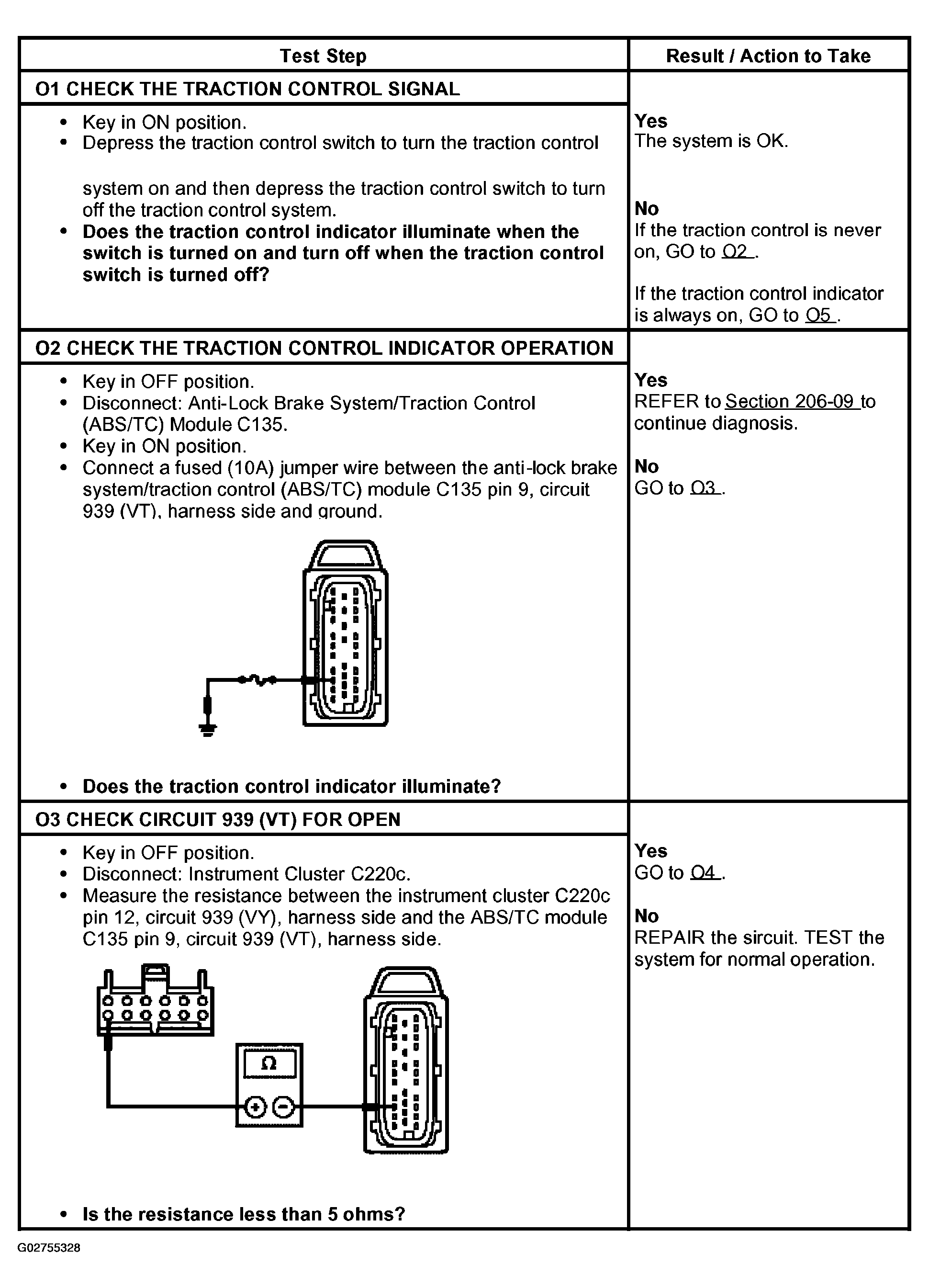

Fig 1: Pinpoint Test O: TRACT CNTL (Traction Control) Indicator Is Never/Always On Step (O1-O3)
G02755328Courtesy of FORD MOTOR CO.

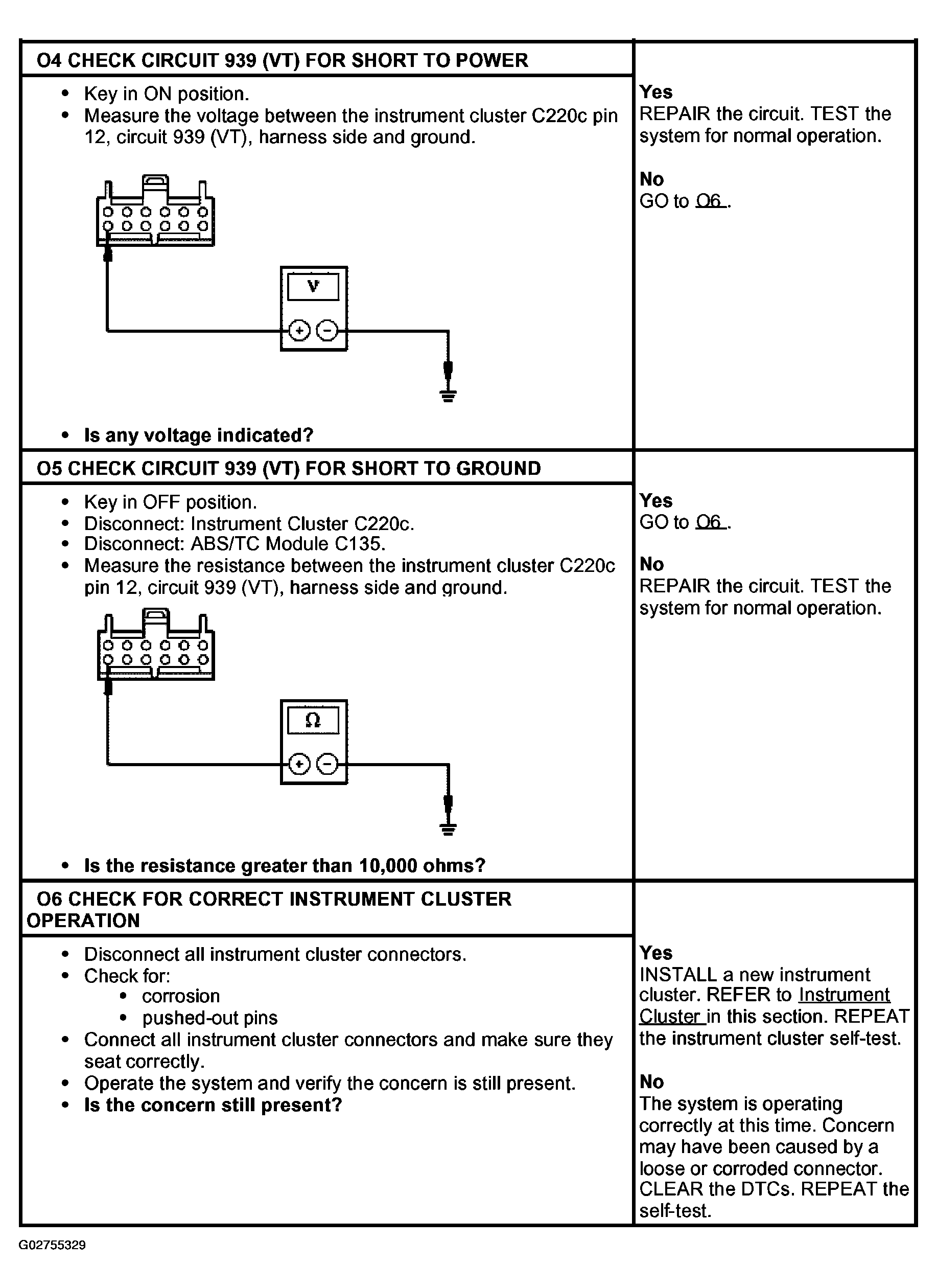

Fig 2: Pinpoint Test O: TRACT CNTL (Traction Control) Indicator Is Never/Always On Step (O4-O6)
G02755329Courtesy of FORD MOTOR CO.
