Pinpoint Test M: The RH Turn Indicator Is Never/Always On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

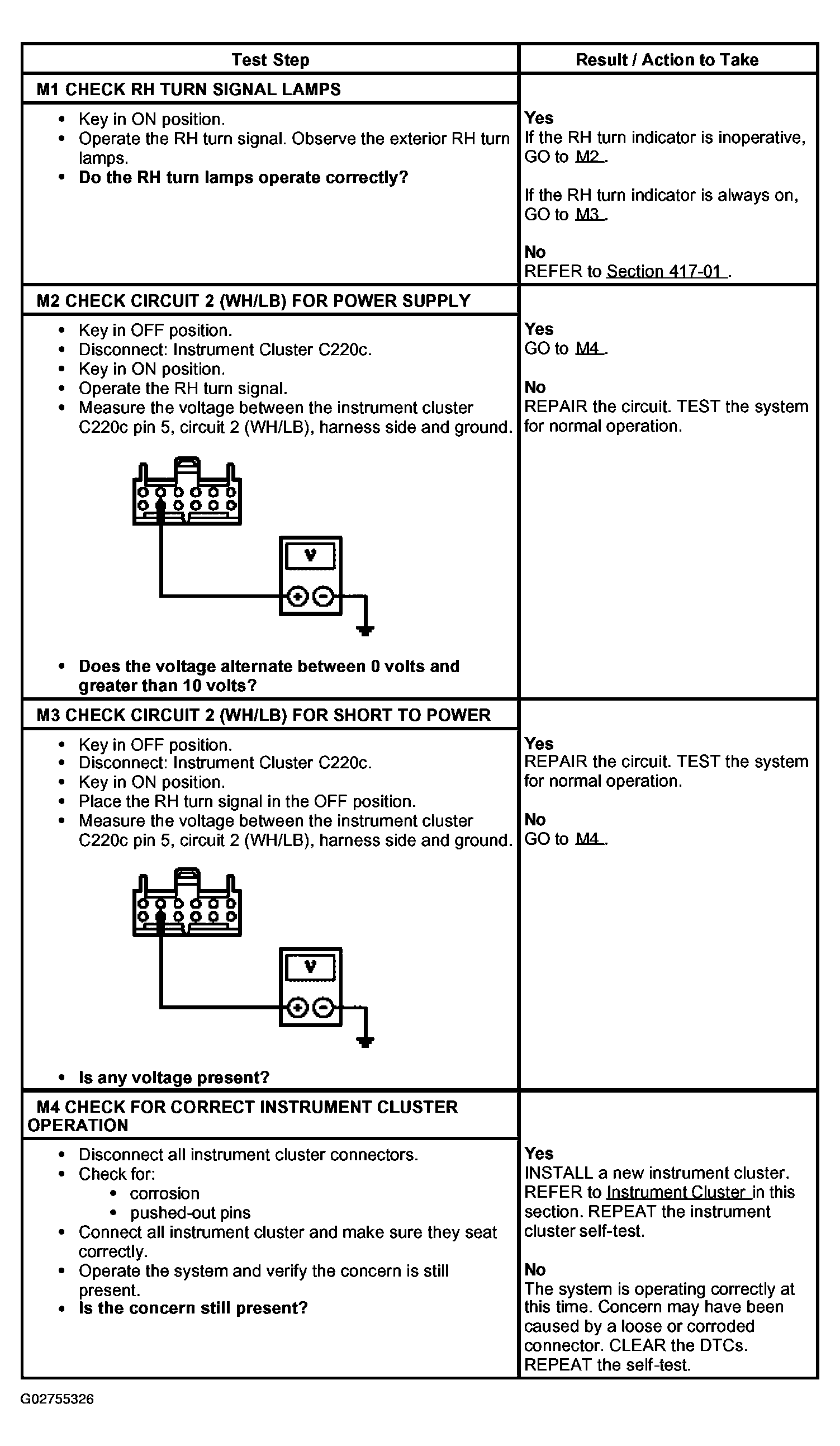

Fig 1: Pinpoint Test M: RH Turn Indicator Is Never/Always On Step (M1-M4)
G02755326Courtesy of FORD MOTOR CO.
