Pinpoint Test K: The Check Air Suspension Indicator Is Inoperative/Always On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

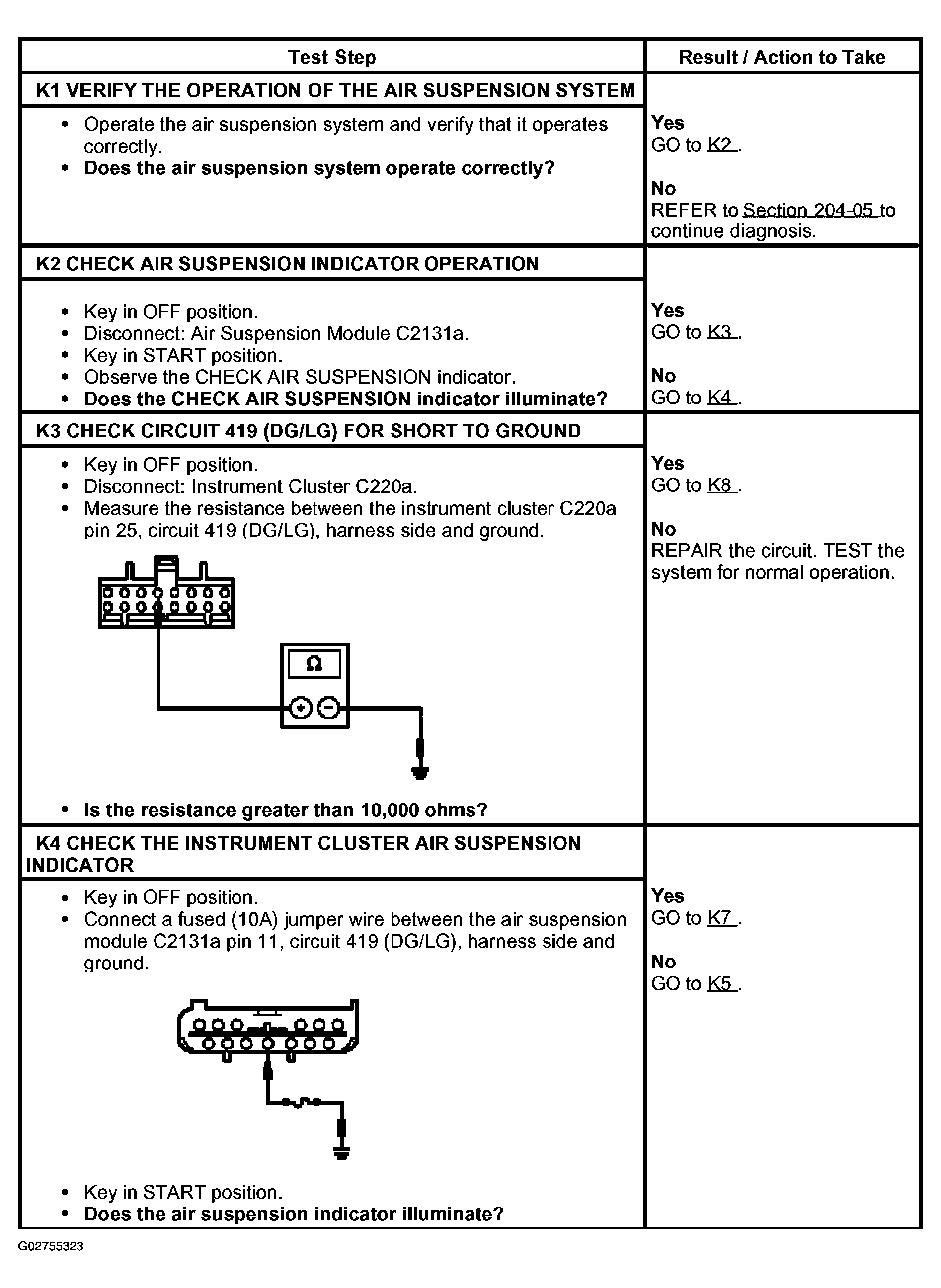

Fig 1: Pinpoint Test K: Check Air Suspension Indicator Is Inoperative/Always On Step (K1-K4)
G02755323Courtesy of FORD MOTOR CO.

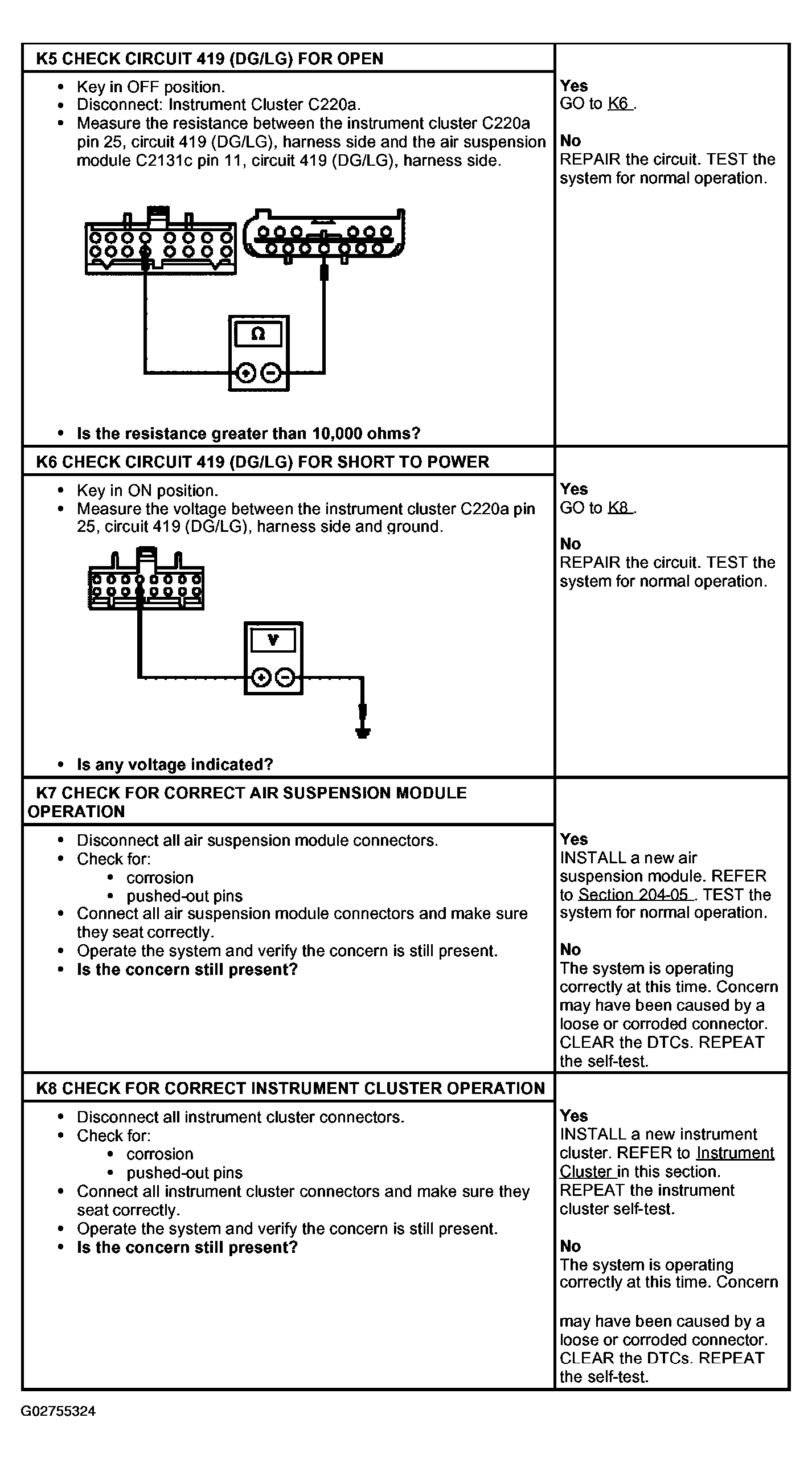

Fig 2: Pinpoint Test K: Check Air Suspension Indicator Is Inoperative/Always On Step (K5-K8)
G02755324Courtesy of FORD MOTOR CO.
