Pinpoint Test J: The Air Bag Warning Indicator Is Never On

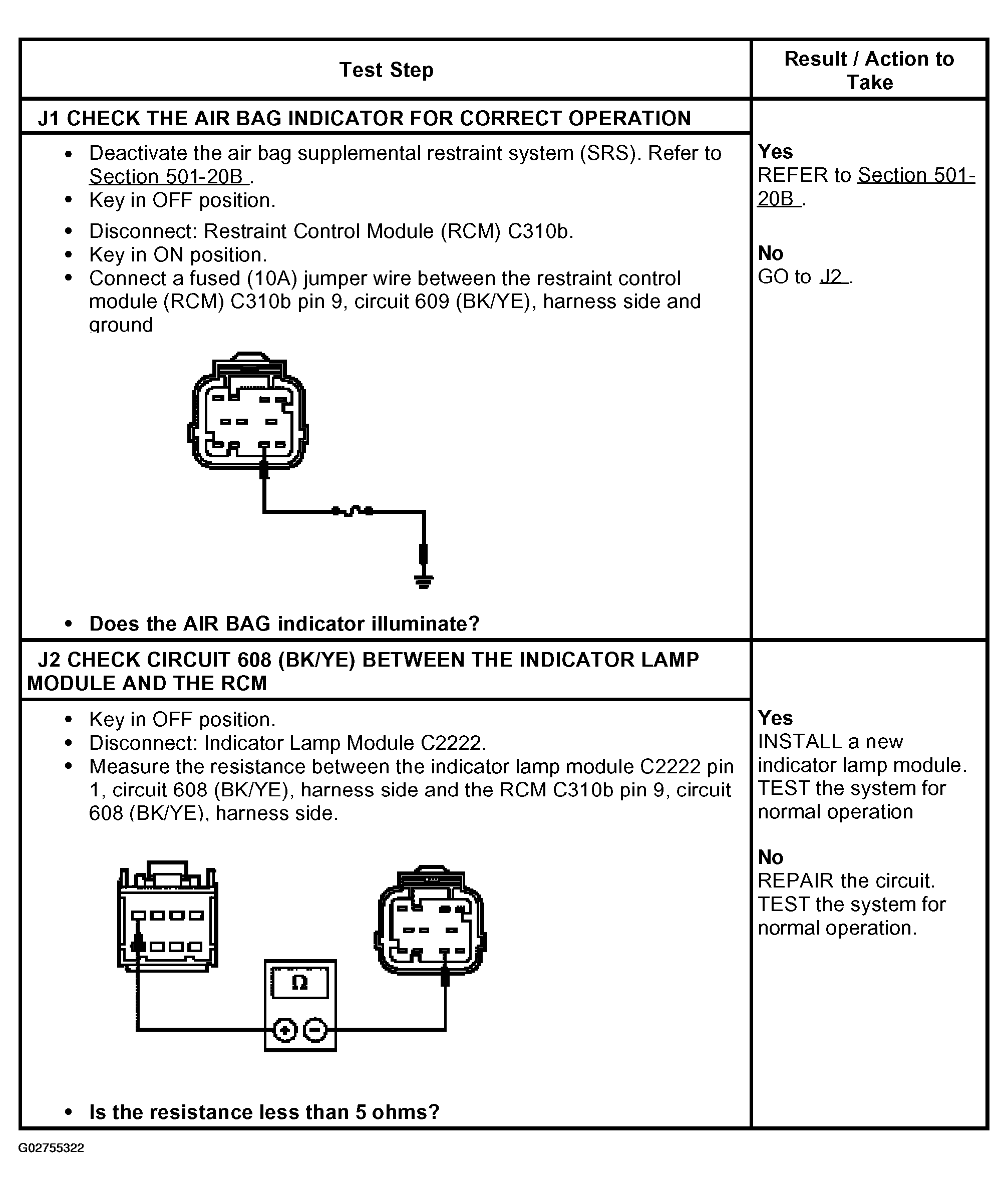

Fig 1: Pinpoint Test J: Air Bag Warning Indicator Is Never On Step (J1-J2)

G02755322

Courtesy of FORD MOTOR CO.
