Pinpoint Test I: The Check Engine Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

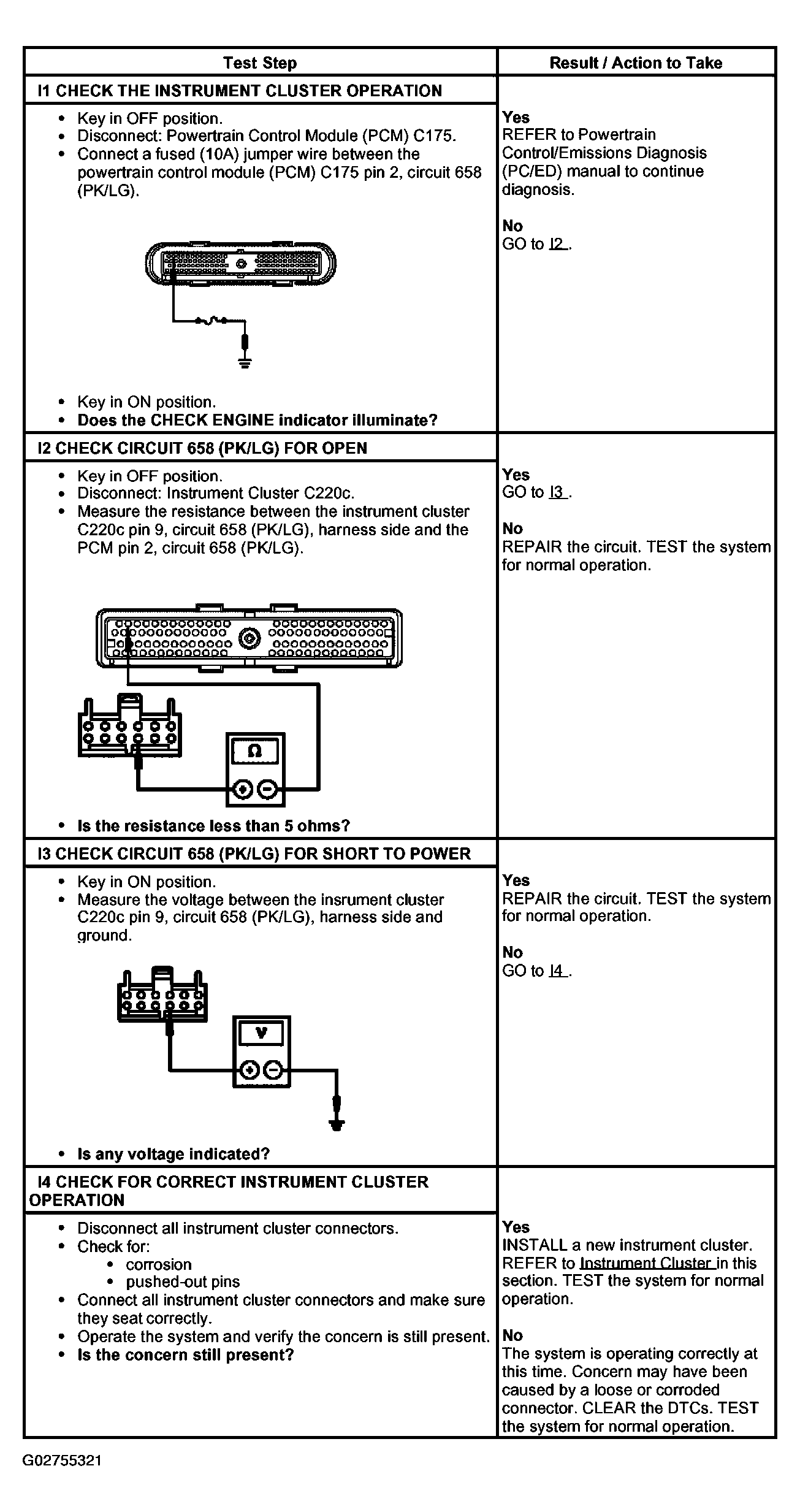

Fig 1: Pinpoint Test I: Check Engine Indicator Is Never On Step (I1-I4)
G02755321Courtesy of FORD MOTOR CO.
