Pinpoint Test H: The Brake Warning Indicator Is Never On

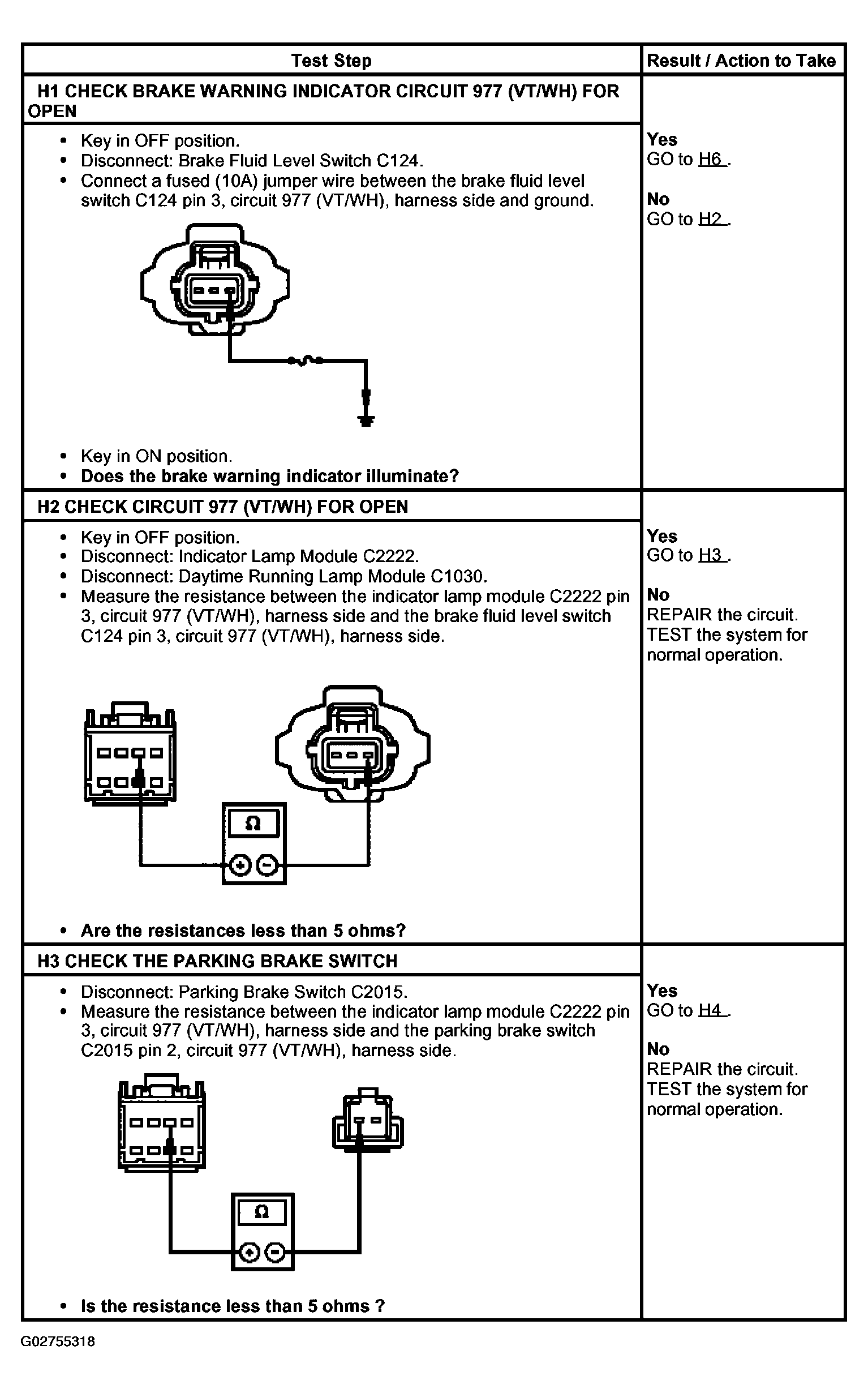

Fig 1: Pinpoint Test H: Brake Warning Indicator Is Never On Step (H1-H3)
G02755318Courtesy of FORD MOTOR CO.

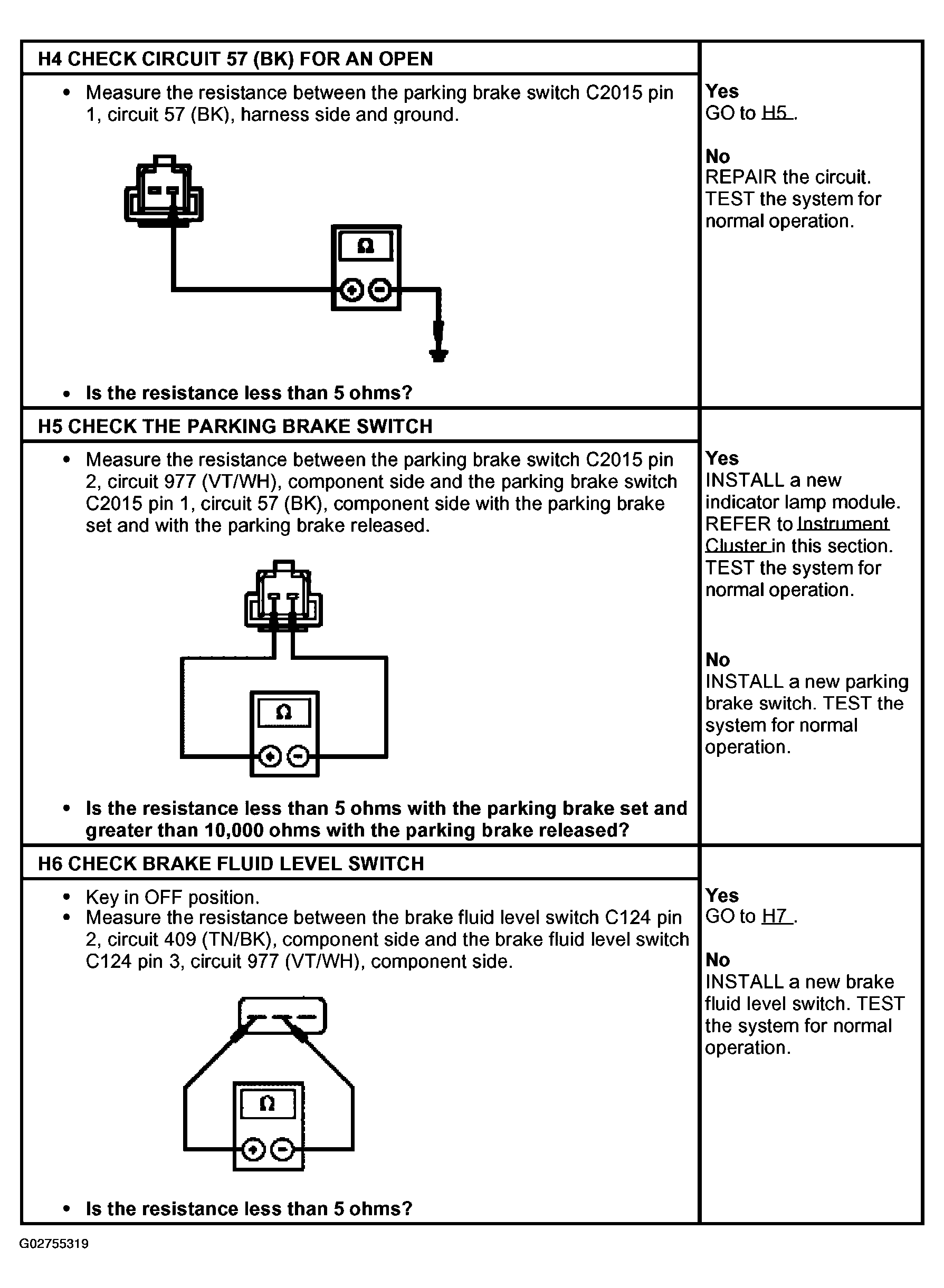

Fig 2: Pinpoint Test H: Brake Warning Indicator Is Never On Step (H4-H6)
G02755319Courtesy of FORD MOTOR CO.

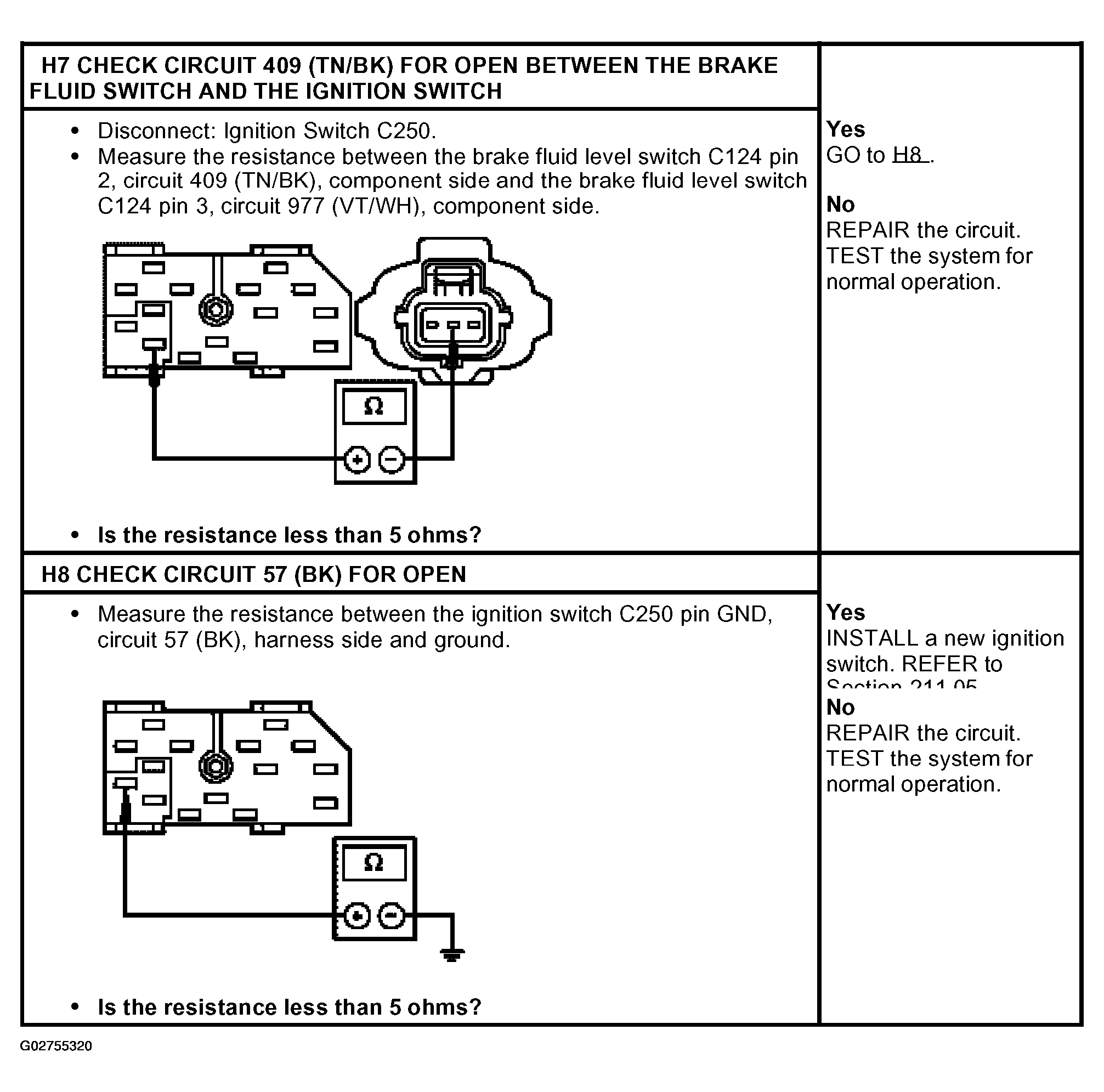

Fig 3: Pinpoint Test H: Brake Warning Indicator Is Never On Step (H7-H8)
G02755320Courtesy of FORD MOTOR CO.
