Pinpoint Test G: The Charging System Warning Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

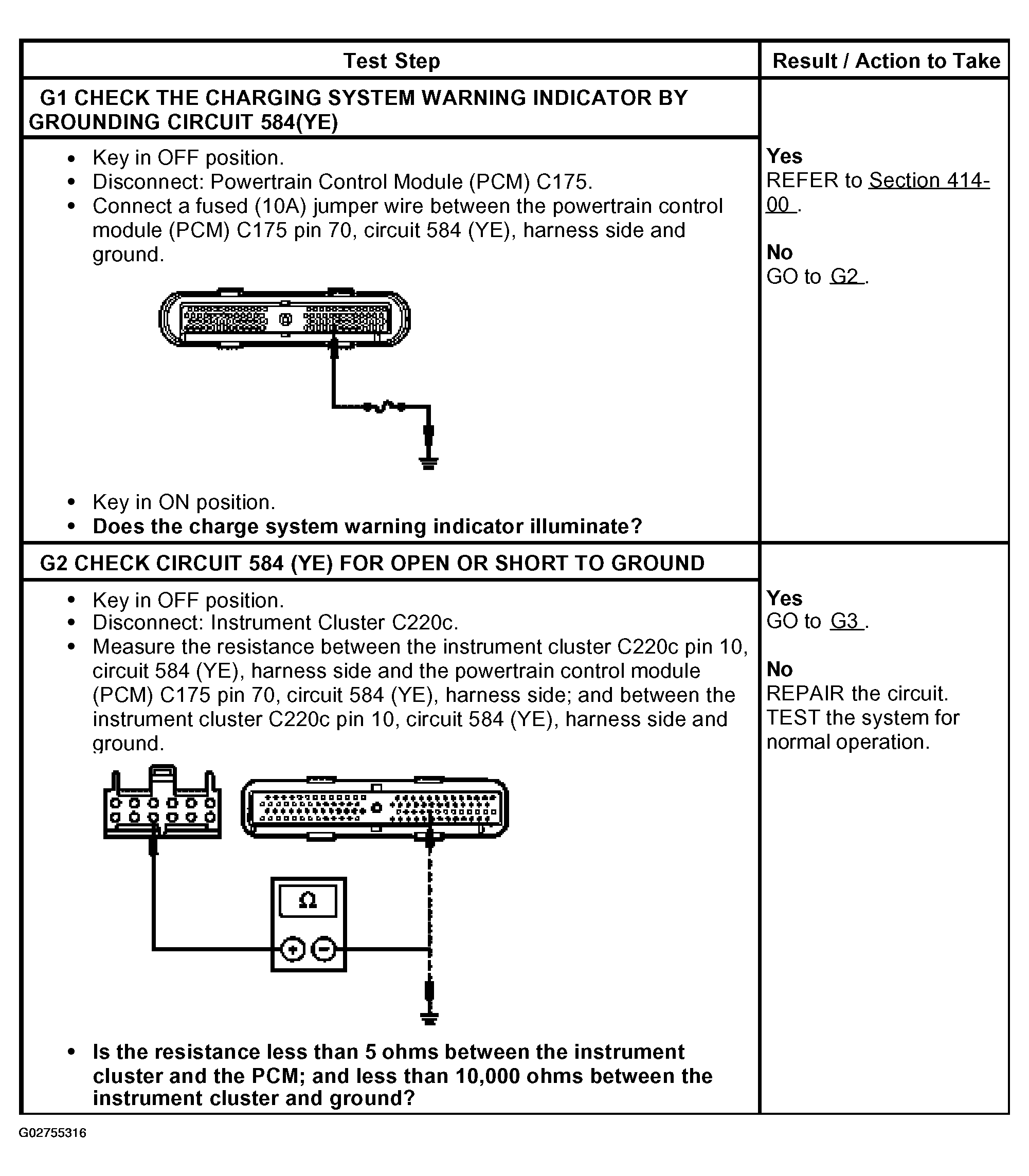

Fig 1: Pinpoint Test G: Charging System Warning Indicator Is Never On Step (G1-G2)
G02755316Courtesy of FORD MOTOR CO.

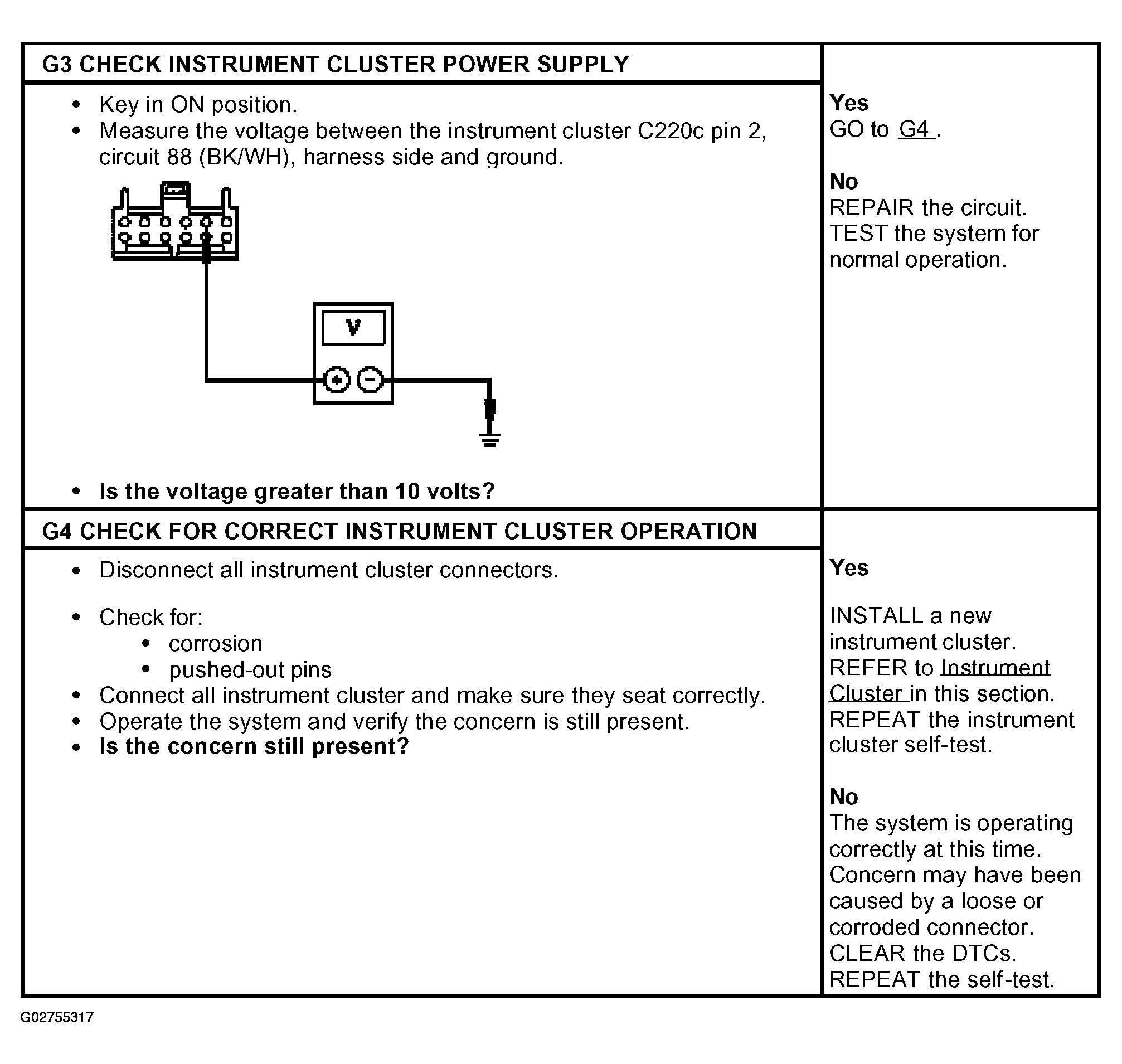

Fig 2: Pinpoint Test G: Charging System Warning Indicator Is Never On Step (G3-G4)
G02755317Courtesy of FORD MOTOR CO.
