Pinpoint Test E: The Speedometer/Odometer Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

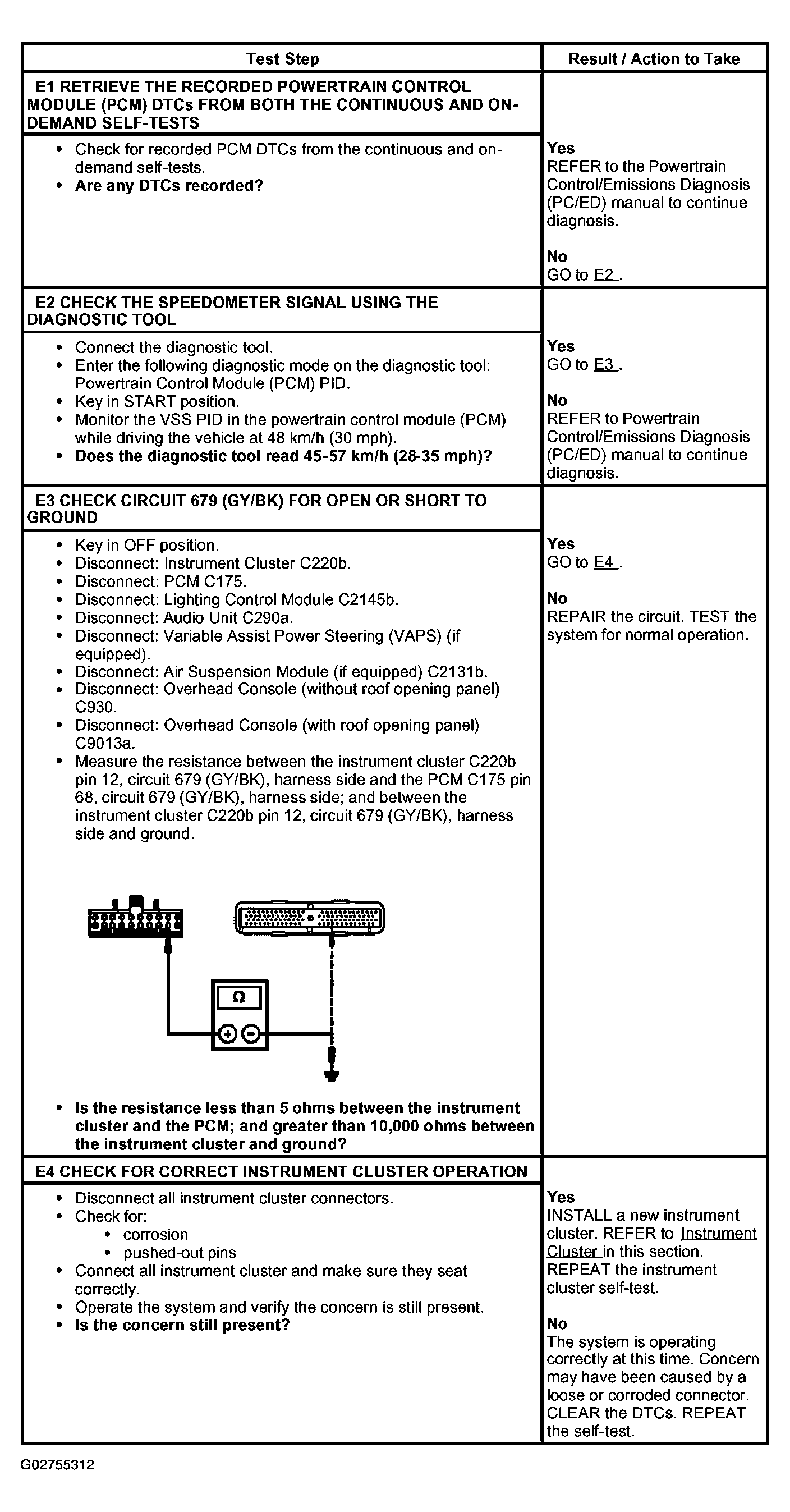

Fig 1: Pinpoint Test E: Speedometer/Odometer Is Inoperative Step (E1-E4)
G02755312Courtesy of FORD MOTOR CO.
