Removal and Installation

  1. Remove the instrument cluster finish panel. Refer to INSTRUMENT PANEL AND CONSOLE .
    2. NOTE: The illumination bulbs are replaceable.
  2. Remove the message center switch.
    1. Remove the screws.
    2. Remove the message center switch.
      • Install new illumination bulbs as necessary.

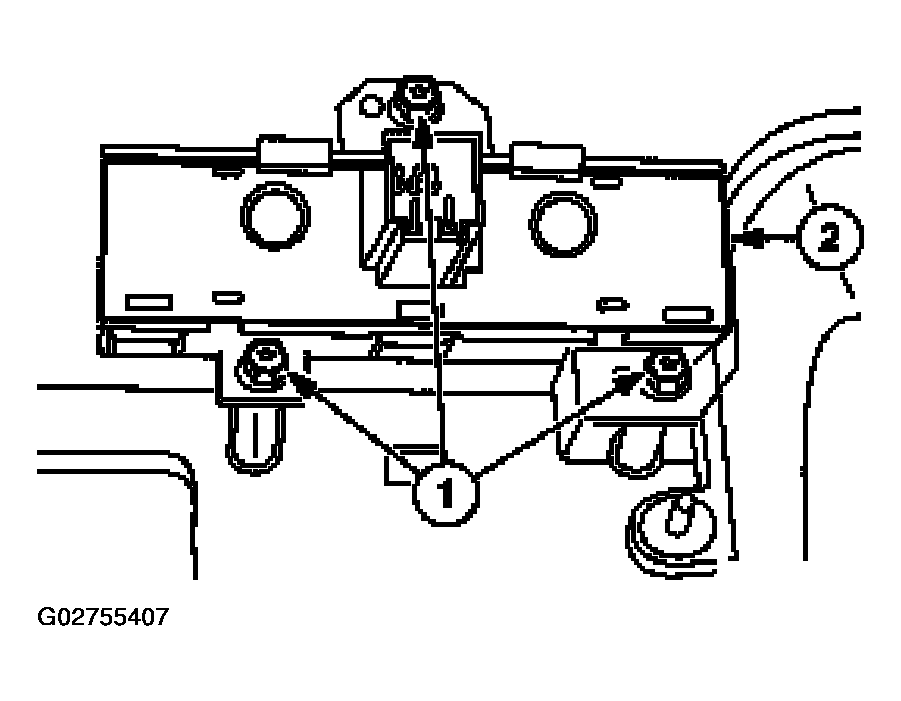

      Fig 1: Identifying Message Centre Switch Bolt
      G02755407Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
