Removal and Installation

  1. Remove the RH interior trim. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order indicated in the following illustration and table.

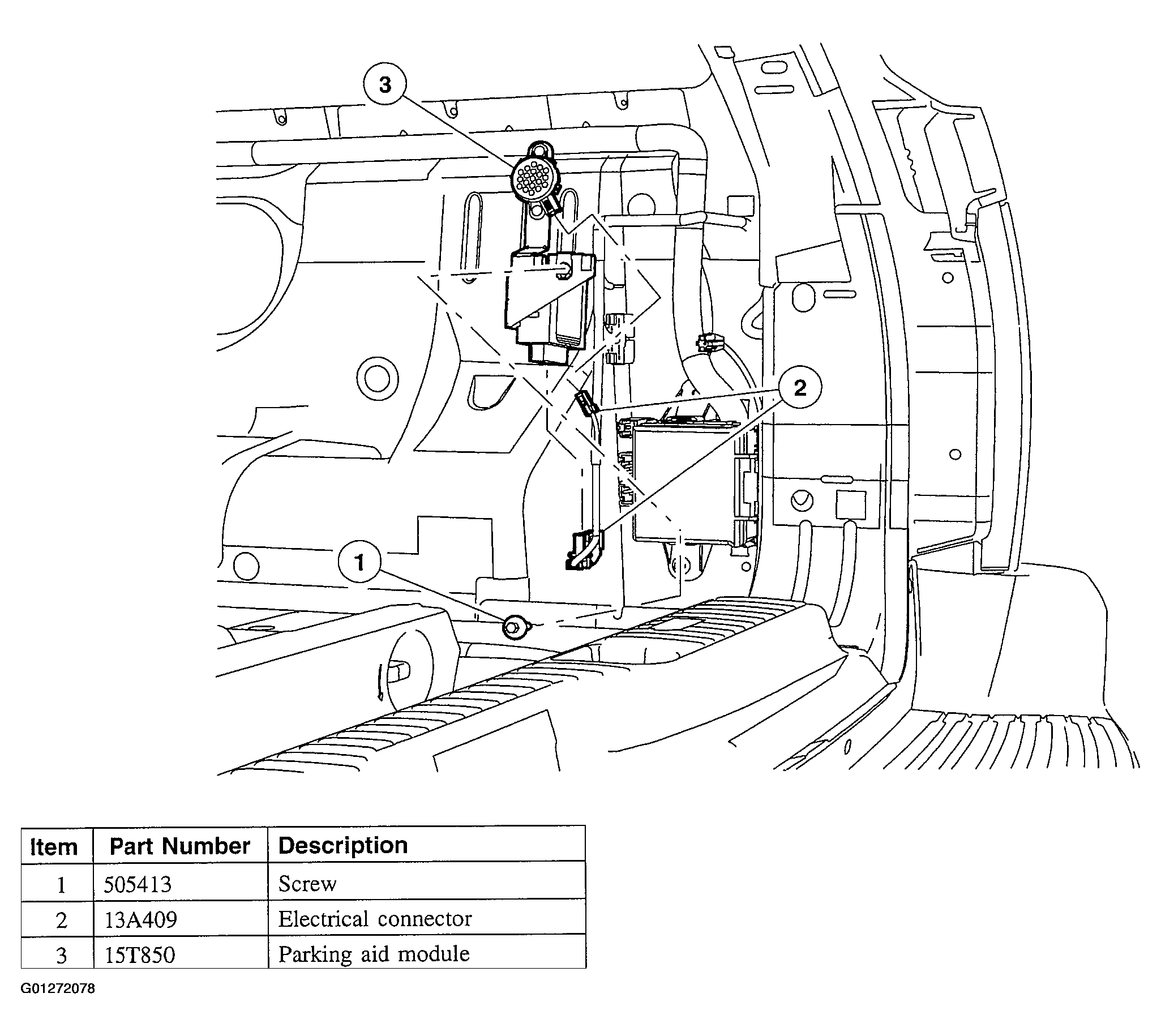

    Fig 1: View Of Parking Aid Module
    G01272078Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
