Pinpoint Test AV: The Headlamp On Reminder Chime Is Inoperative: Testing

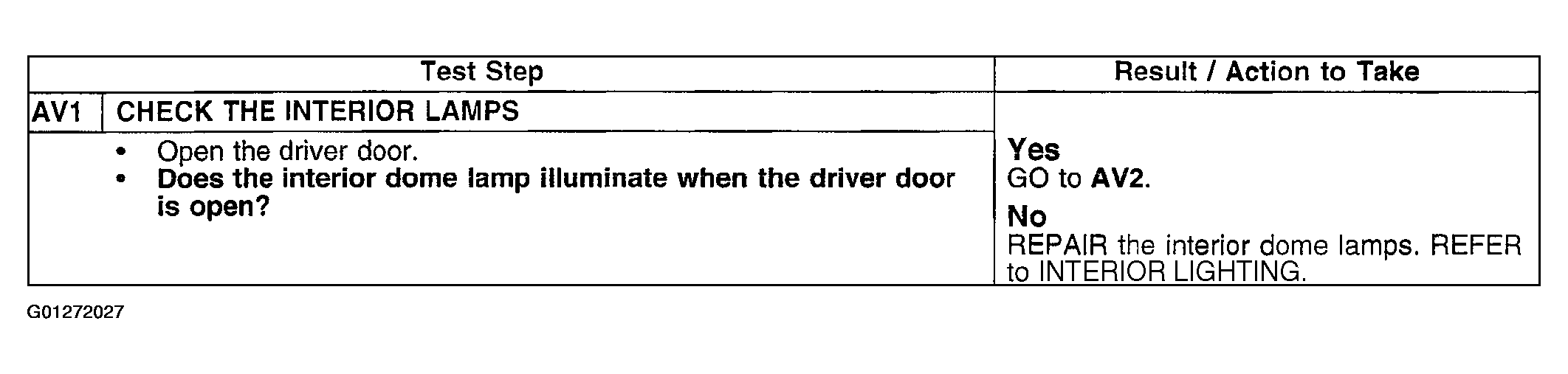

Fig 1: Pinpoint Test AV: Headlamp On Reminder Chime Is Inoperative (AV1)
G01272027Courtesy of FORD MOTOR CO.

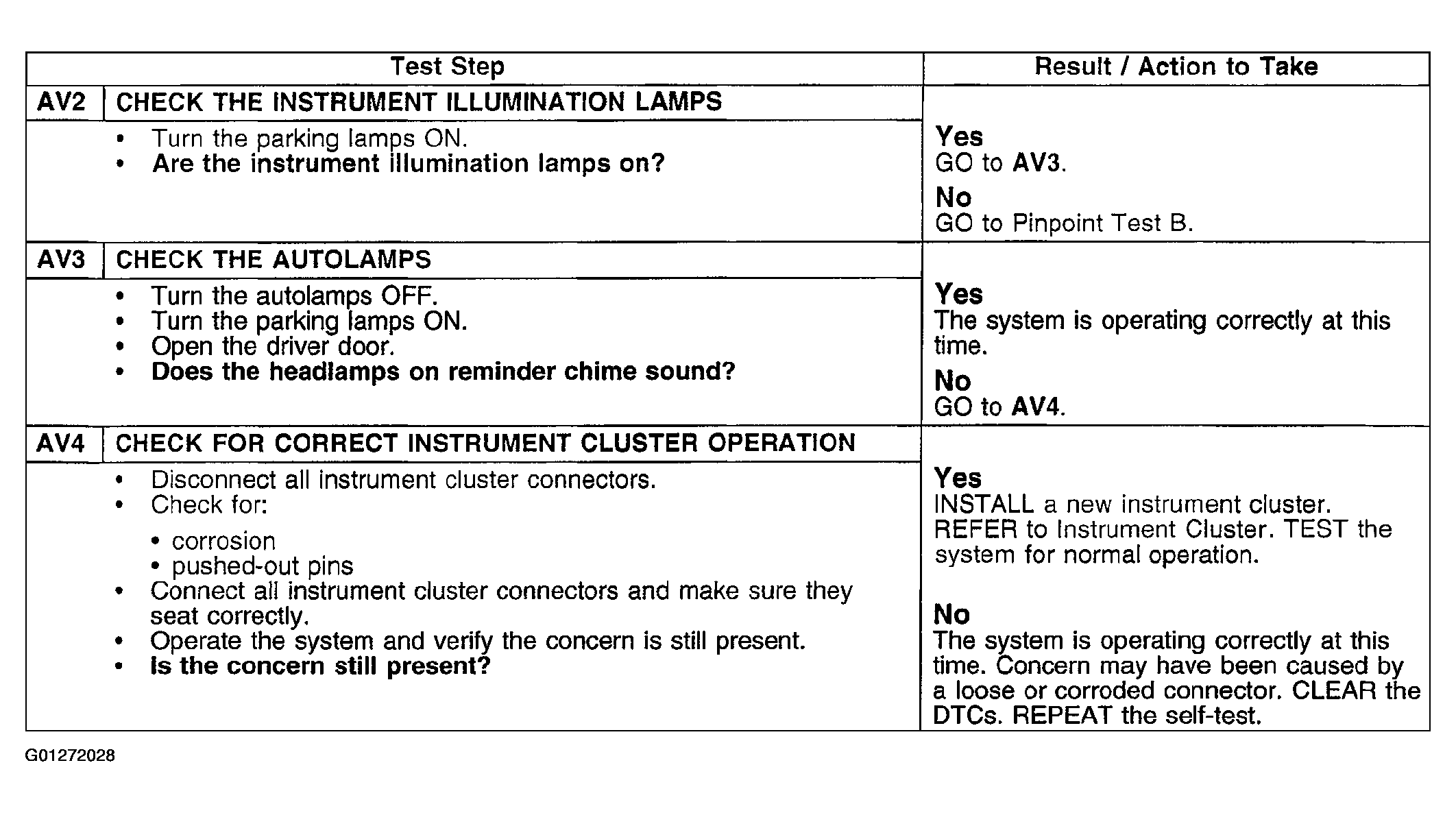

Fig 2: Pinpoint Test AV: Headlamp On Reminder Chime Is Inoperative (AV2 - AV4)
G01272028Courtesy of FORD MOTOR CO.
