Pinpoint Test AU: The Key-ln-Ignition Chime Is Inoperative: Testing

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

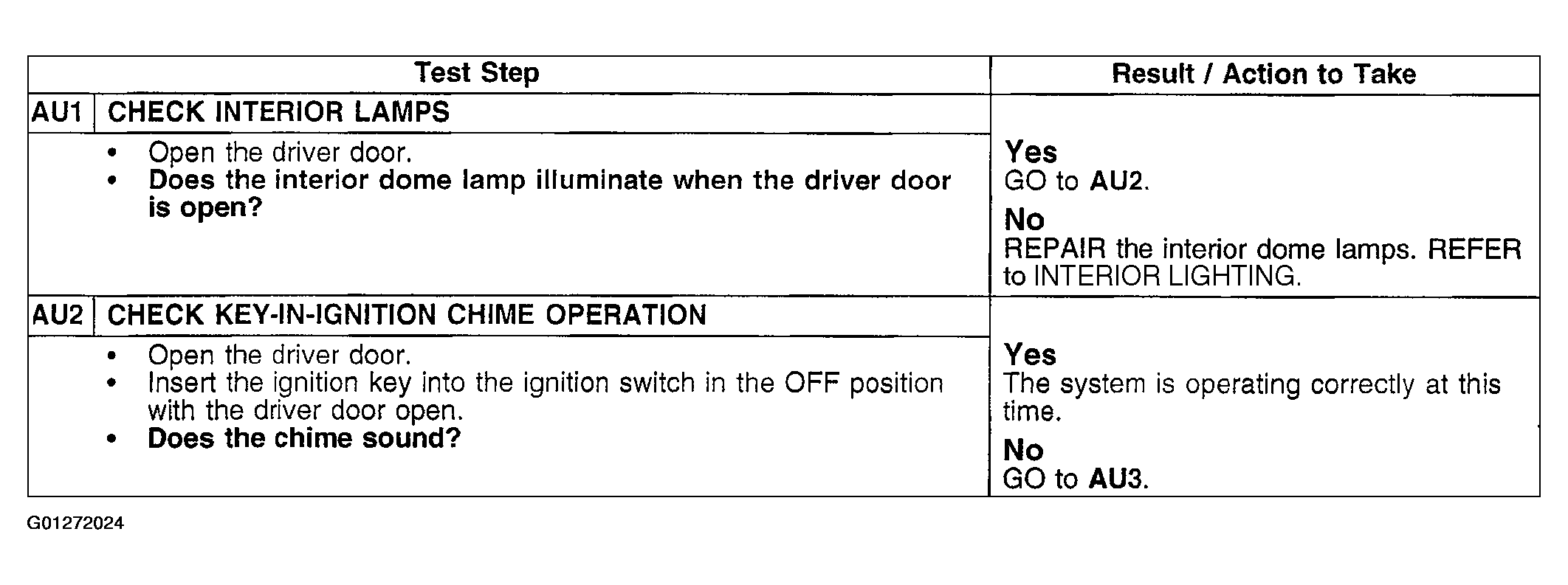

Fig 1: Pinpoint Test AU: Key-In-Ignition Chime Is Inoperative (AU1 - AU2)
G01272024Courtesy of FORD MOTOR CO.

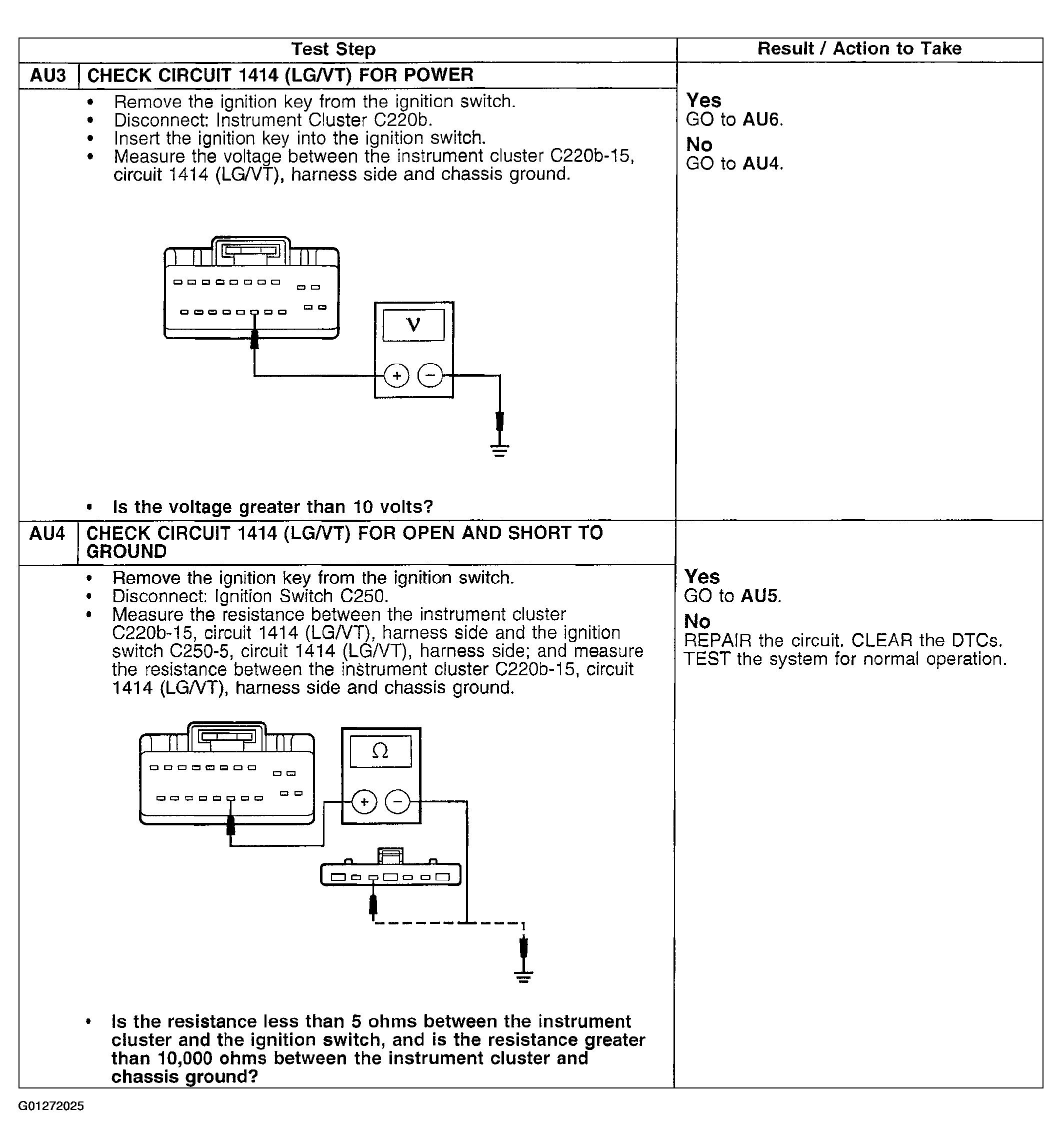

Fig 2: Pinpoint Test AU: Key-In-Ignition Chime Is Inoperative (AU3 - AU4)
G01272025Courtesy of FORD MOTOR CO.

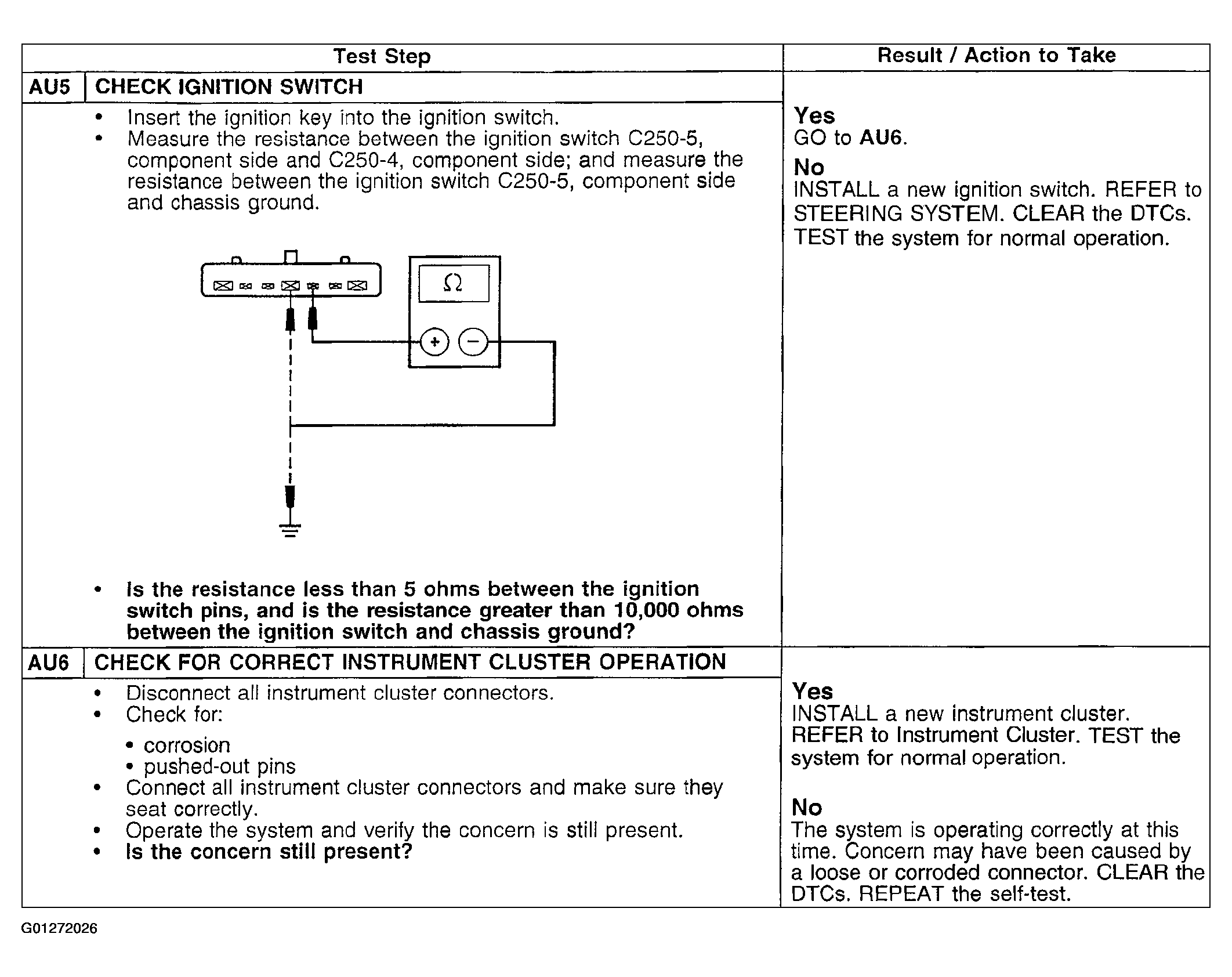

Fig 3: Pinpoint Test AU: Key-In-Ignition Chime Is Inoperative (AU5 - AU6)
G01272026Courtesy of FORD MOTOR CO.
