Pinpoint Test BD: Parking Aid Is Inoperative: Testing

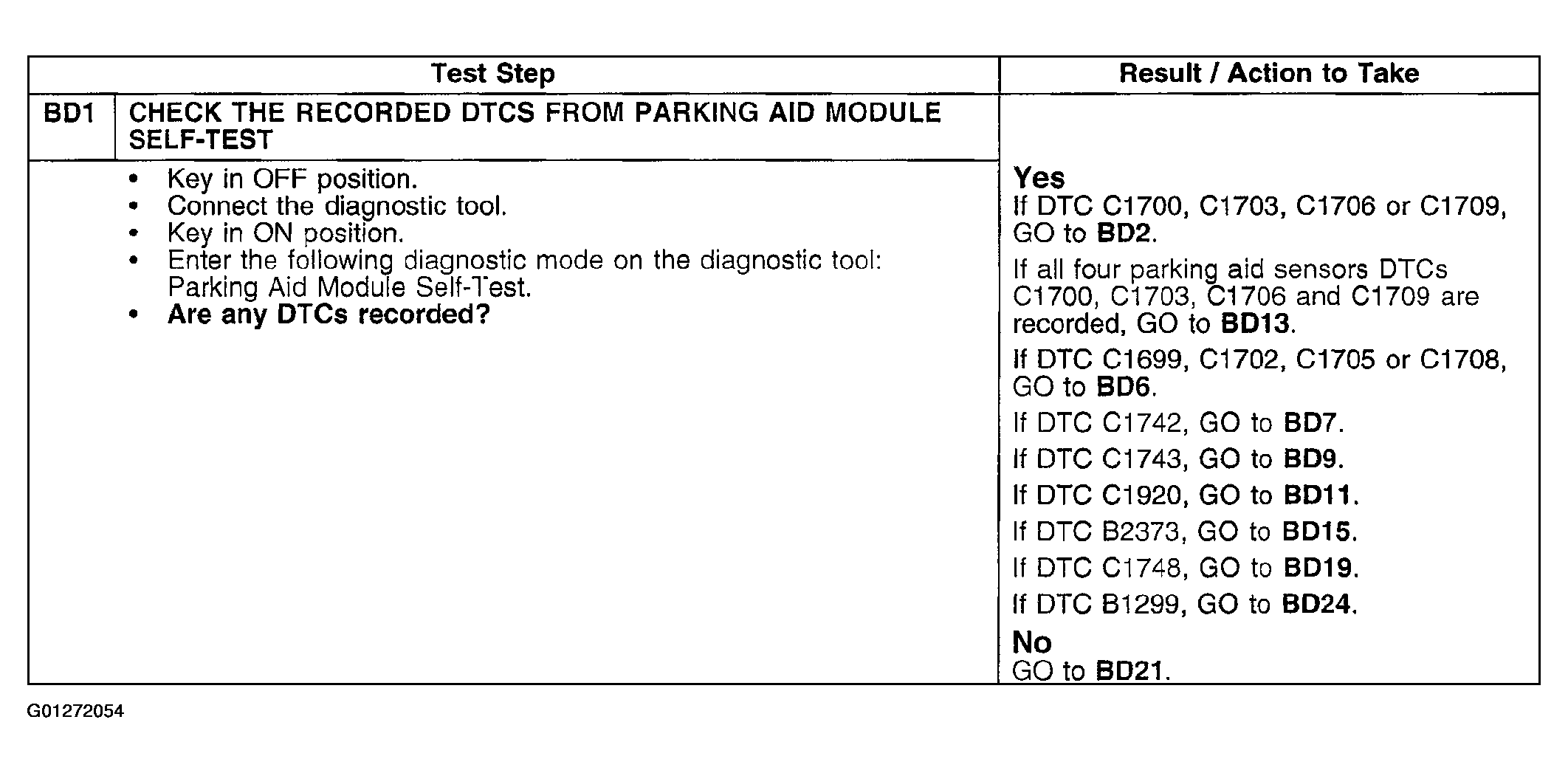

Fig 1: Pinpoint Test BD: Parking Aid Is Inoperative (BD1)

Courtesy of FORD MOTOR CO.

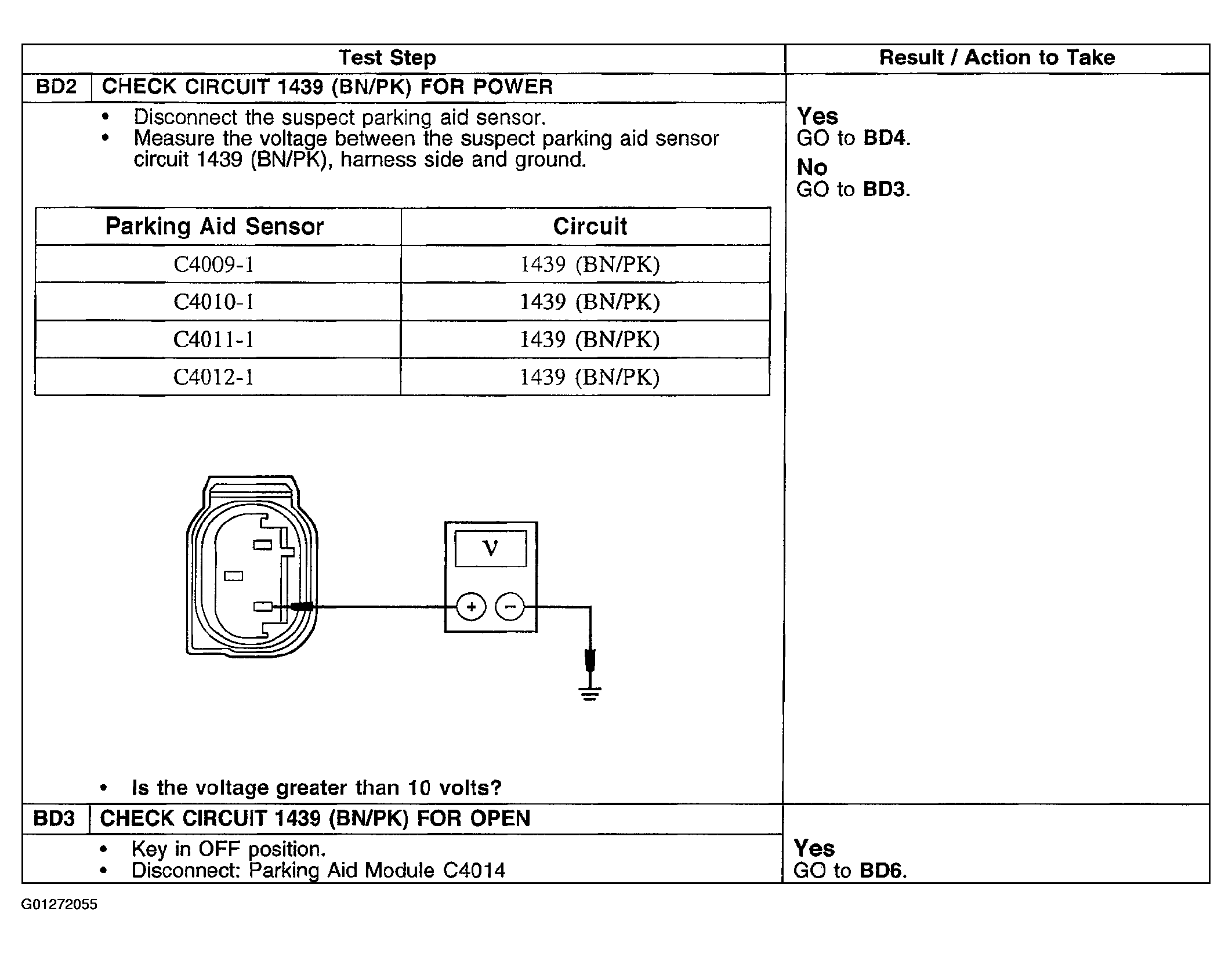

Fig 2: Pinpoint Test BD: Parking Aid Is Inoperative (BD2 - BD3)

Courtesy of FORD MOTOR CO.

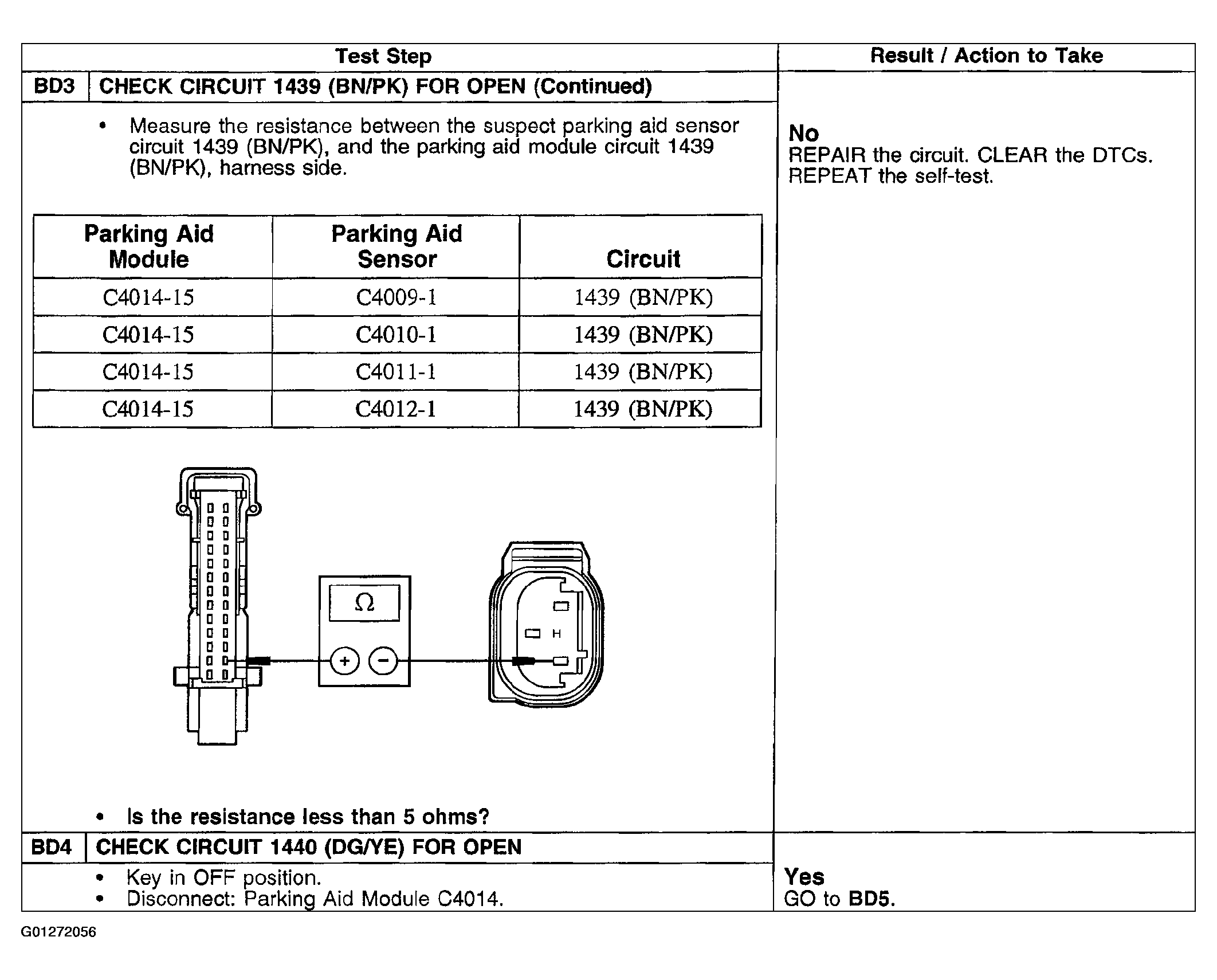

Fig 3: Pinpoint Test BD: Parking Aid Is Inoperative (BD3 - BD4)

Courtesy of FORD MOTOR CO.

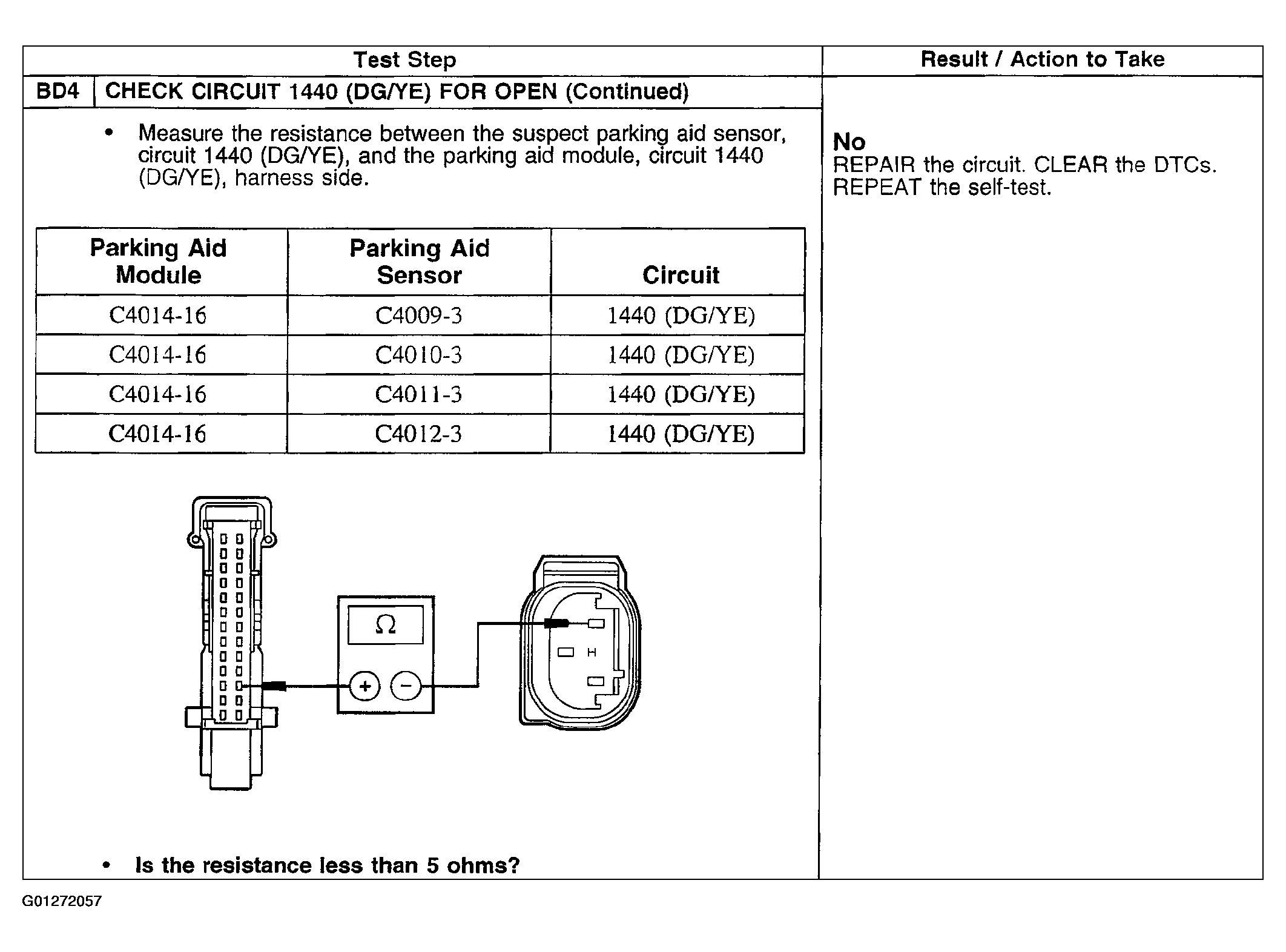

Fig 4: Pinpoint Test BD: Parking Aid Is Inoperative (BD4)

Courtesy of FORD MOTOR CO.

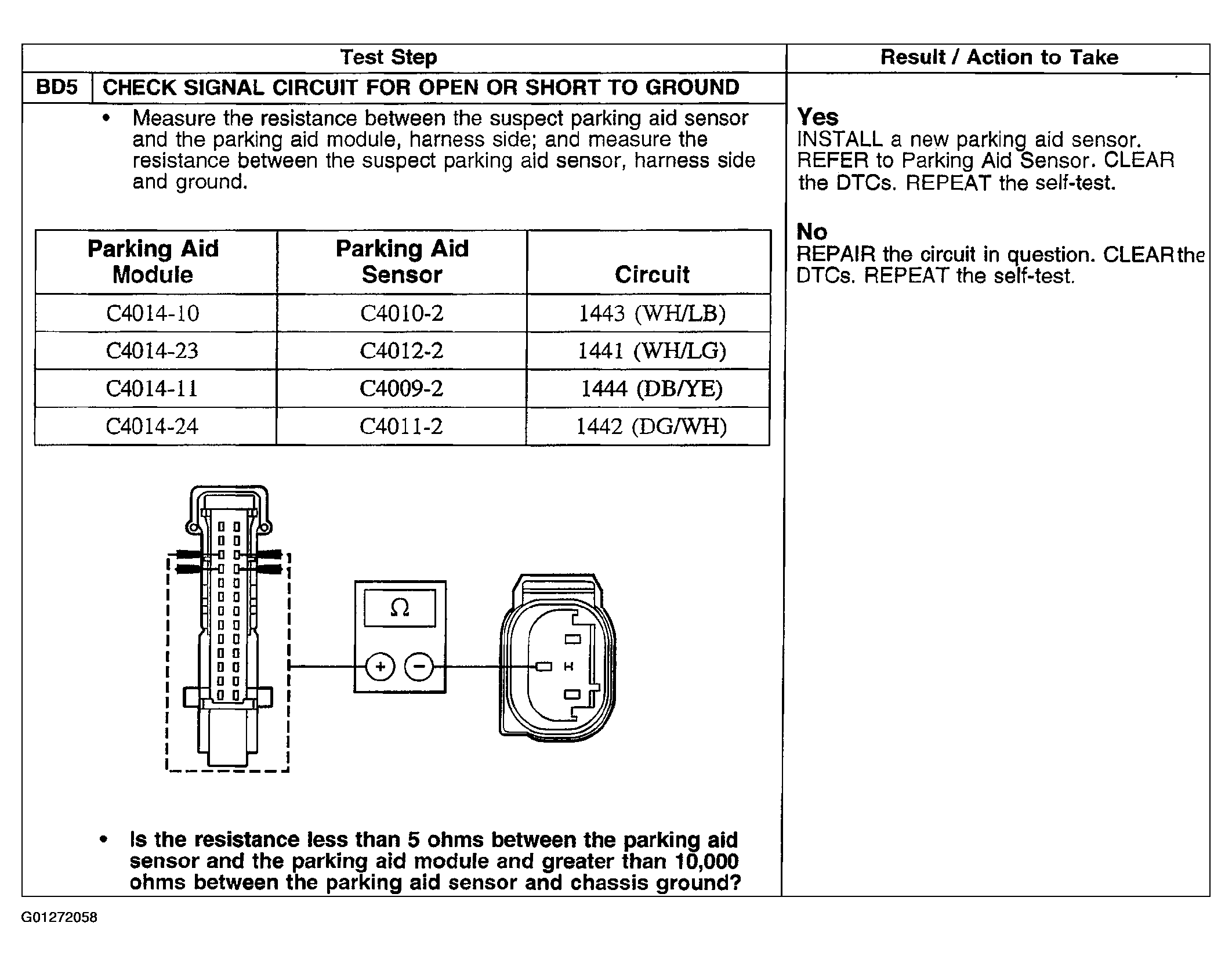

Fig 5: Pinpoint Test BD: Parking Aid Is Inoperative (BD5)

Courtesy of FORD MOTOR CO.

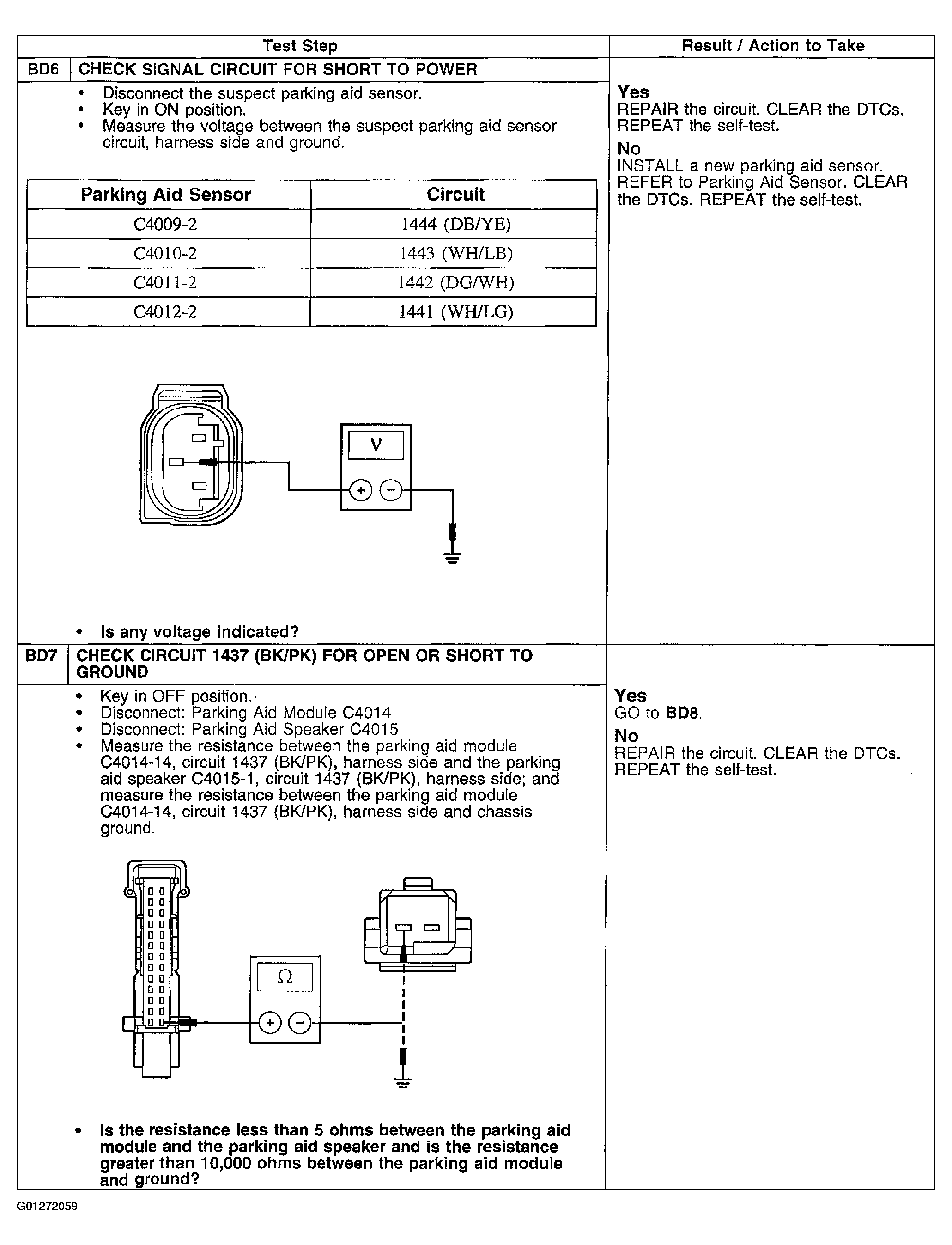

Fig 6: Pinpoint Test BD: Parking Aid Is Inoperative (BD6 - BD7)

Courtesy of FORD MOTOR CO.

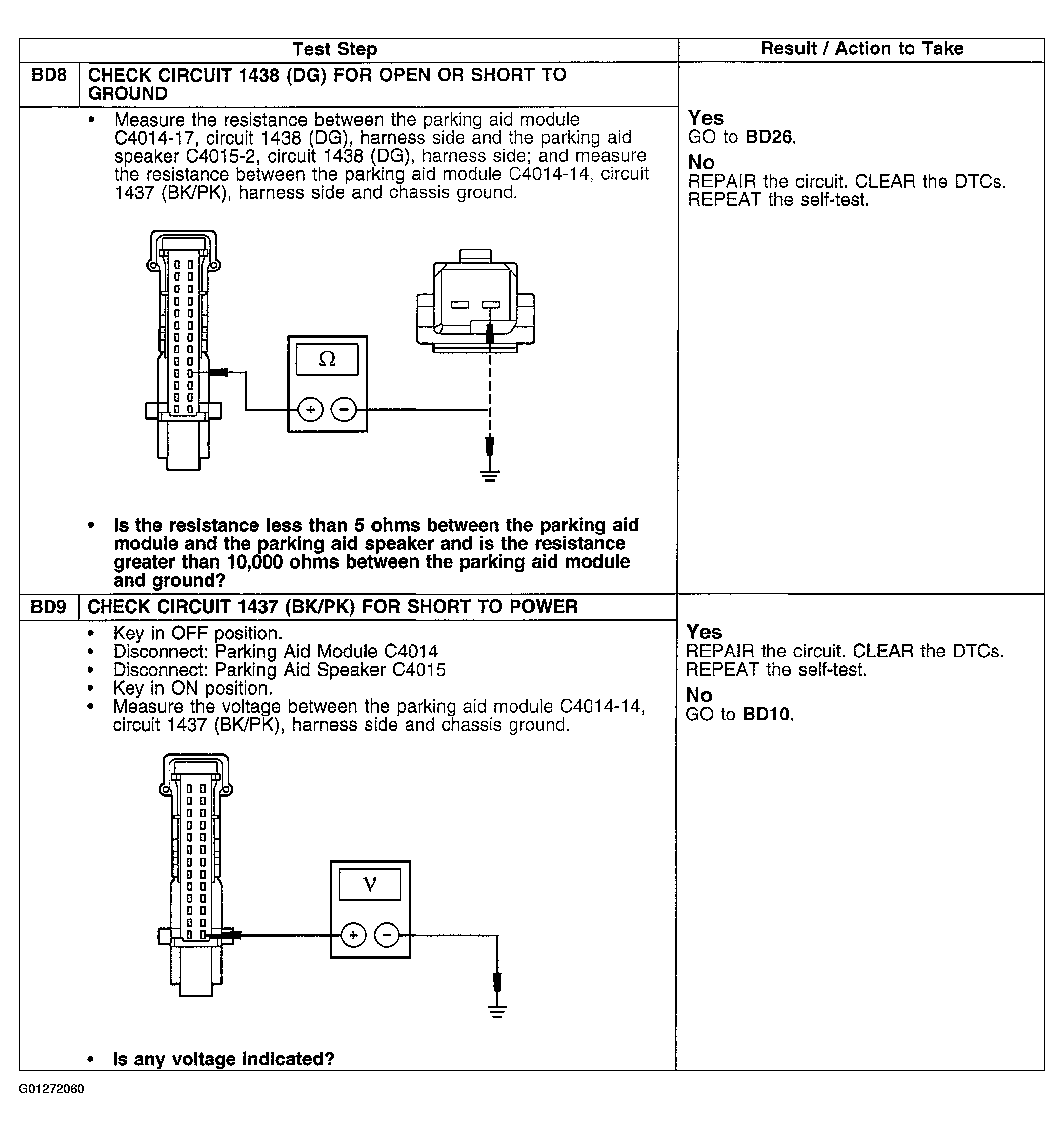

Fig 7: Pinpoint Test BD: Parking Aid Is Inoperative (BD8 - BD9)

Courtesy of FORD MOTOR CO.

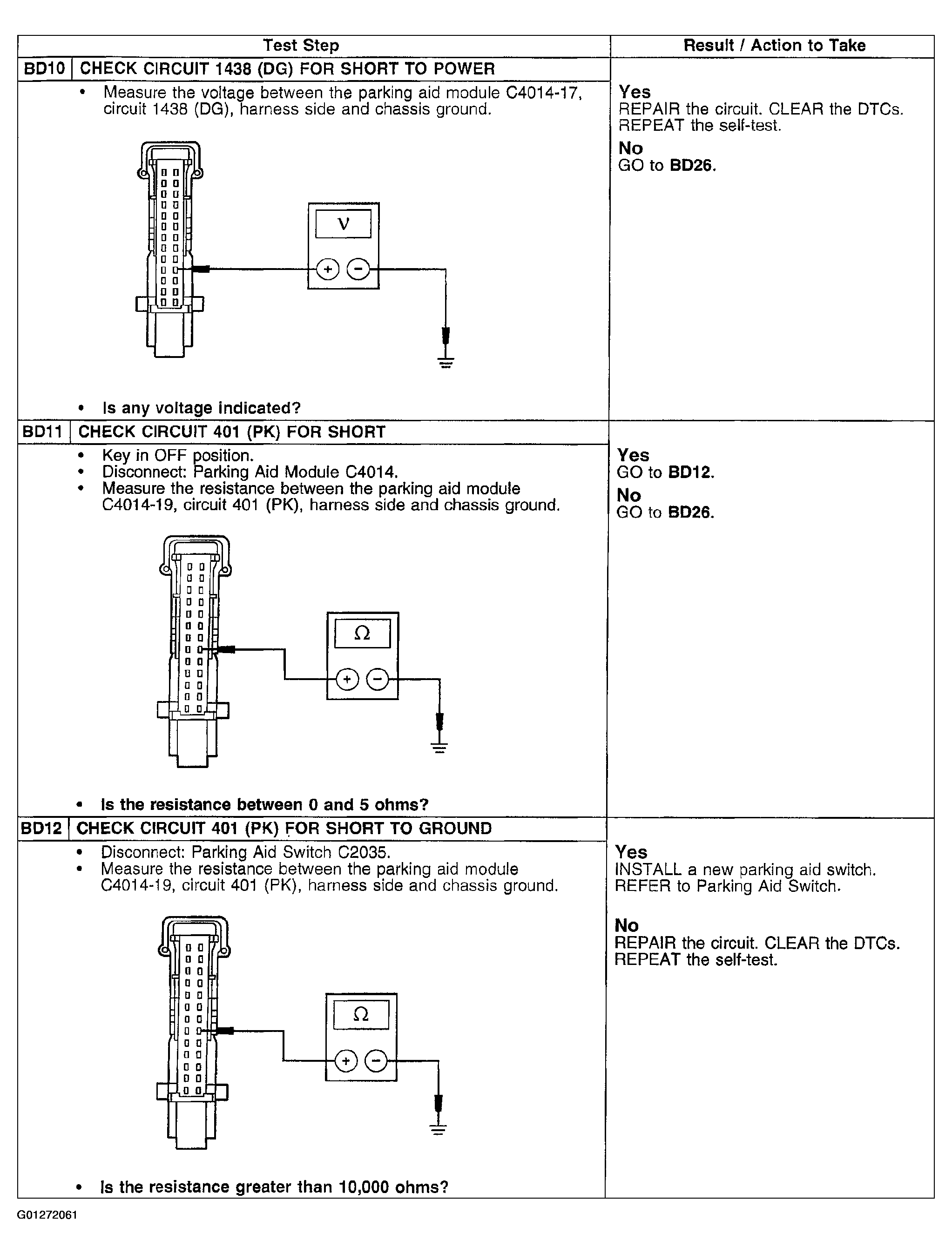

Fig 8: Pinpoint Test BD: Parking Aid Is Inoperative (BD10 - BD12)

Courtesy of FORD MOTOR CO.

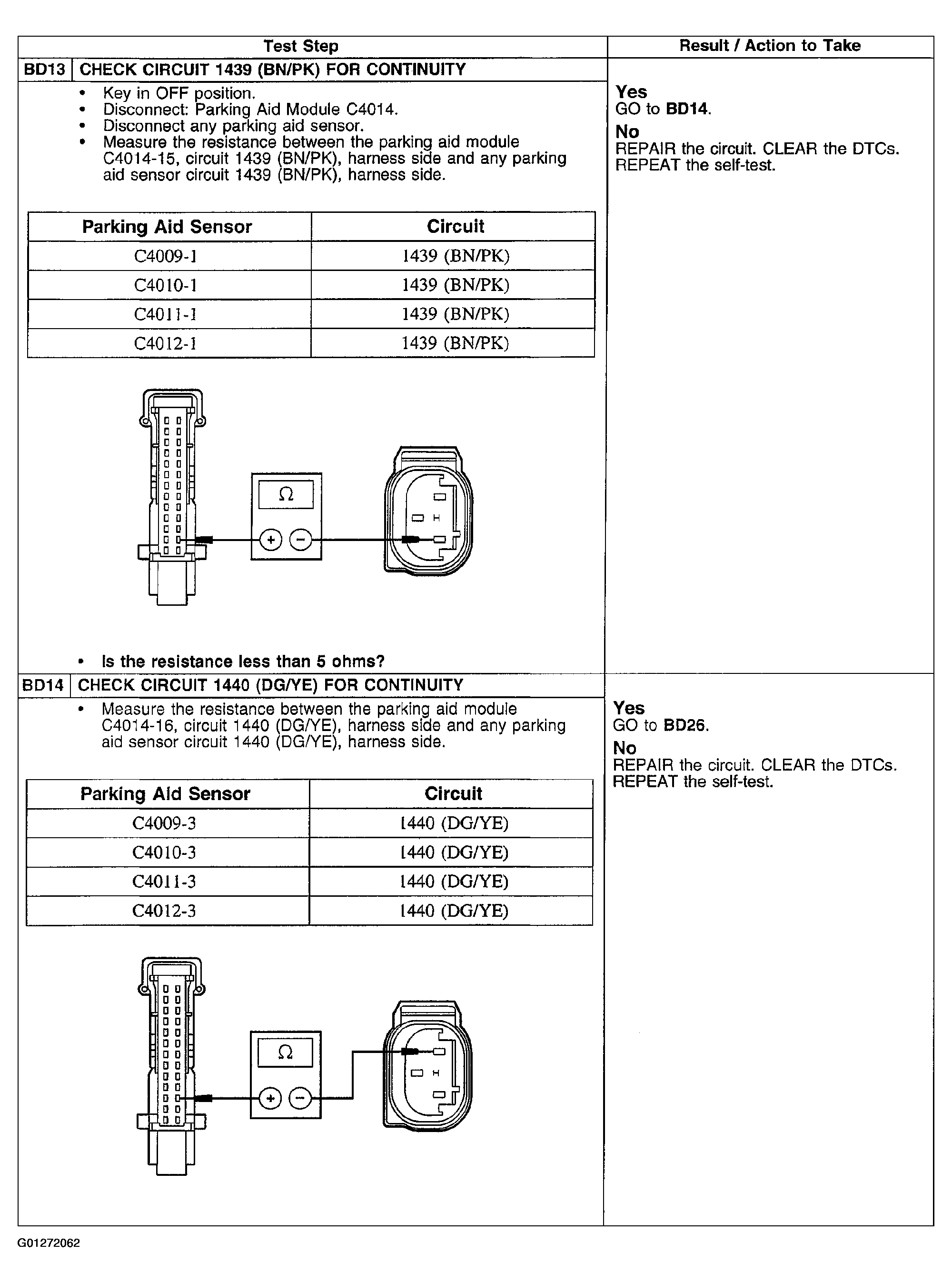

Fig 9: Pinpoint Test BD: Parking Aid Is Inoperative (BD13 - BD14)

Courtesy of FORD MOTOR CO.

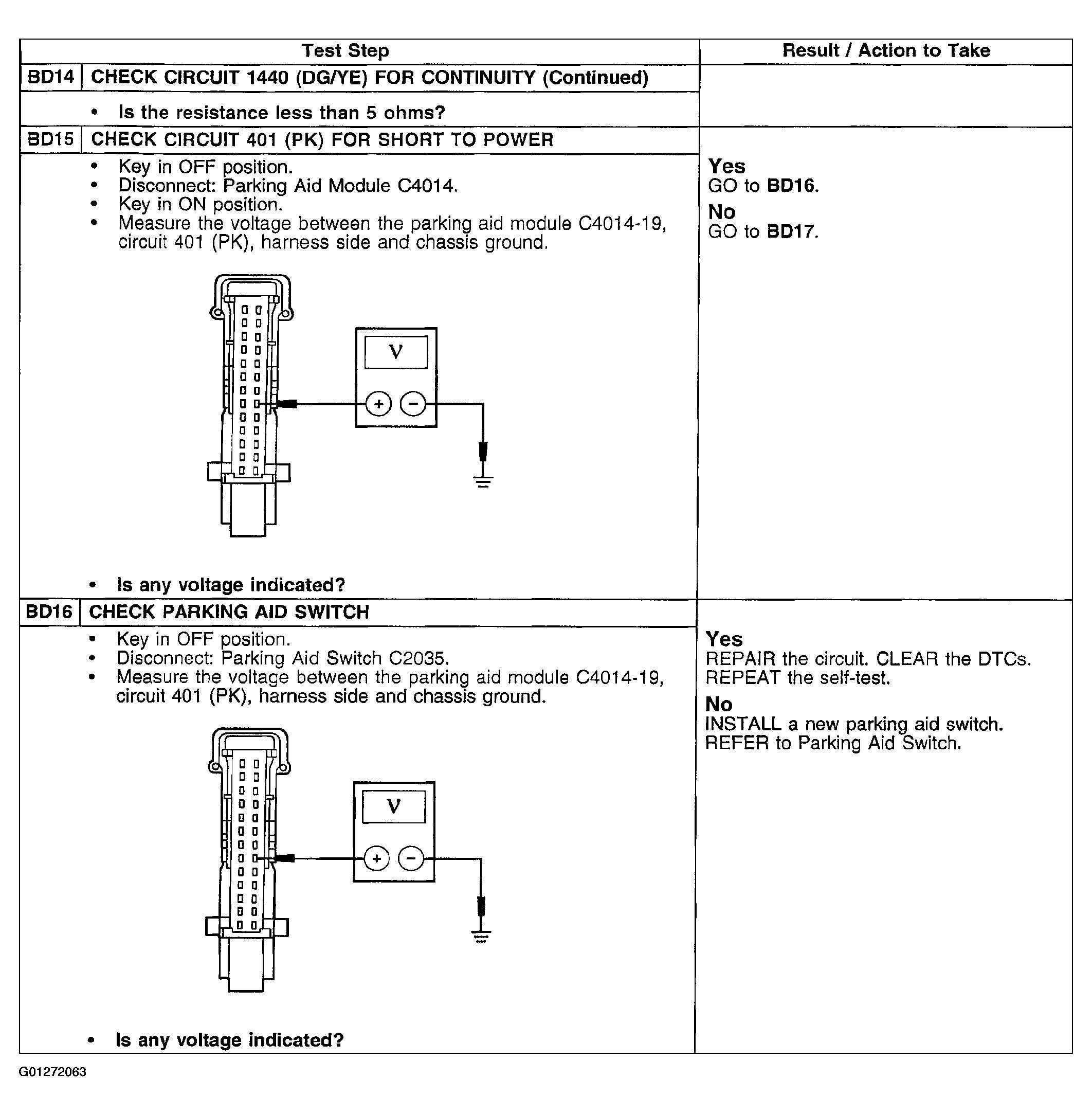

Fig 10: Pinpoint Test BD: Parking Aid Is Inoperative (BD14 - BD16)

Courtesy of FORD MOTOR CO.

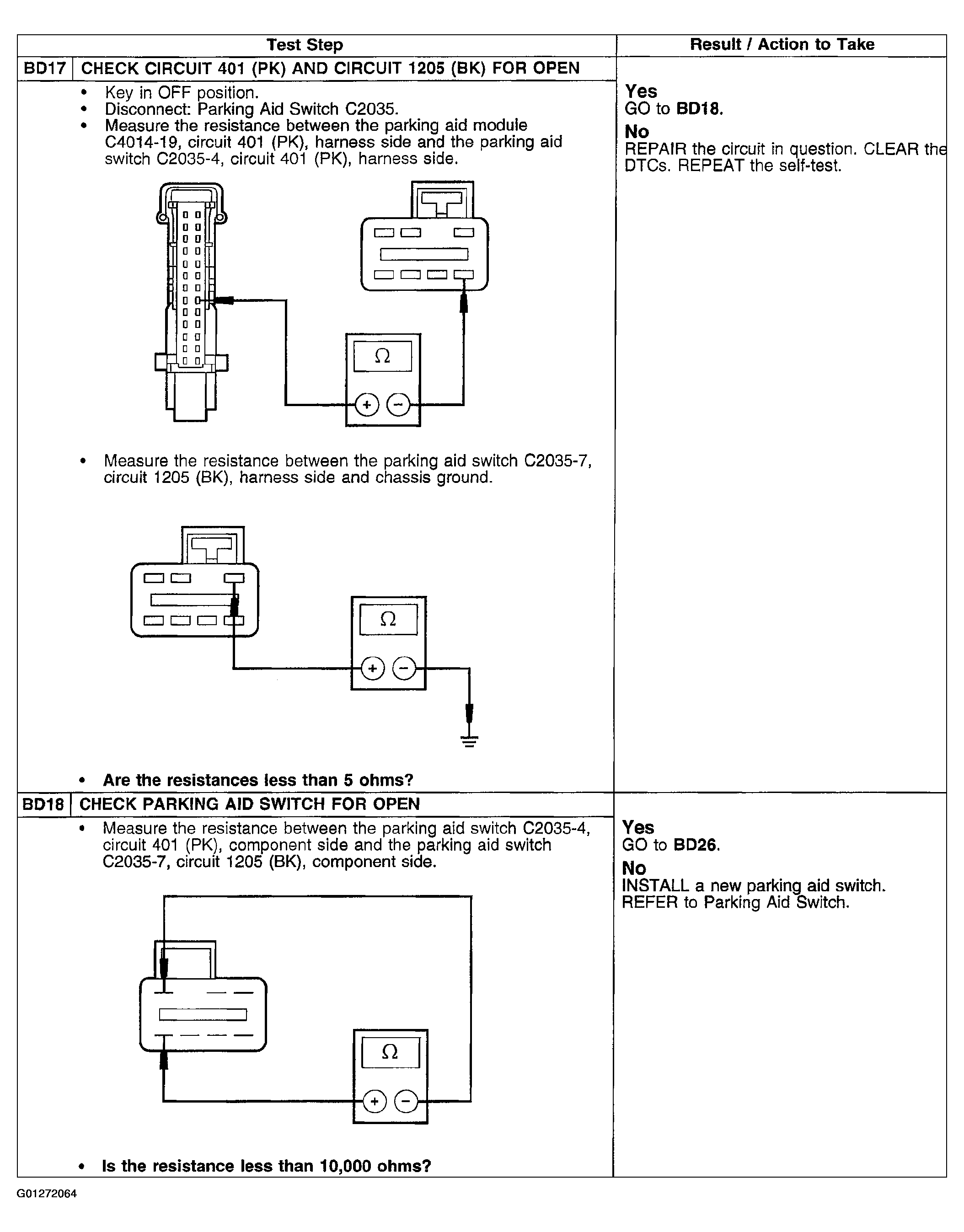

Fig 11: Pinpoint Test BD: Parking Aid Is Inoperative (BD17 - BD18)

Courtesy of FORD MOTOR CO.

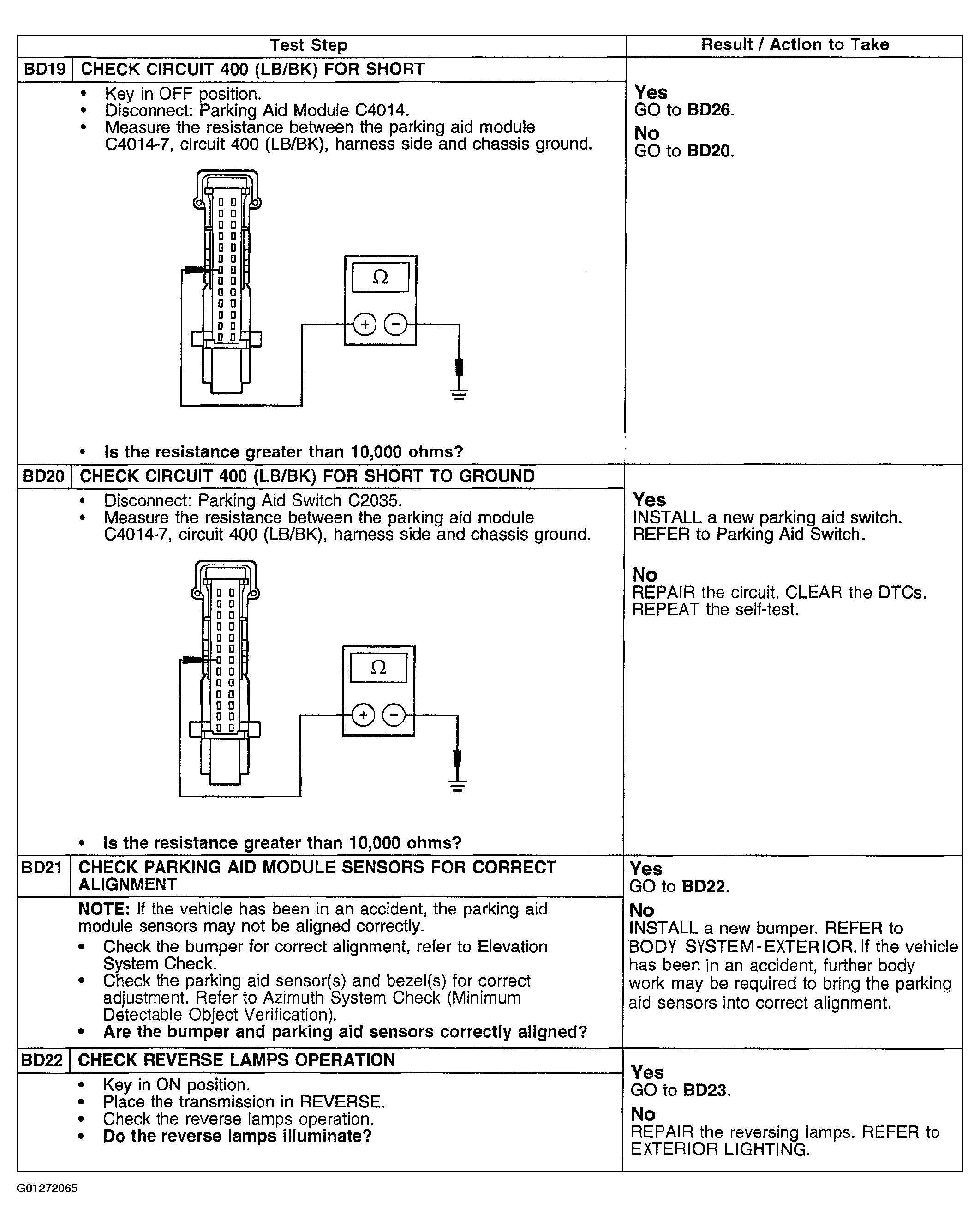

Fig 12: Pinpoint Test BD: Parking Aid Is Inoperative (BD19 - BD22)

Courtesy of FORD MOTOR CO.

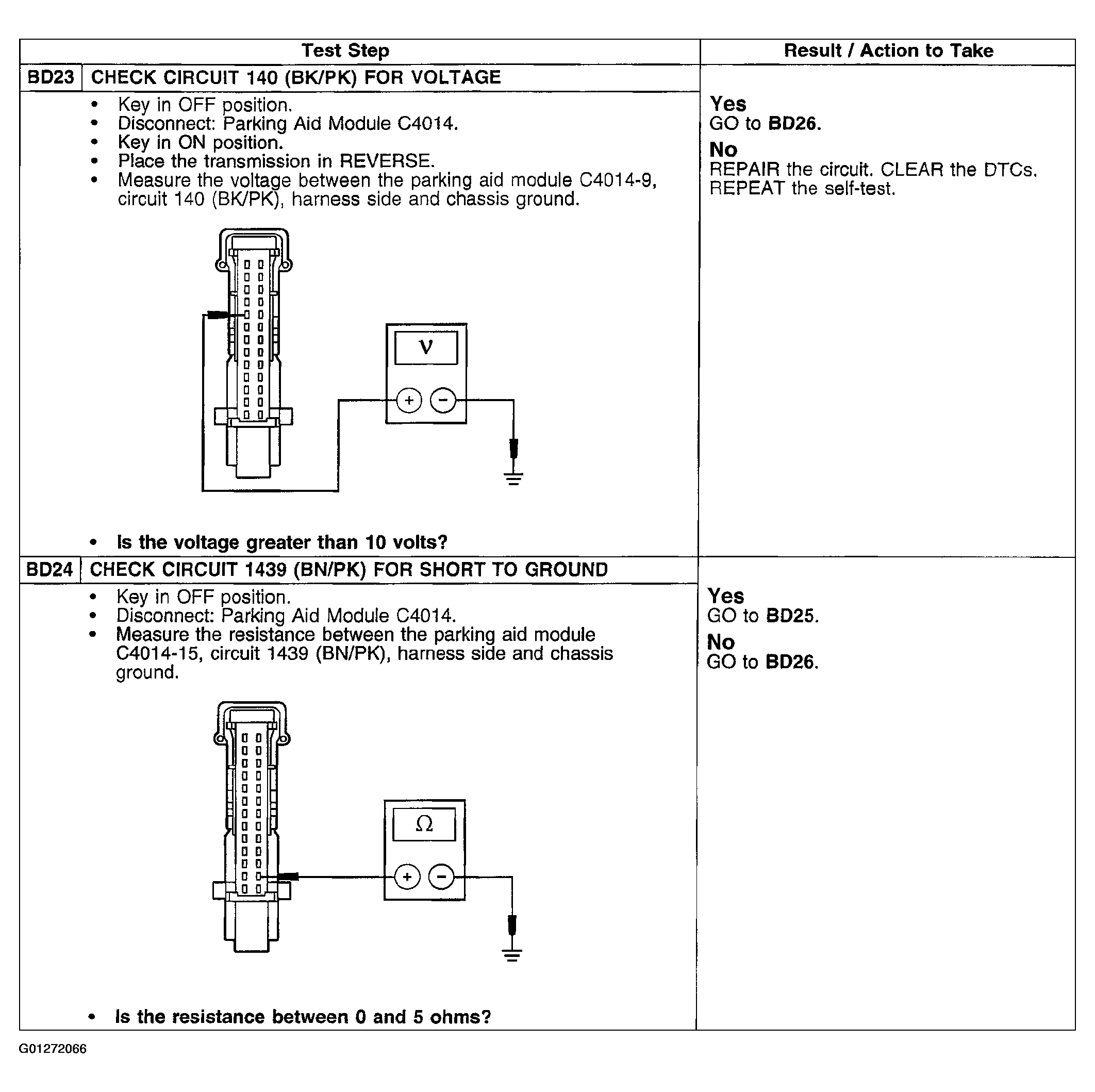

Fig 13: Pinpoint Test BD: Parking Aid Is Inoperative (BD23 - BD24)

Courtesy of FORD MOTOR CO.

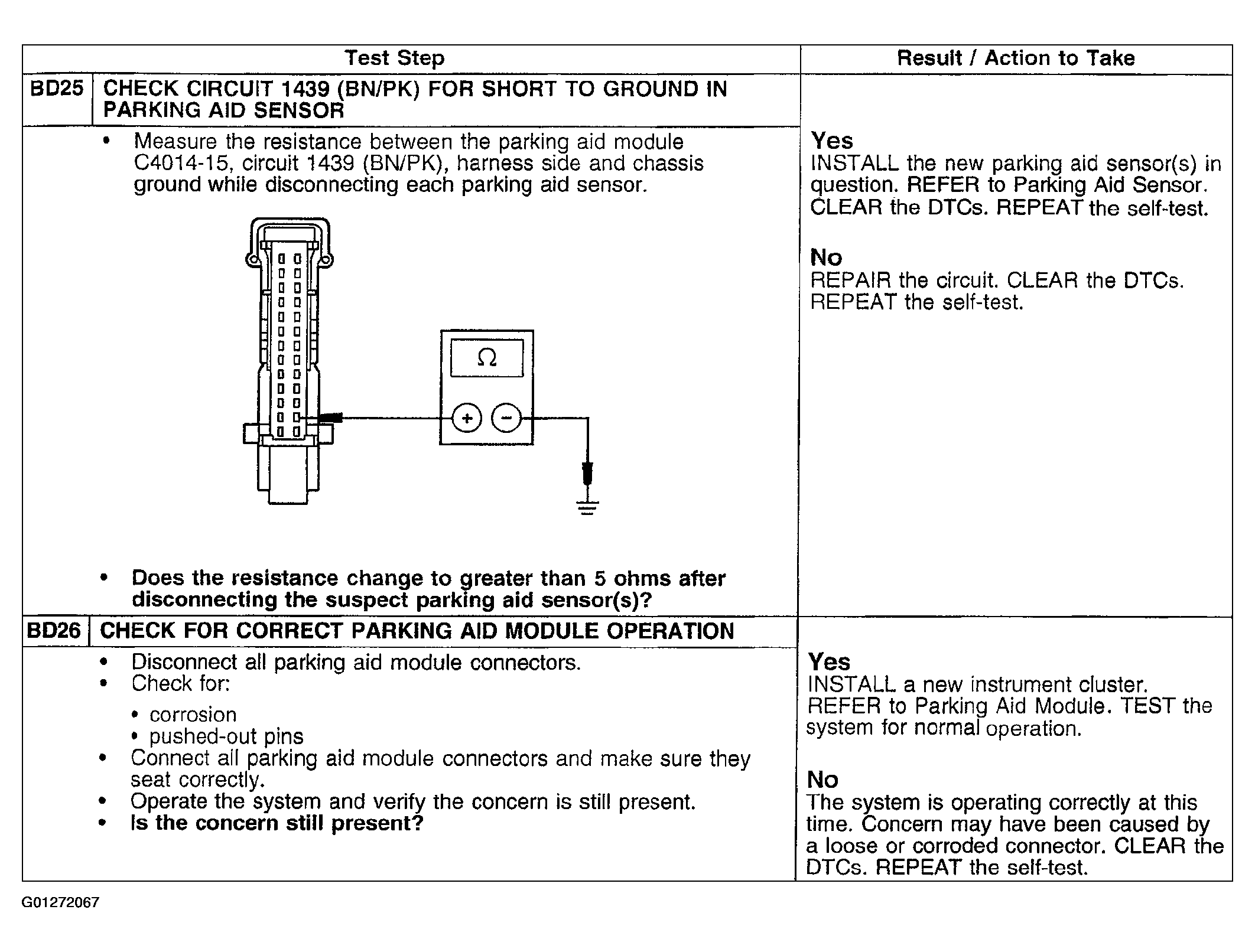

Fig 14: Pinpoint Test BD: Parking Aid Is Inoperative (BD25 - BD26)

Courtesy of FORD MOTOR CO.
