Pinpoint Test BC: No Communication With The Parking Aid Module: Testing

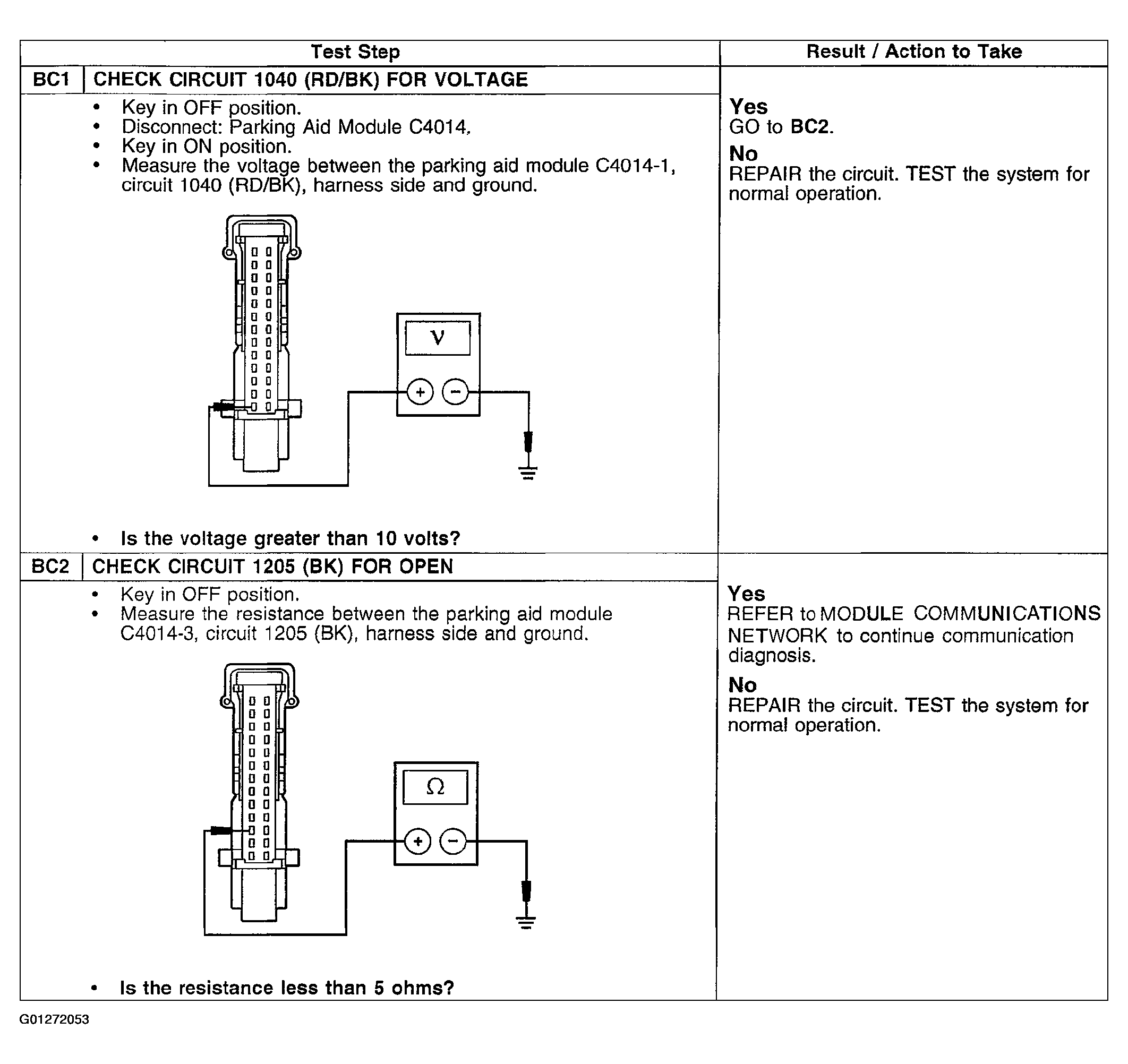

Fig 1: Pinpoint Test Bc: No Communication With Parking Aid Module (BC1 - BC2)

G01272053

Courtesy of FORD MOTOR CO.
