Parking Aid Module C4014

Fig 1: Identifying Parking Aid Module C4014 Terminal View
G01272047Courtesy of FORD MOTOR CO.

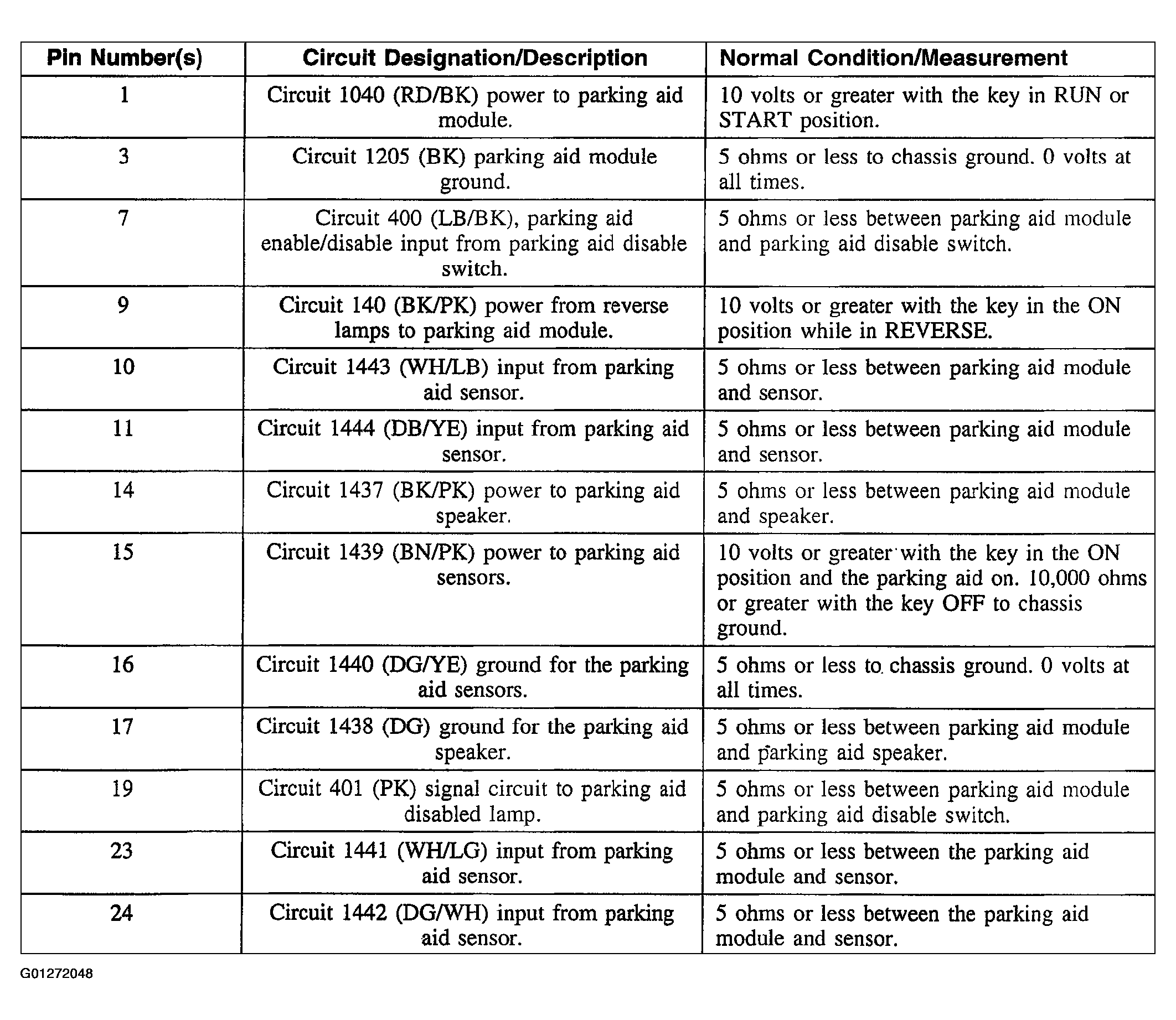

Fig 2: Identifying Connector Reference Chart
G01272048Courtesy of FORD MOTOR CO.
