Pinpoint Test L: The Speedometer/Odometer Is Inoperative: Testing

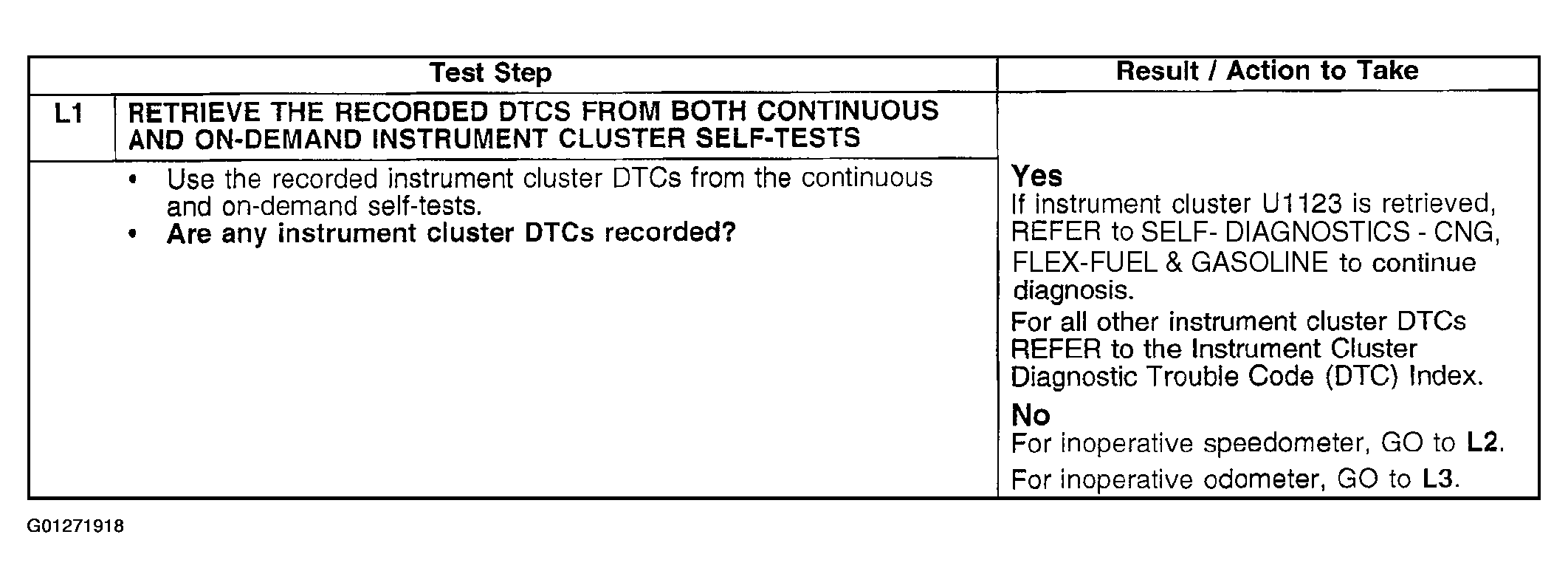

Fig 1: Pinpoint Test L: Speedometer/Odometer Is Inoperative (L1)
G01271918Courtesy of FORD MOTOR CO.

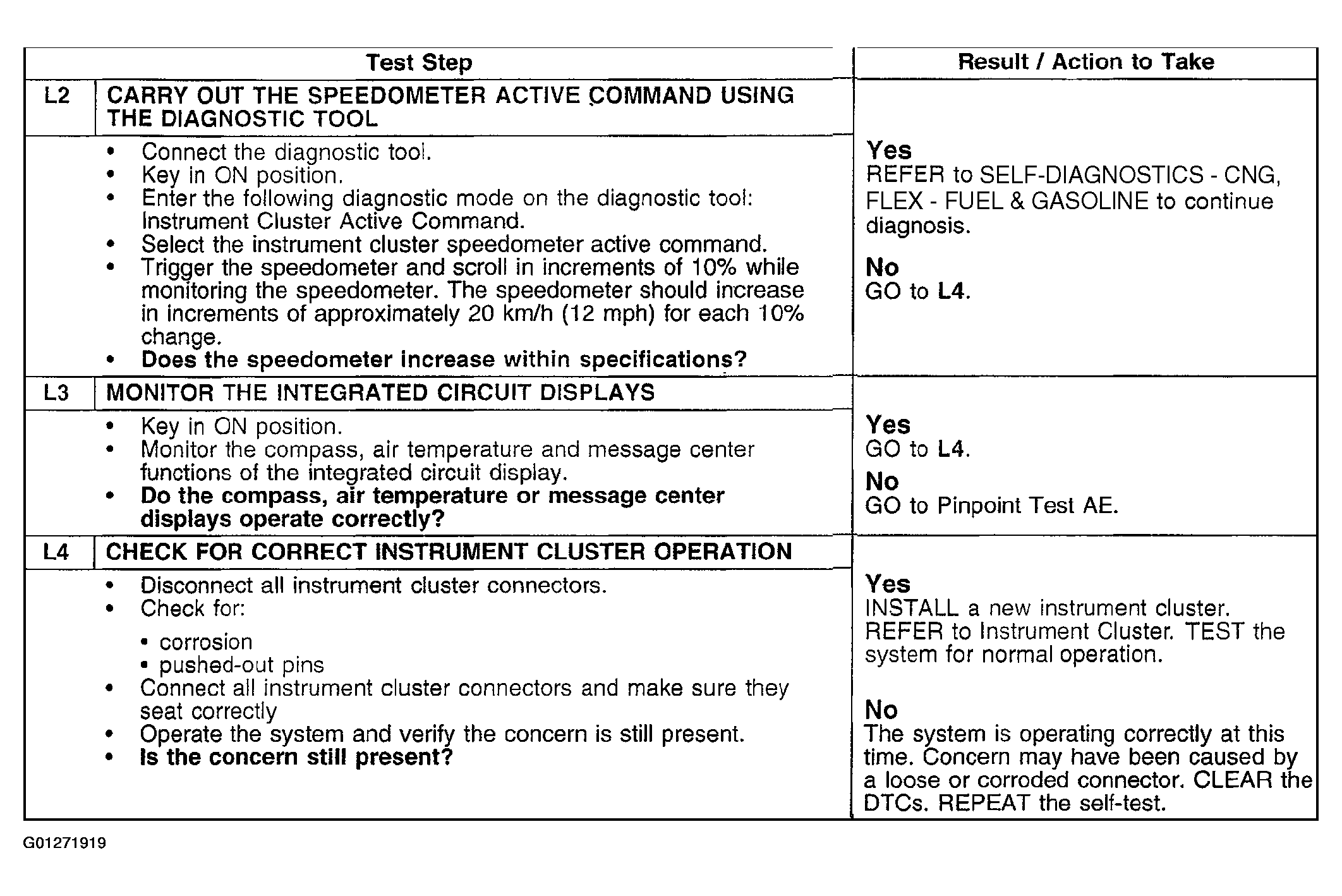

Fig 2: Pinpoint Test L: Speedometer/Odometer Is Inoperative (L2 - L4))
G01271919Courtesy of FORD MOTOR CO.
