Pinpoint Test G: No Communication With The Instrument Cluster: Testing

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

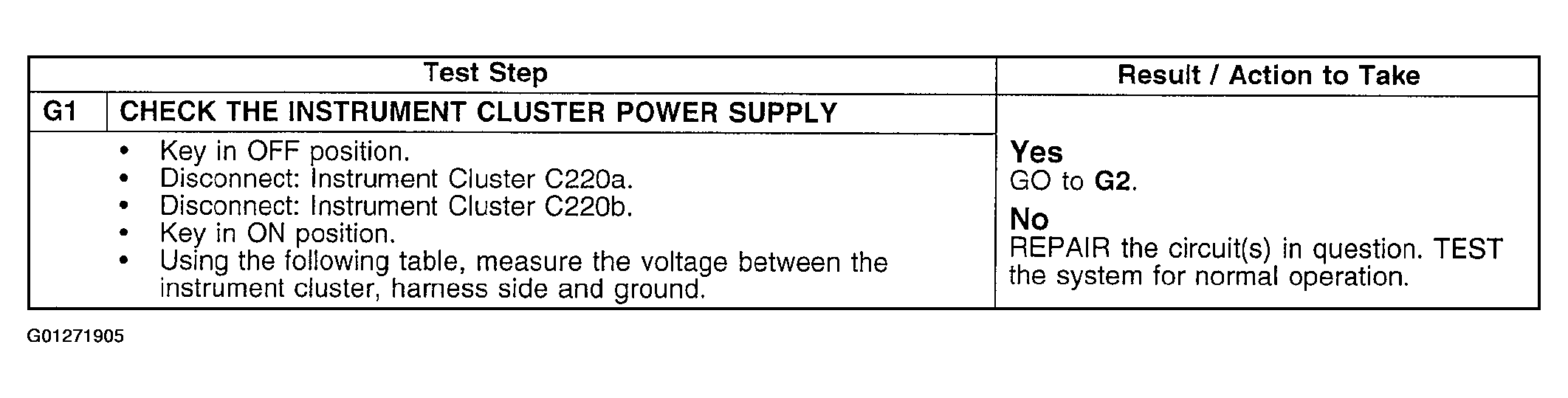

Fig 1: Pinpoint Test G: No Communication With Instrument Cluster (G1)
G01271905Courtesy of FORD MOTOR CO.

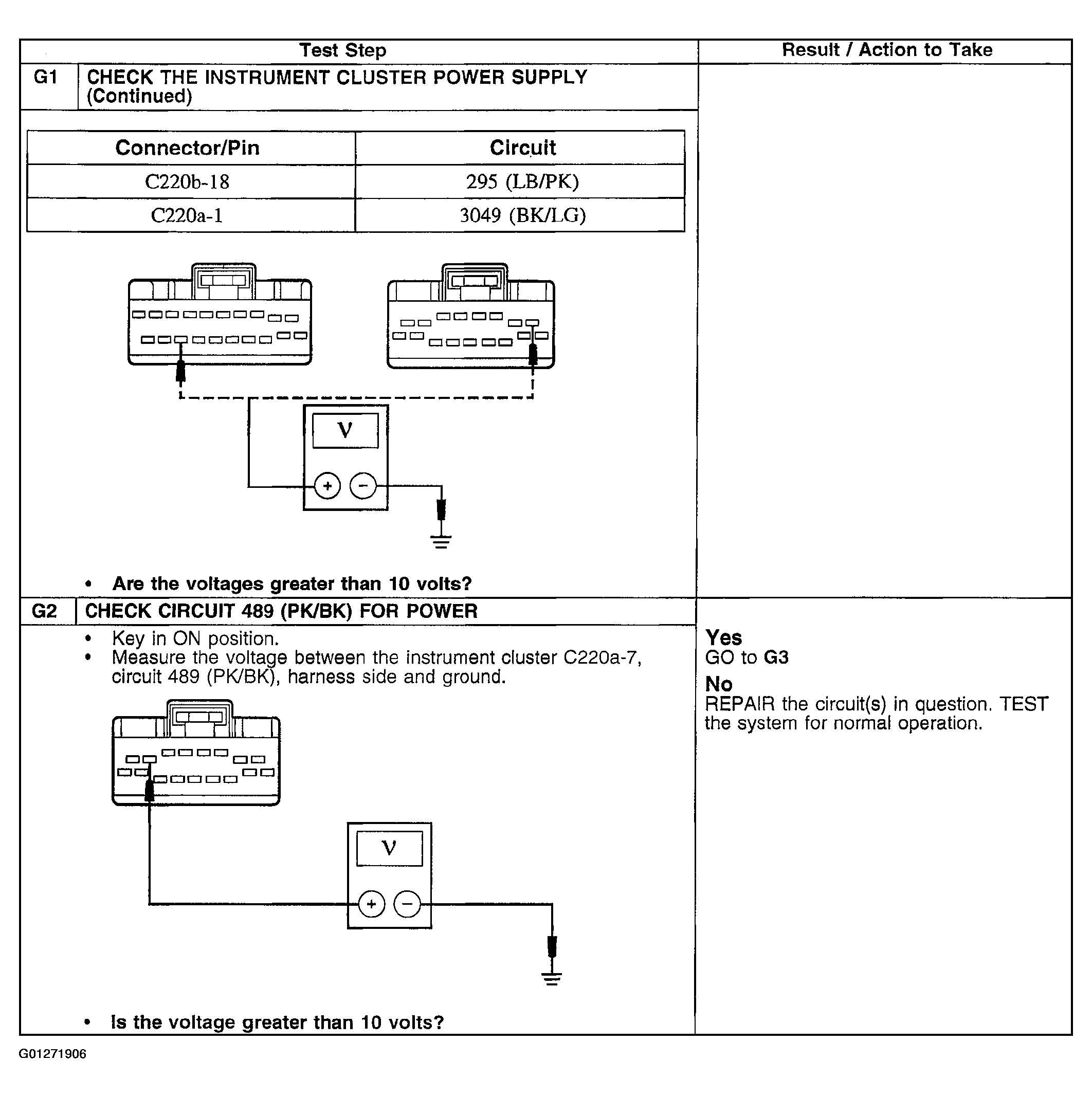

Fig 2: Pinpoint Test G: No Communication With Instrument Cluster (G1 - G2))
G01271906Courtesy of FORD MOTOR CO.

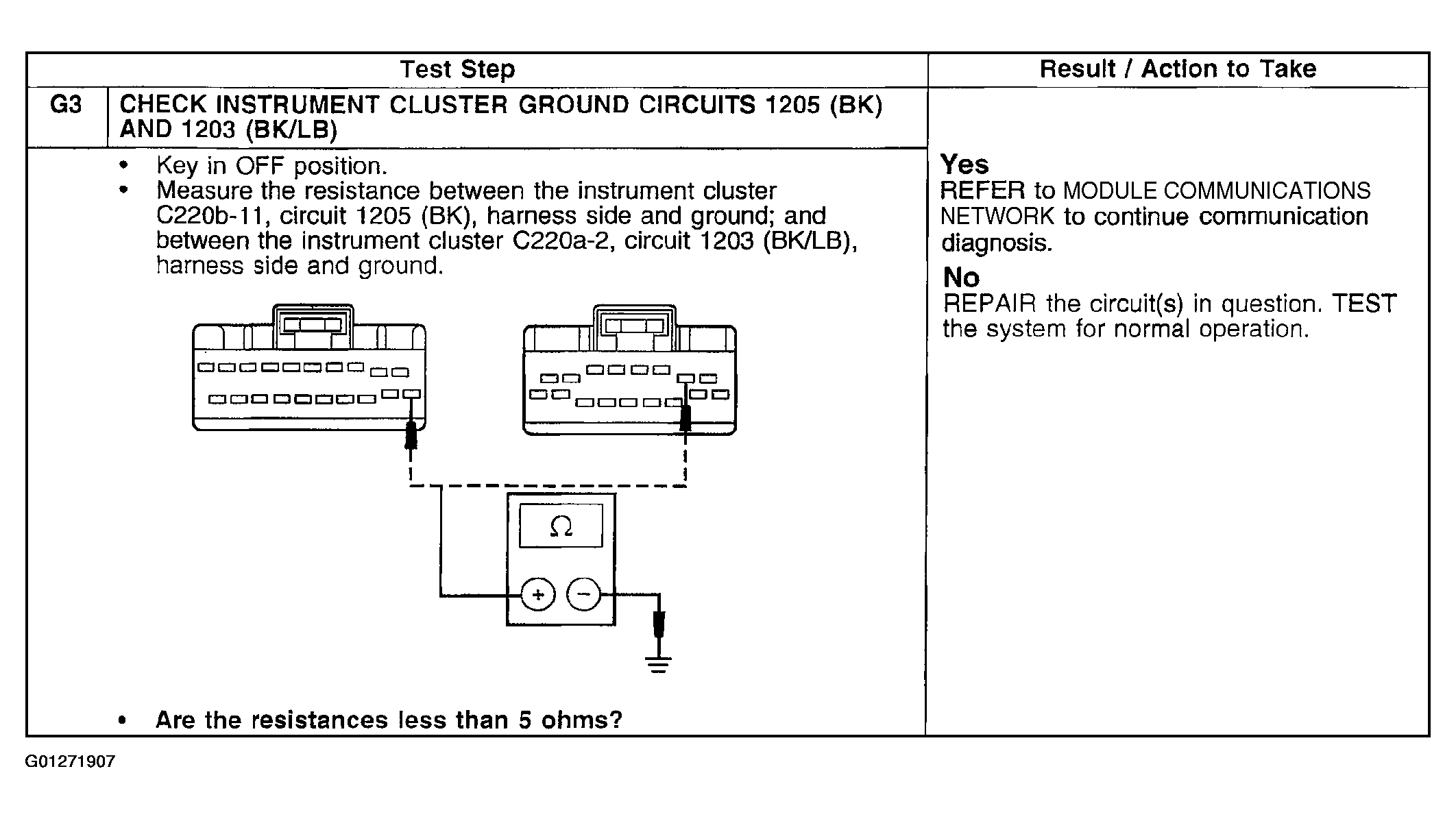

Fig 3: Pinpoint Test G: No Communication With Instrument Cluster (G3)
G01271907Courtesy of FORD MOTOR CO.
