Pinpoint Test AG: The Instrument Cluster Is Inoperative: Testing

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

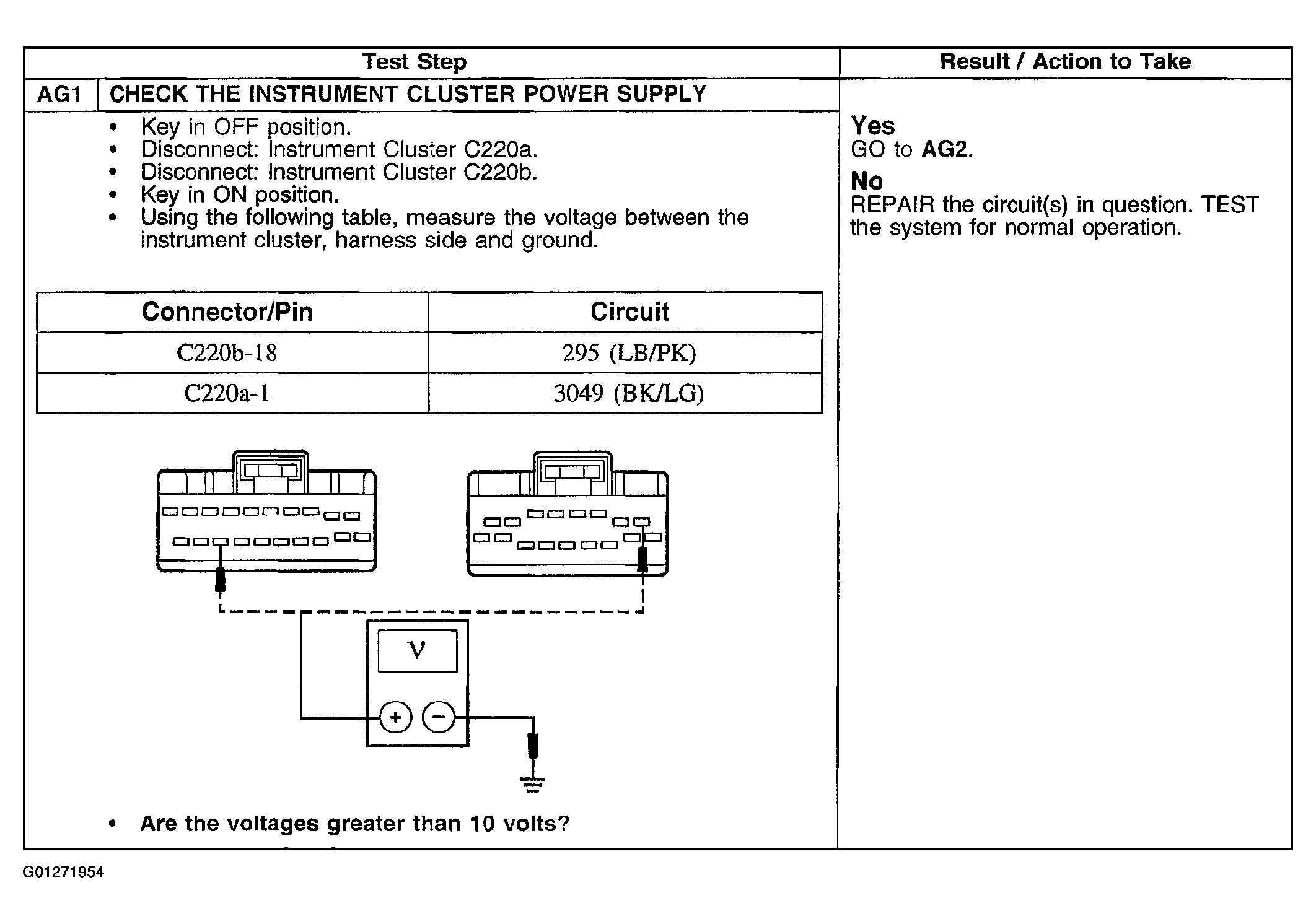

Fig 1: Pinpoint Test AG: Instrument Cluster Is Inoperative (AG1)
G01271954Courtesy of FORD MOTOR CO.

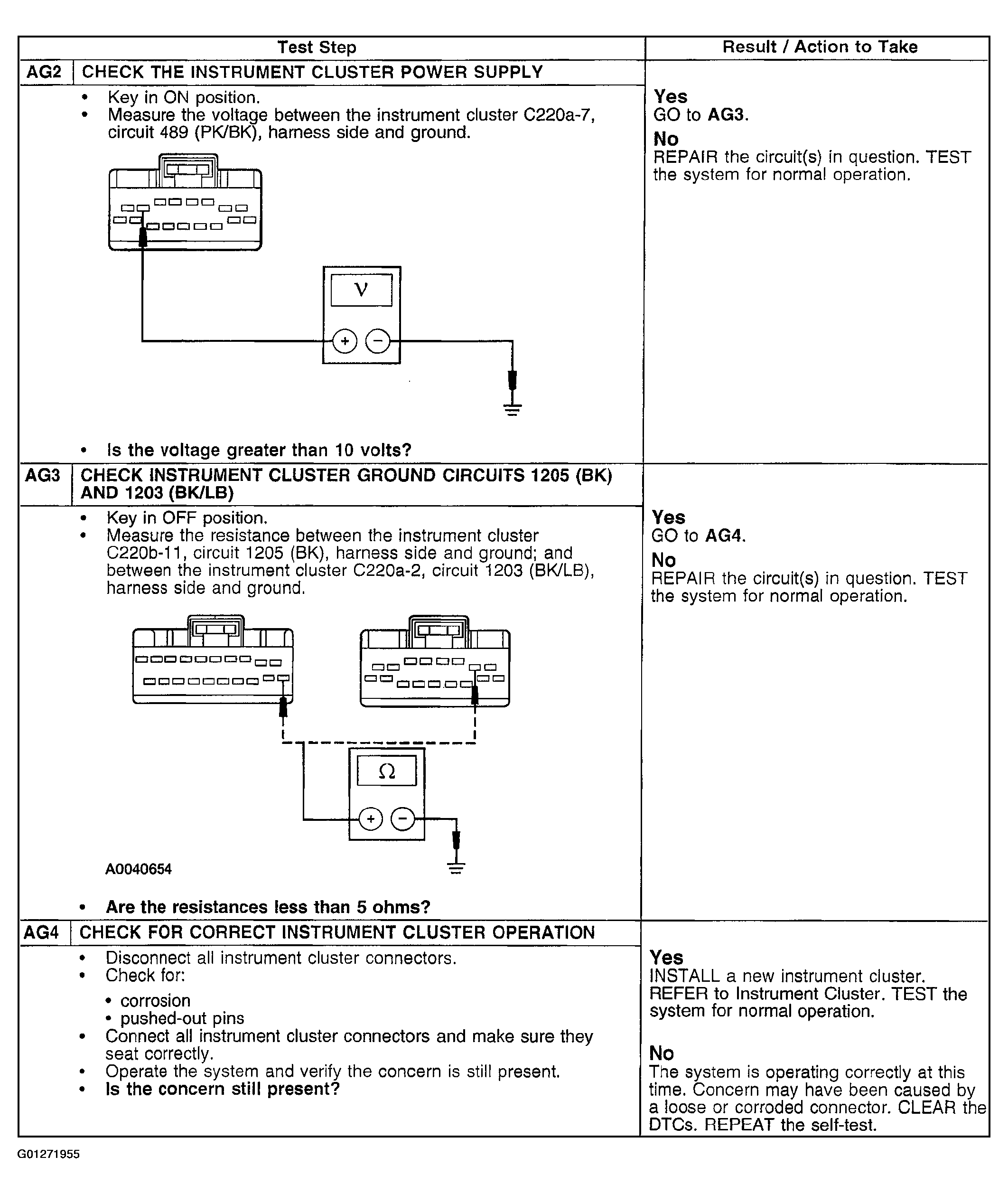

Fig 2: Pinpoint Test AG: Instrument Cluster Is Inoperative (AG2 - AG4)
G01271955Courtesy of FORD MOTOR CO.
