Pinpoint Test AF: The Integrated Circuit Display Is Inoperative: Testing

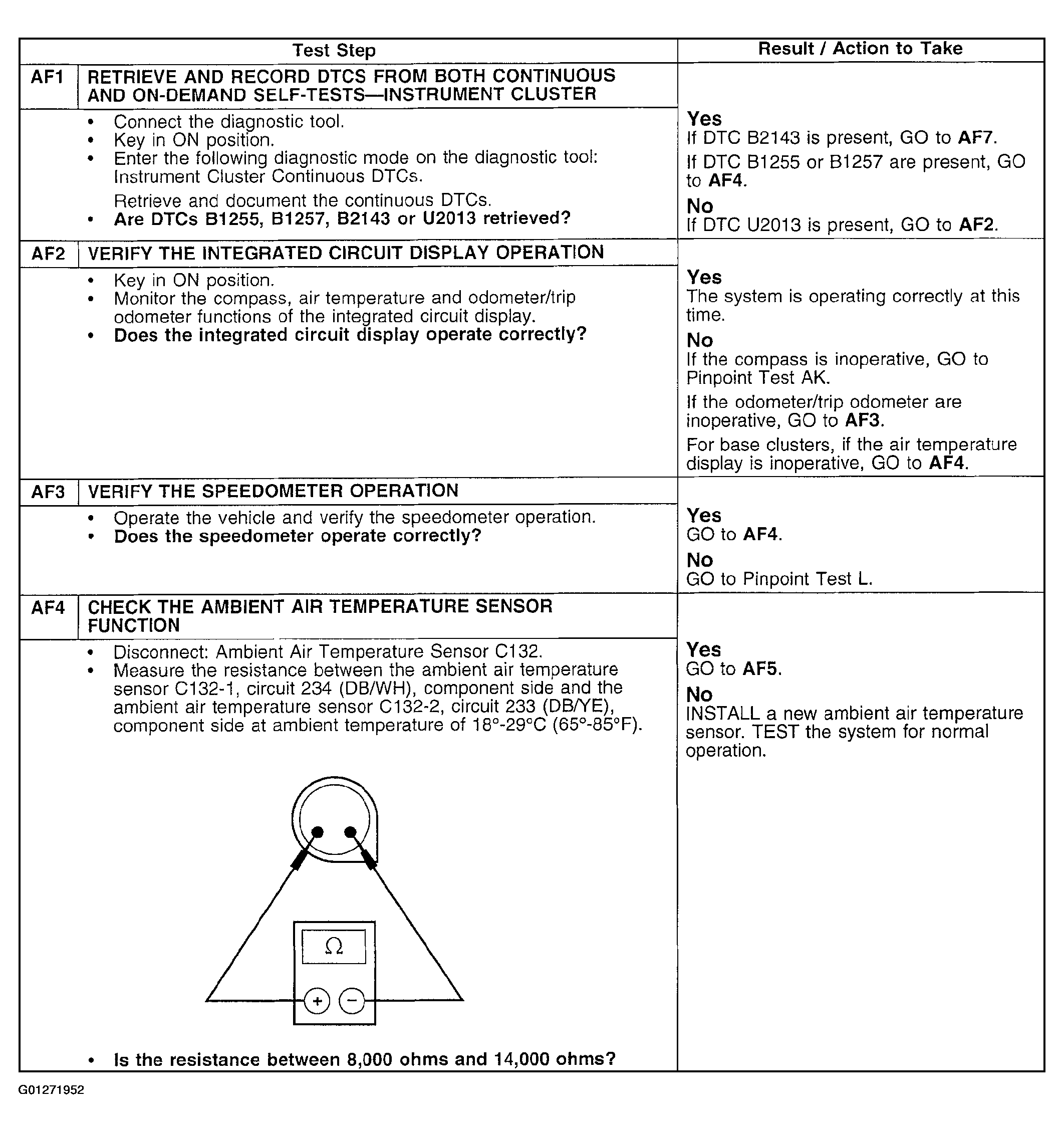

Fig 1: Pinpoint Test AF: Integrated Circuit Display Is Inoperative (AF1 - AF4)
G01271952Courtesy of FORD MOTOR CO.

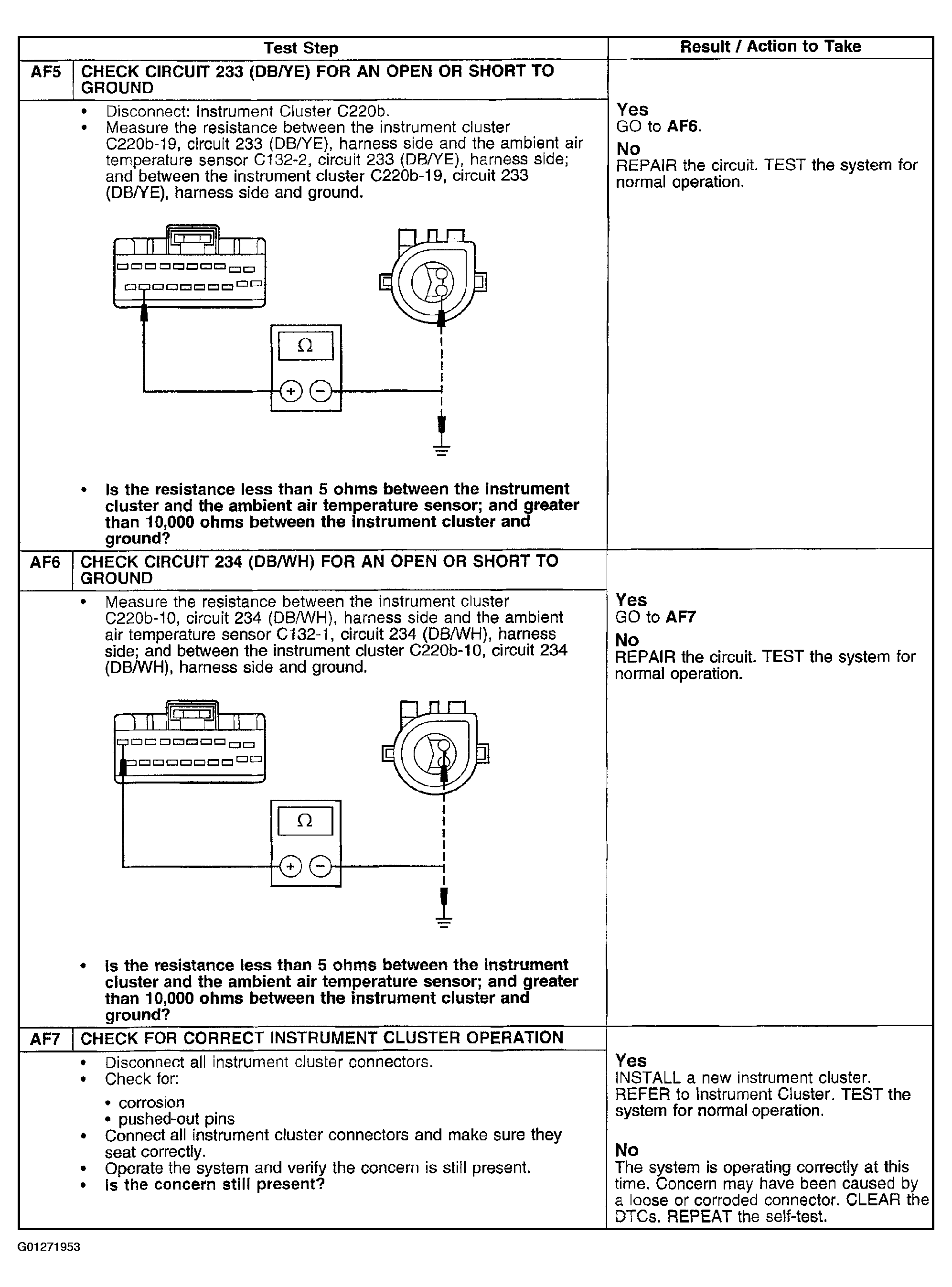

Fig 2: Pinpoint Test AF: Integrated Circuit Display Is Inoperative (AF5 - AF7)
G01271953Courtesy of FORD MOTOR CO.
