PINPOINT TEST M: The Tachometer is Inoperative: Testing

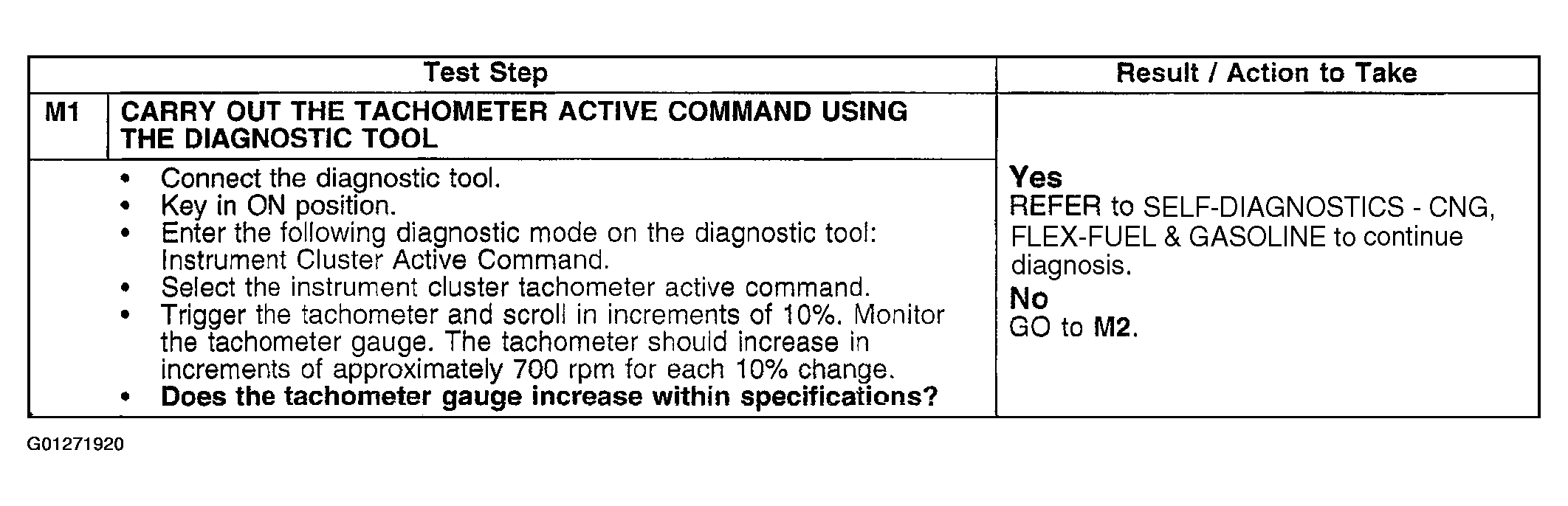

Fig 1: Pinpoint Test M: Tachometer Is Inoperative (M1)
G01271920Courtesy of FORD MOTOR CO.

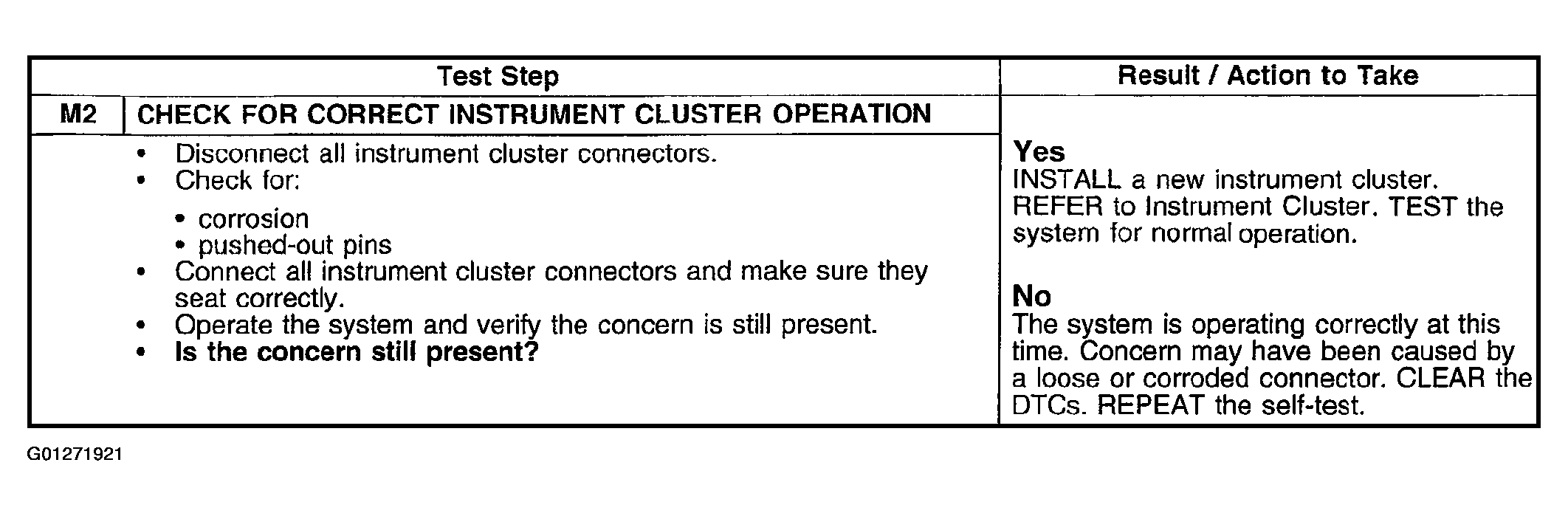

Fig 2: Pinpoint Test M: Tachometer Is Inoperative (M2)
G01271921Courtesy of FORD MOTOR CO.
