Parking Brake Switch C2015

Fig 1: Identifying Parking Brake Switch C2015 Terminal View
G01271901Courtesy of FORD MOTOR CO.

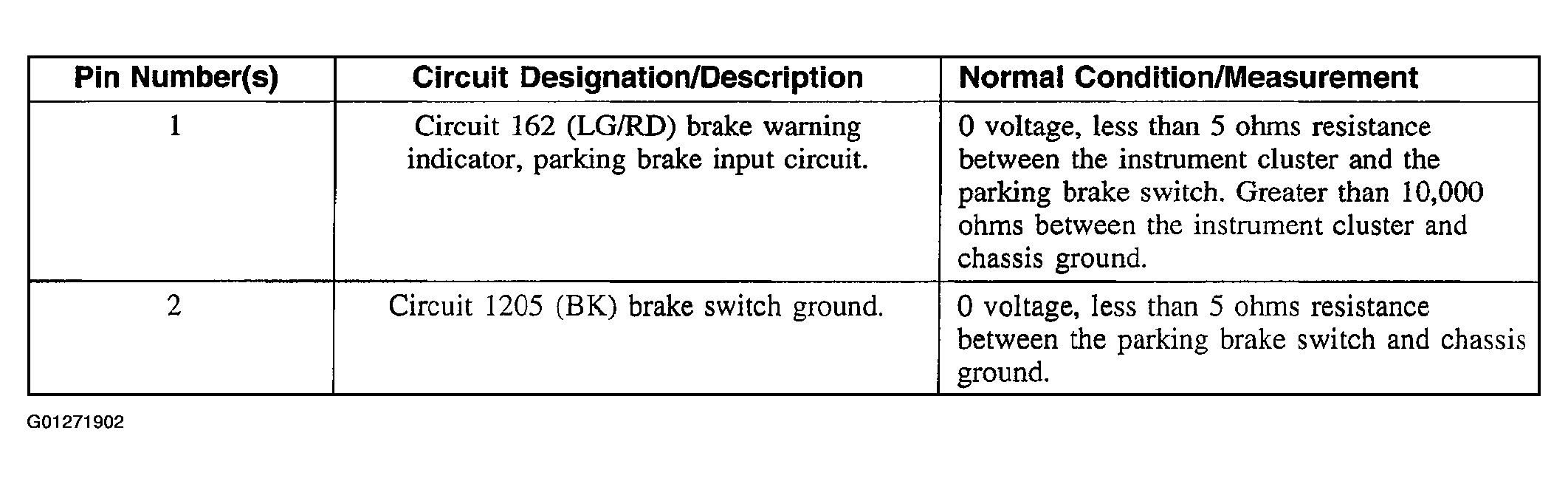

Fig 2: Identifying Connector Pin Reference Chart
G01271902Courtesy of FORD MOTOR CO.
