Fuel Pump Module C433

Fig 1: Identifying Fuel Pump Module C433 Terminal View
G01326307Courtesy of FORD MOTOR CO.

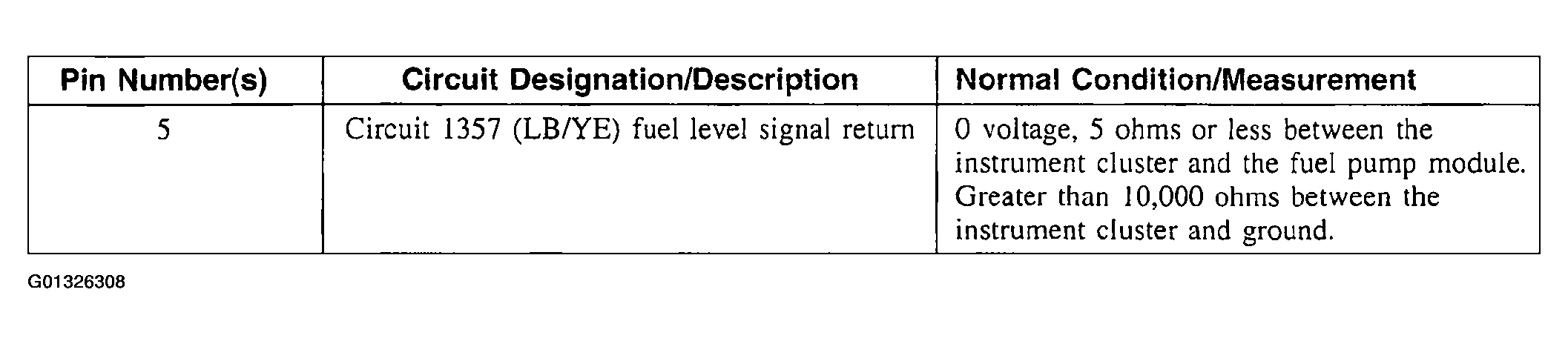

Fig 2: Identifying Connector Pin Reference Chart (1 Of 2)
G01326308Courtesy of FORD MOTOR CO.

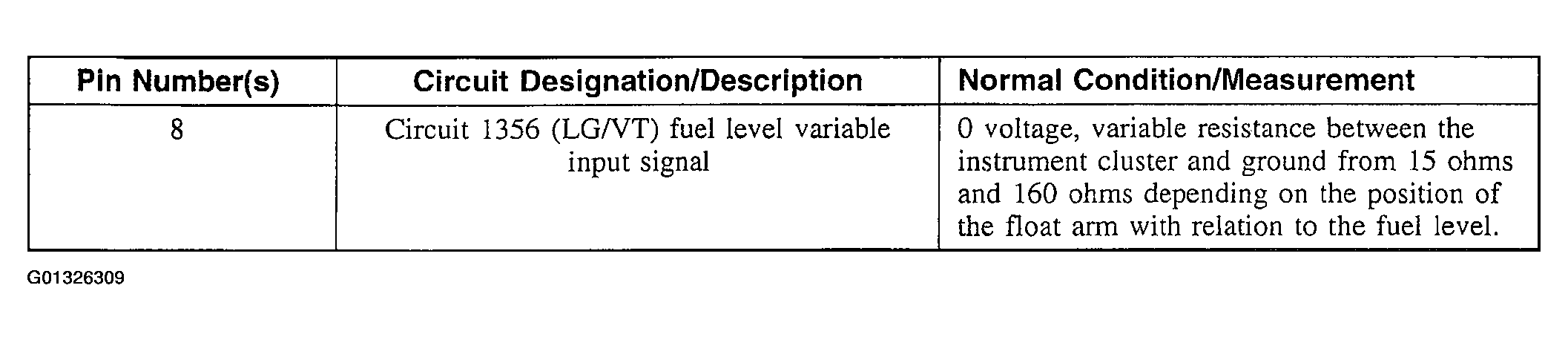

Fig 3: Identifying Connector Pin Reference Chart (2 Of 2)
G01326309Courtesy of FORD MOTOR CO.
