Fuel Pump Module C4033

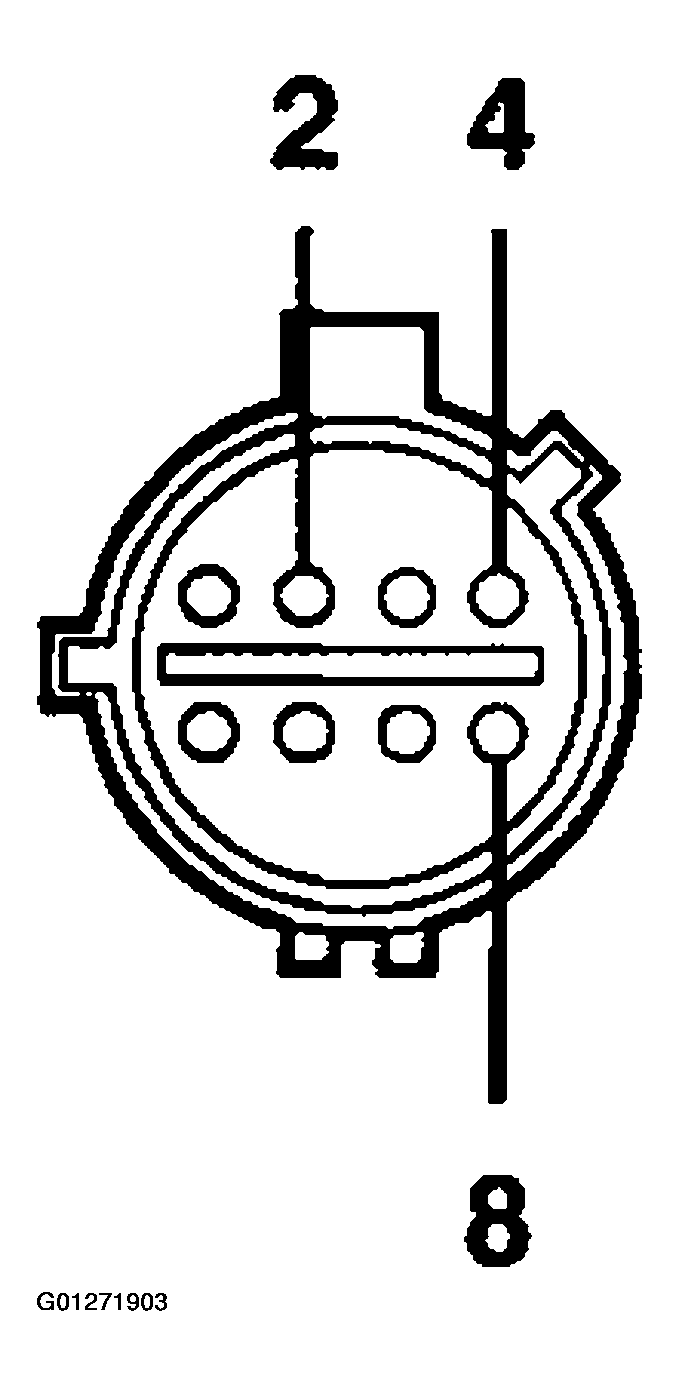

Fig 1: Identifying Fuel Pump Module C4033 Terminal View
G01271903Courtesy of FORD MOTOR CO.

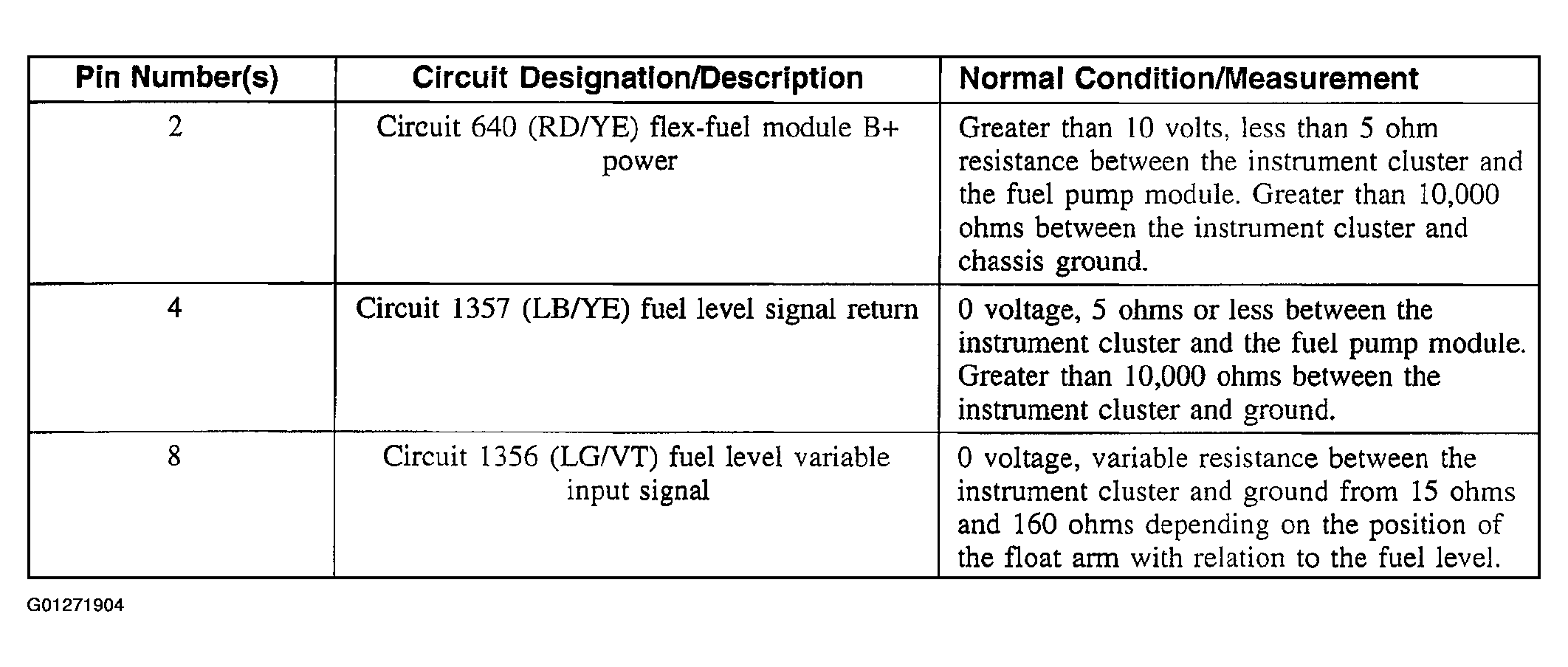

Fig 2: Identifying Connector Pin Reference Chart
G01271904Courtesy of FORD MOTOR CO.
