Engine Oil Pressure Switch C103

Fig 1: Identifying Engine Oil Pressure Switch C103 Terminal View
G01271884Courtesy of FORD MOTOR CO.

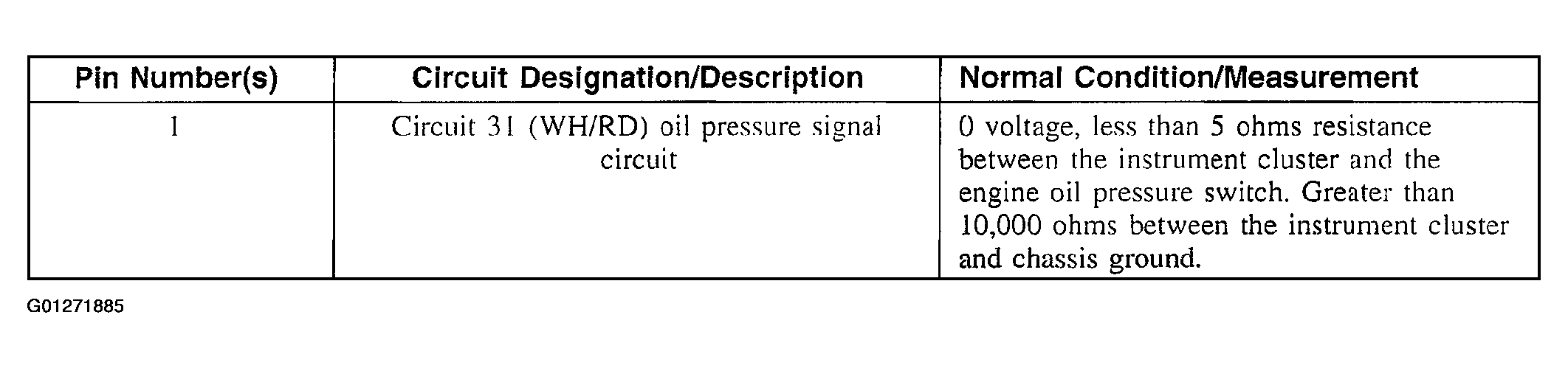

Fig 2: Identifying Connector Pin Reference Chart
G01271885Courtesy of FORD MOTOR CO.
