Pinpoint Test E: The Steering Wheel Control Switch Illumination Source Is Inoperative: Testing

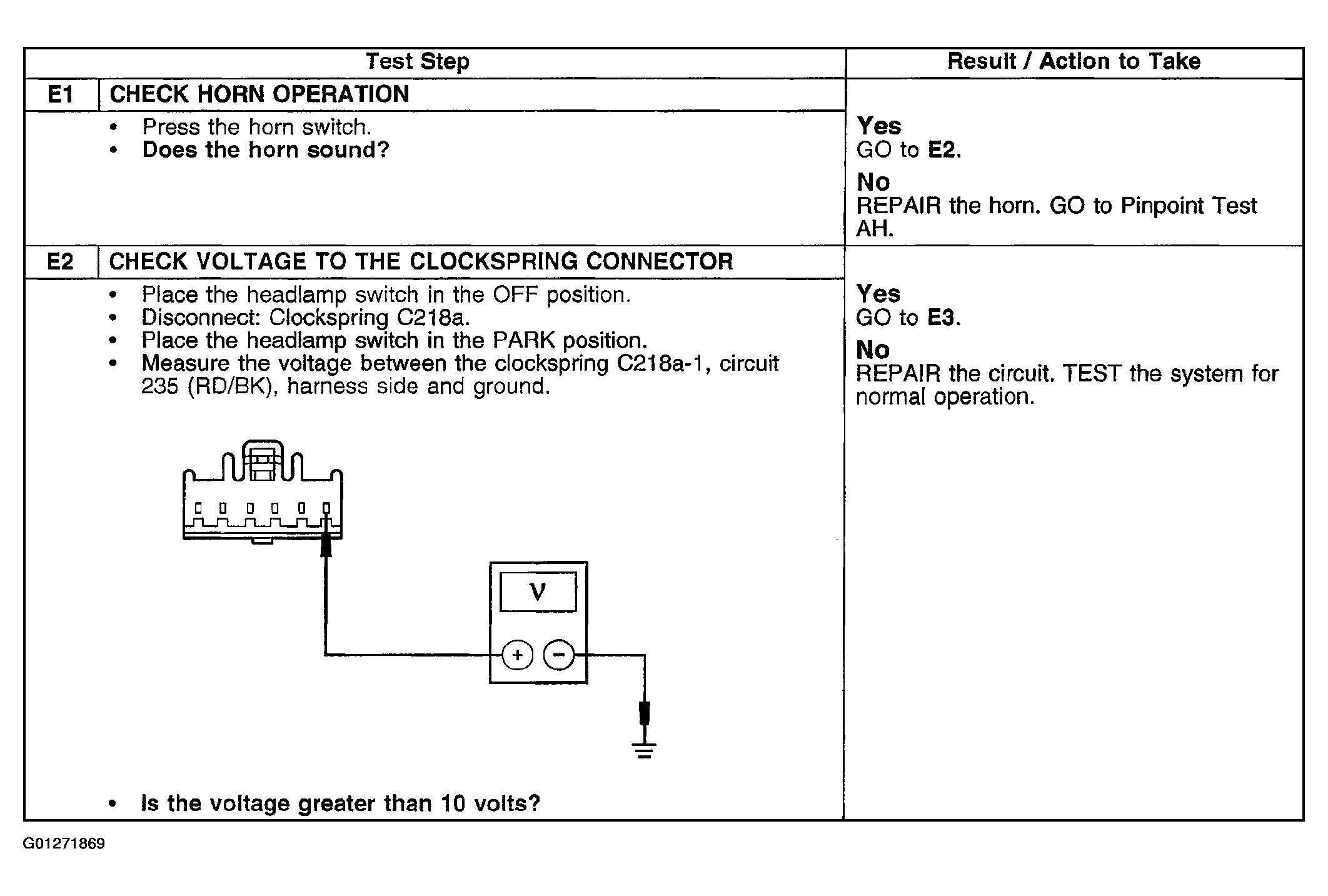

Fig 1: Pinpoint Test E: Steering Wheel Control Switch Illumination Source Is Inoperative (E1 - E2)
G01271869Courtesy of FORD MOTOR CO.

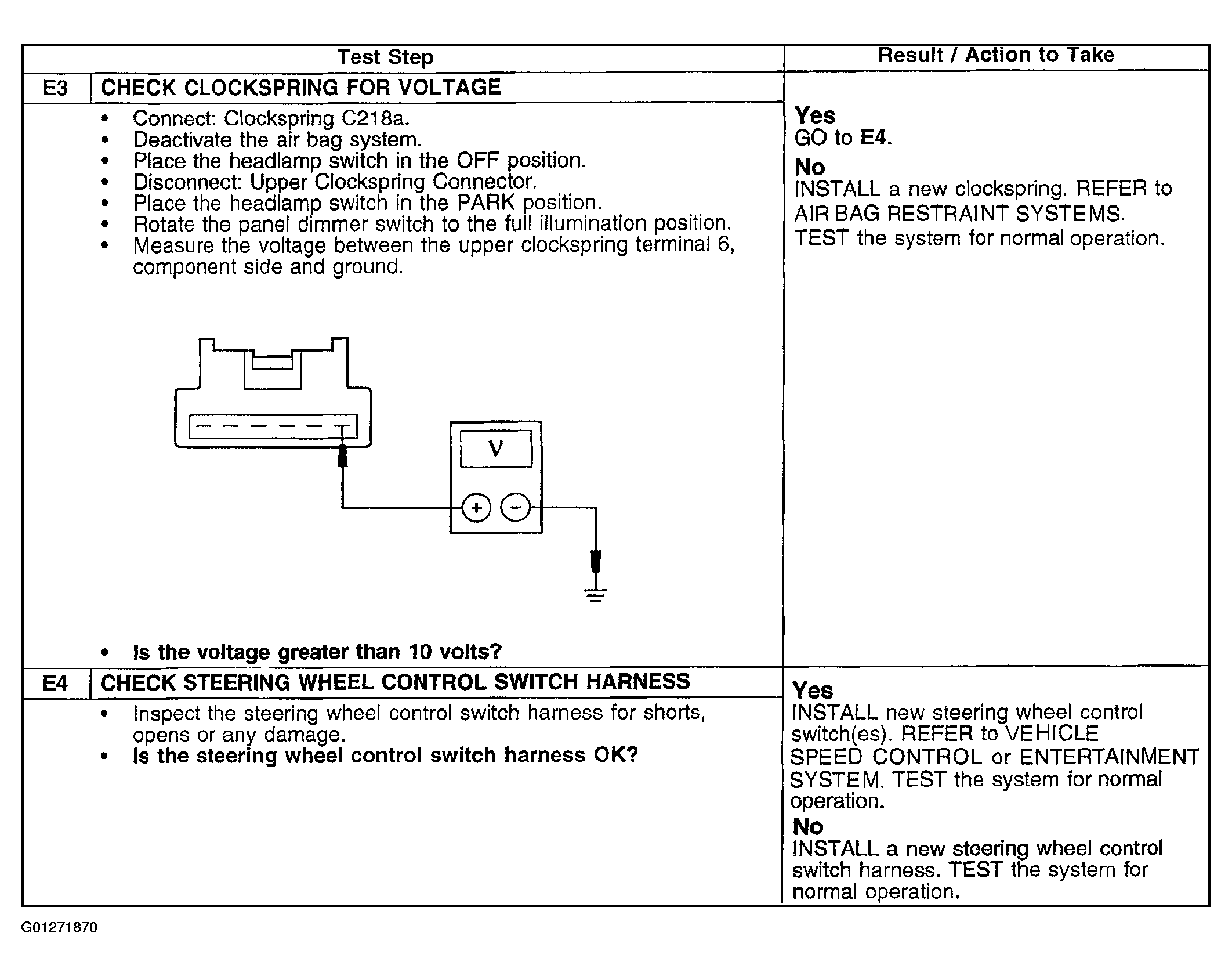

Fig 2: Pinpoint Test E: Steering Wheel Control Switch Illumination Source Is Inoperative (E3 - E4)
G01271870Courtesy of FORD MOTOR CO.
