Pinpoint Test D: A Single Illumination Source Is Inoperative: Testing

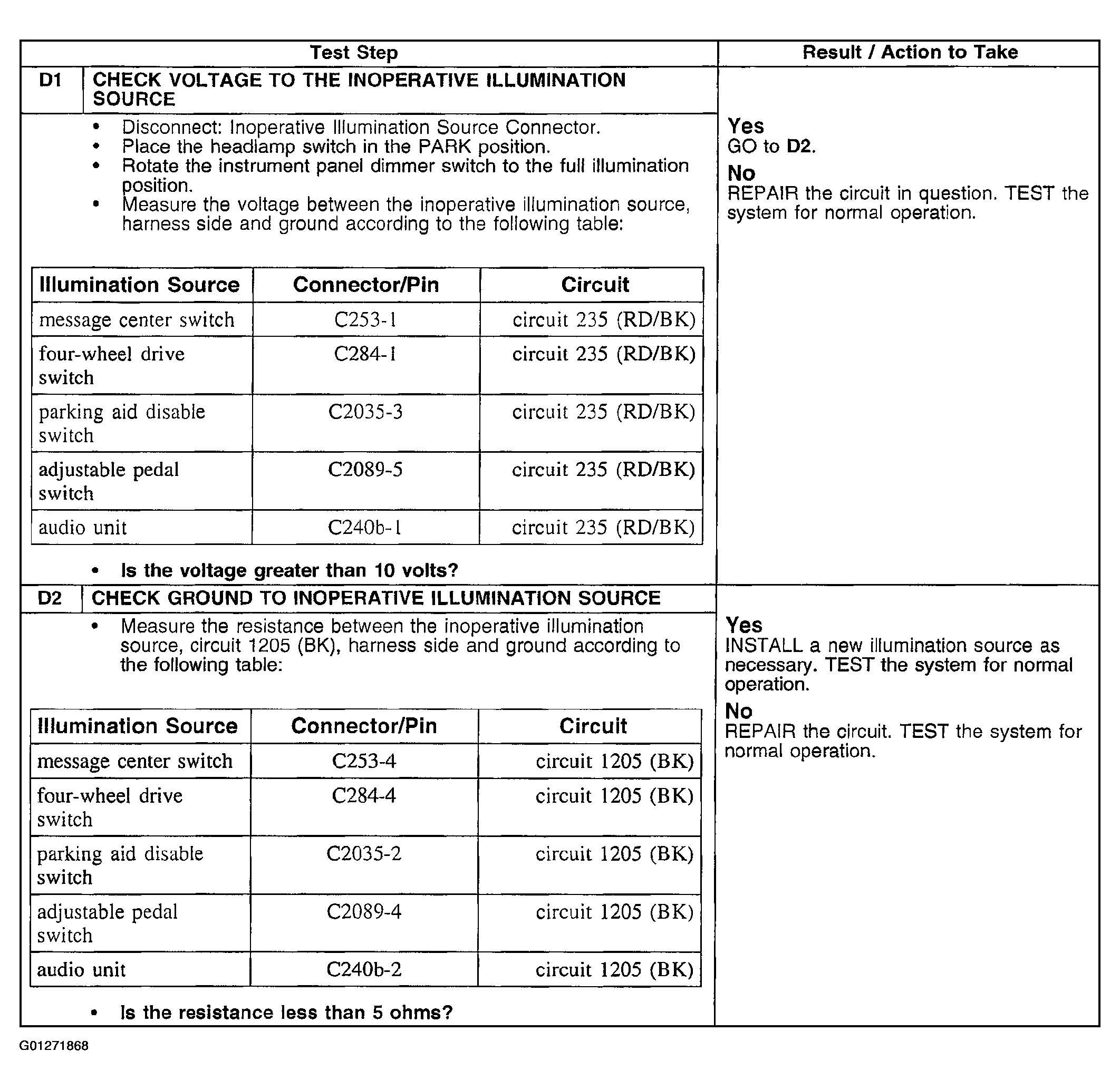

Fig 1: Pinpoint Test D: A Single Illumination Source Is Inoperative (D1 - D2)

G01271868

Courtesy of FORD MOTOR CO.
