Pinpoint Test C: The Climate Control Panel Illumination Is Inoperative: Testing

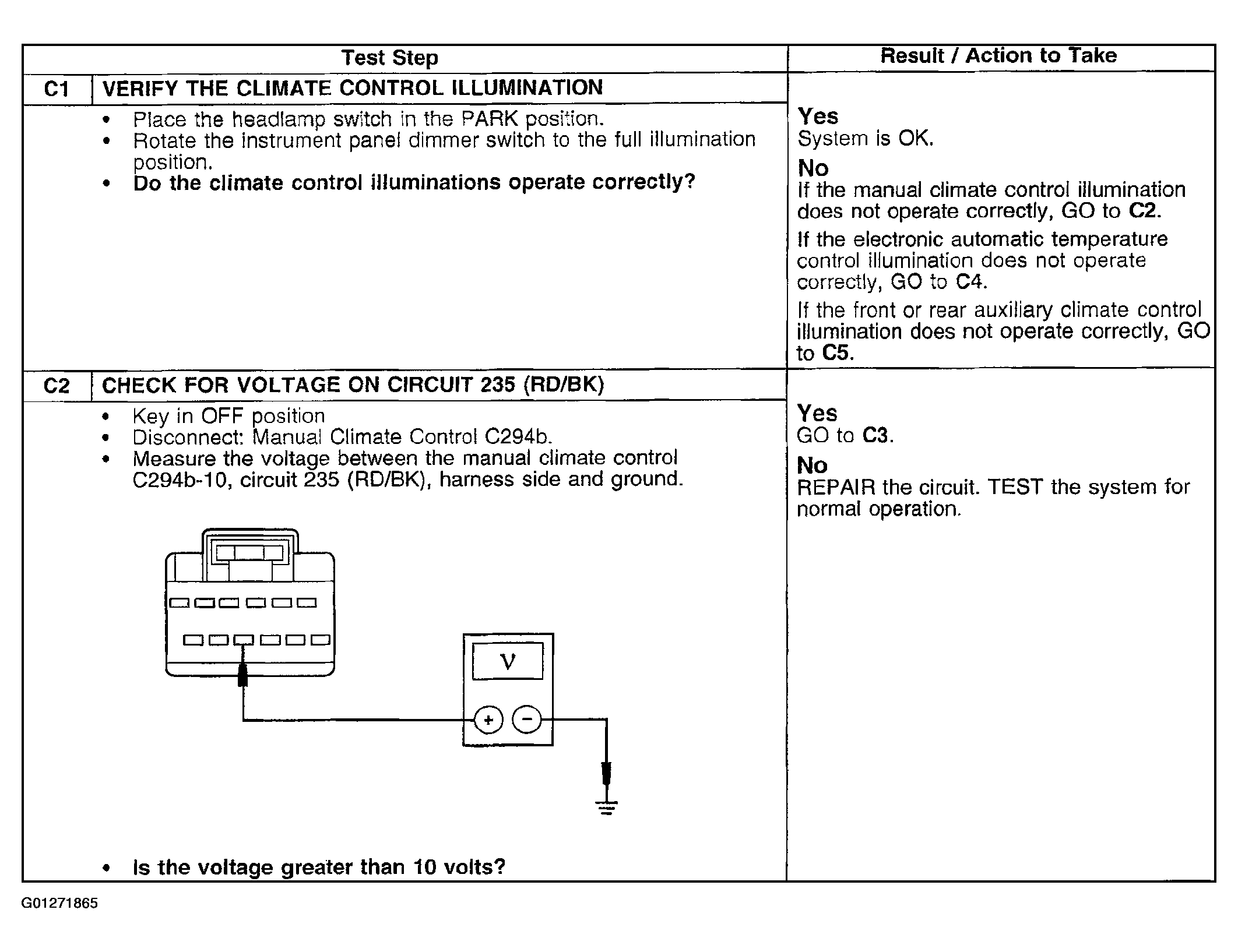

Fig 1: Pinpoint Test C: Climate Control Panel Illumination Is Inoperative (C1 - C2)
G01271865Courtesy of FORD MOTOR CO.

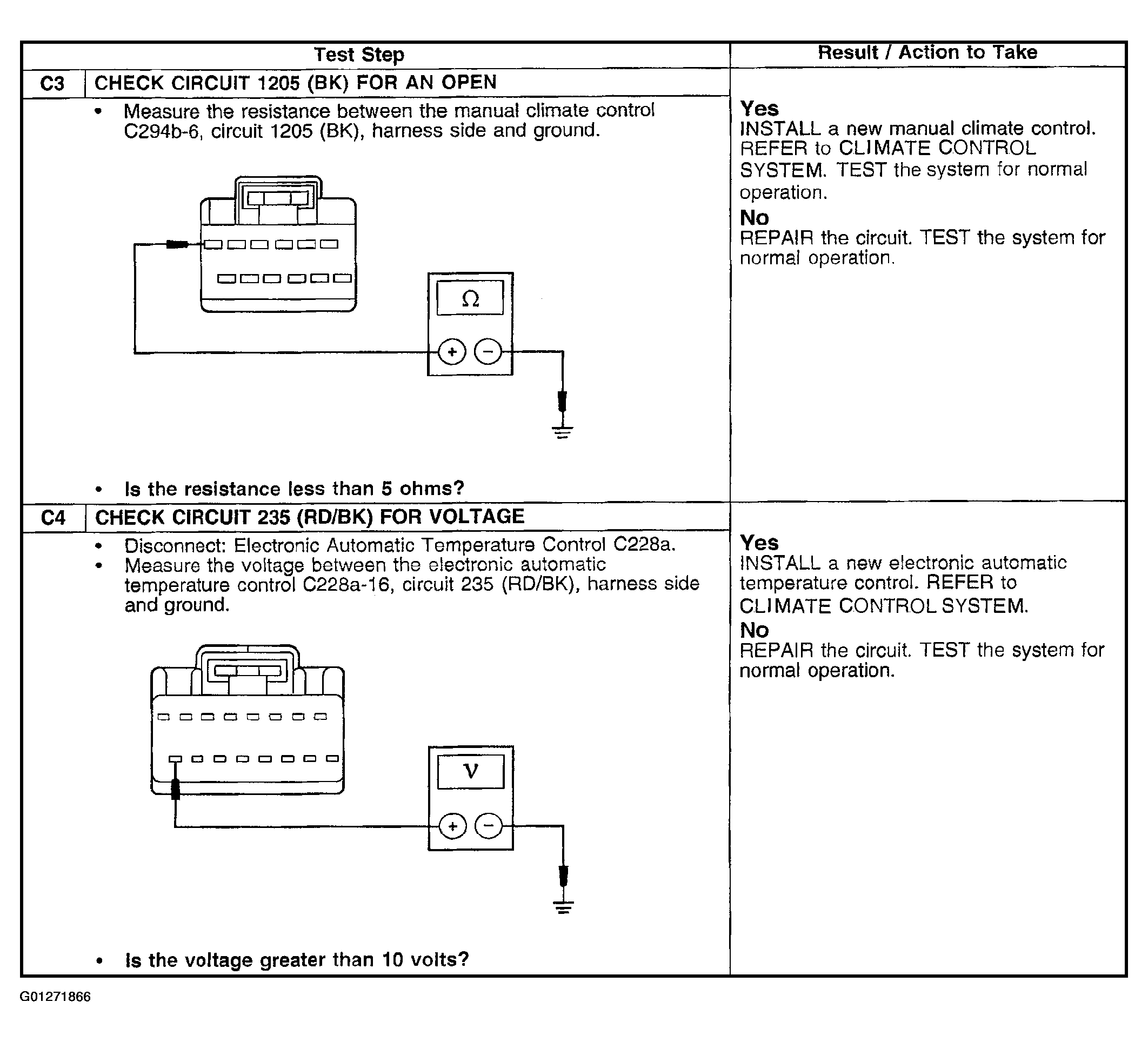

Fig 2: Pinpoint Test C: Climate Control Panel Illumination Is Inoperative (C3 - C4)
G01271866Courtesy of FORD MOTOR CO.

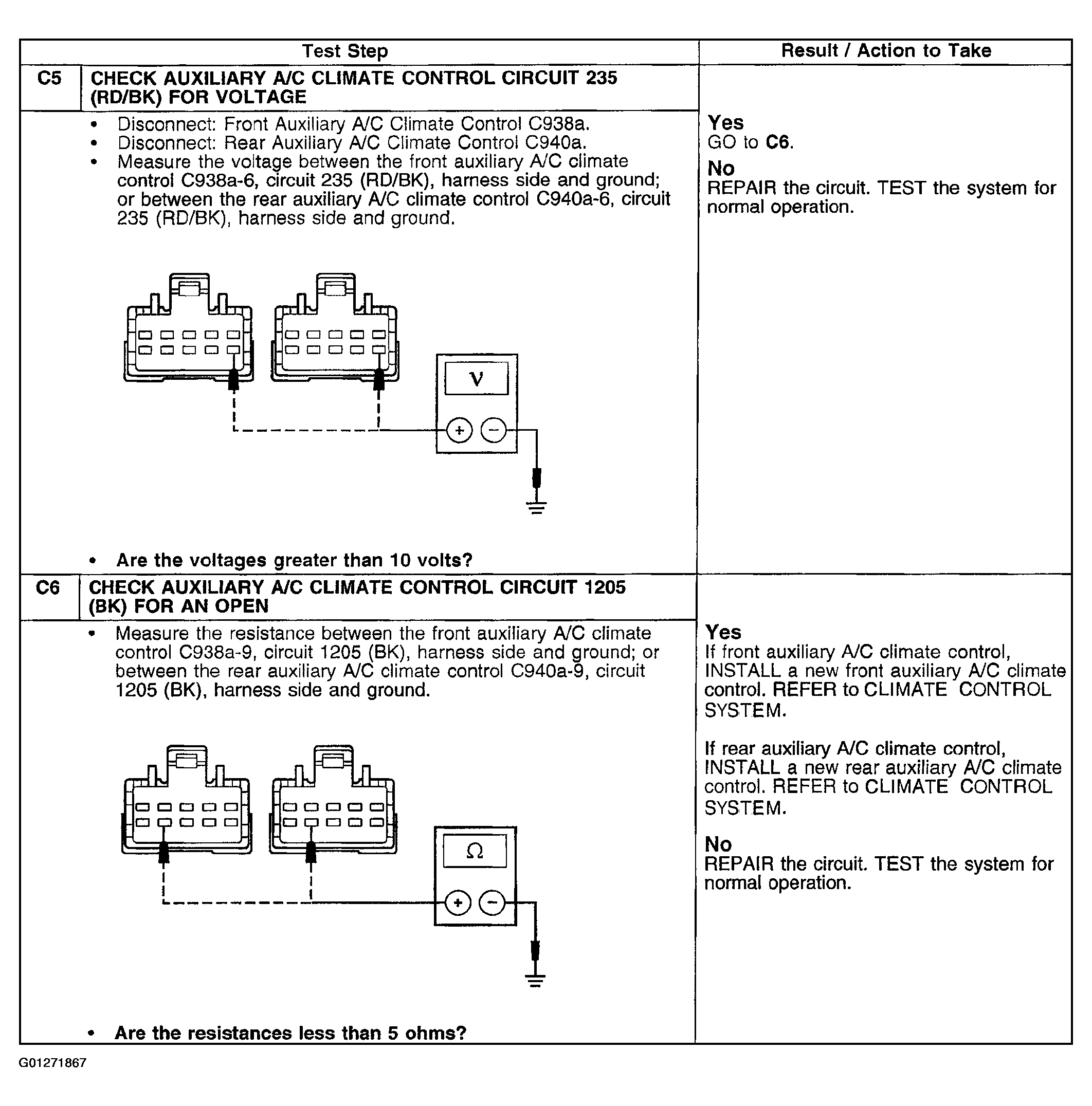

Fig 3: Pinpoint Test C: Climate Control Panel Illumination Is Inoperative (C5 - C6)
G01271867Courtesy of FORD MOTOR CO.
