Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative: Testing

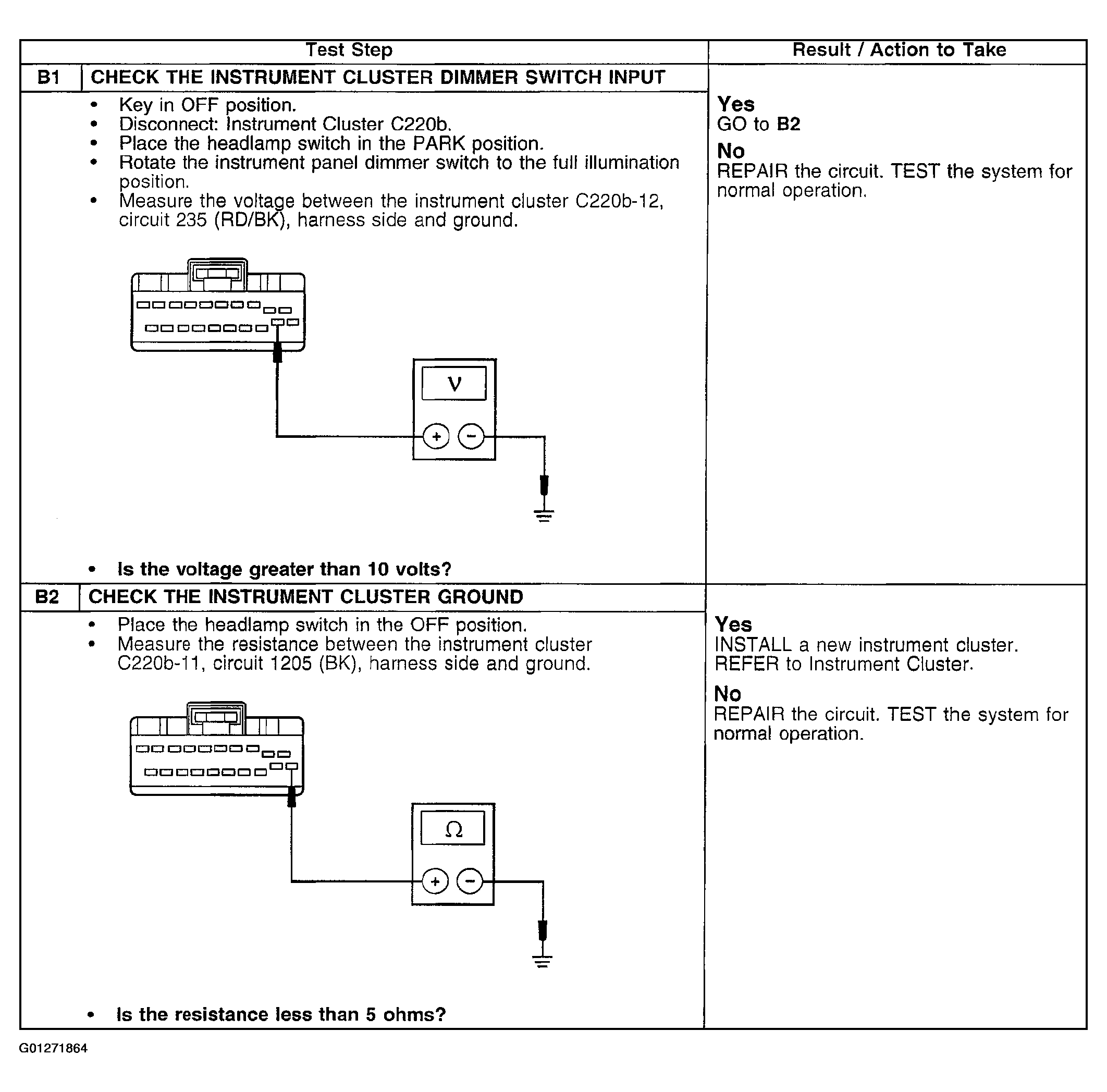

Fig 1: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B1 - B2)

G01271864

Courtesy of FORD MOTOR CO.
