Pinpoint Test A: The Control Illumination Is Inoperative: Testing

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative (A1)
G01271862Courtesy of FORD MOTOR CO.

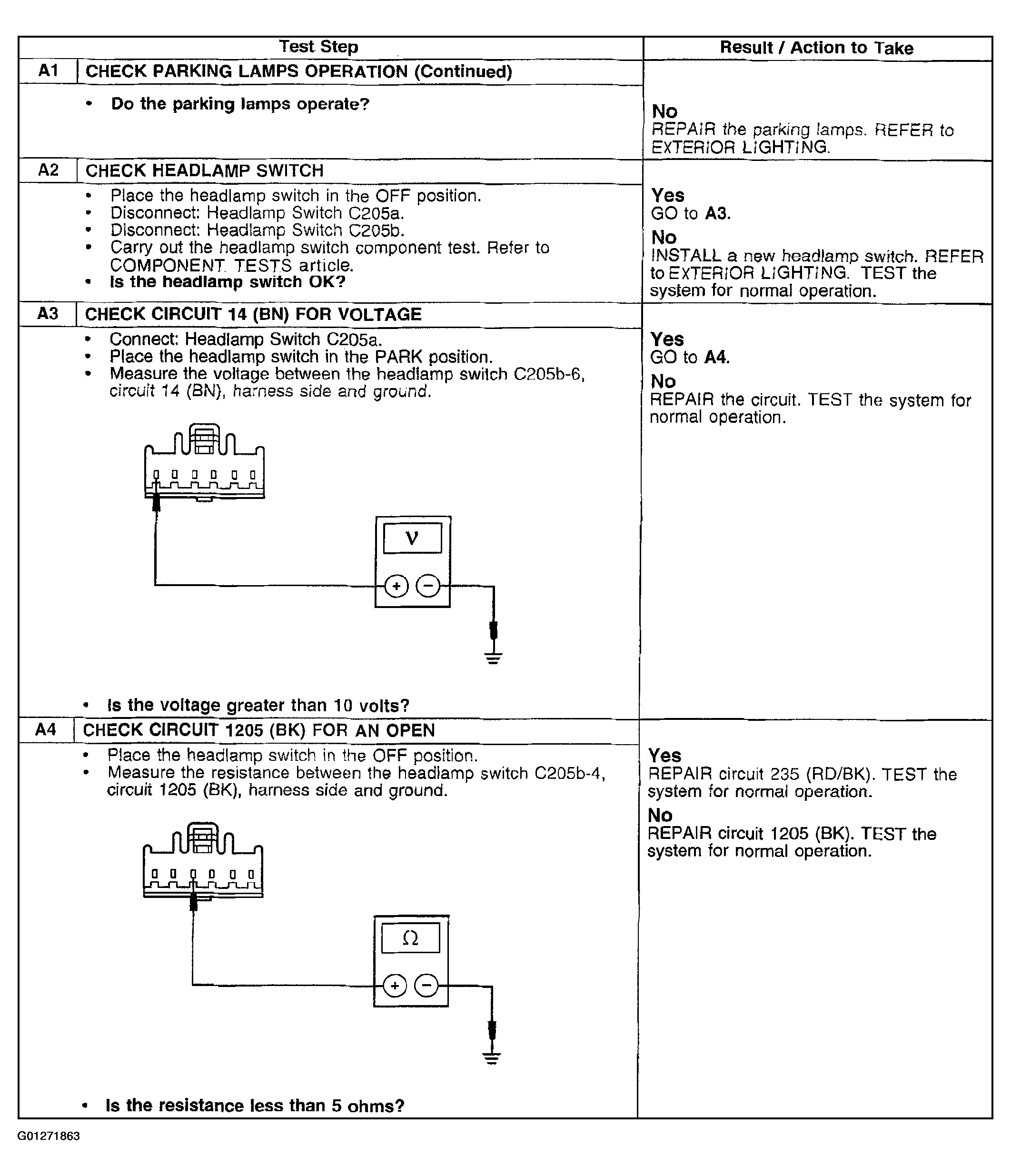

Fig 2: Pinpoint Test A: Control Illumination Is Inoperative (A1 - A4)
G01271863Courtesy of FORD MOTOR CO.
