Parking Aid Disable Switch C2035

Fig 1: Identifying Parking Aid Disable Switch C2035 Terminal View
G01271857Courtesy of FORD MOTOR CO.

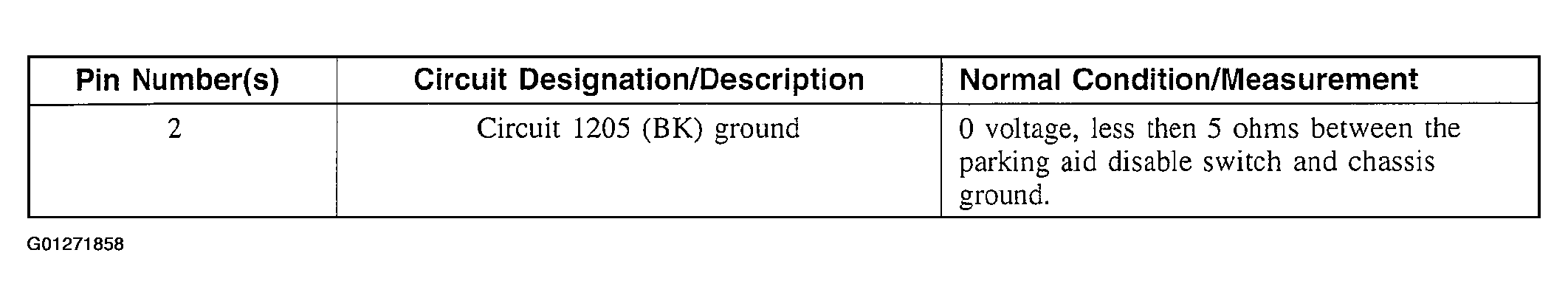

Fig 2: Identifying Connector Pin Reference Chart (1 Of 2)
G01271858Courtesy of FORD MOTOR CO.

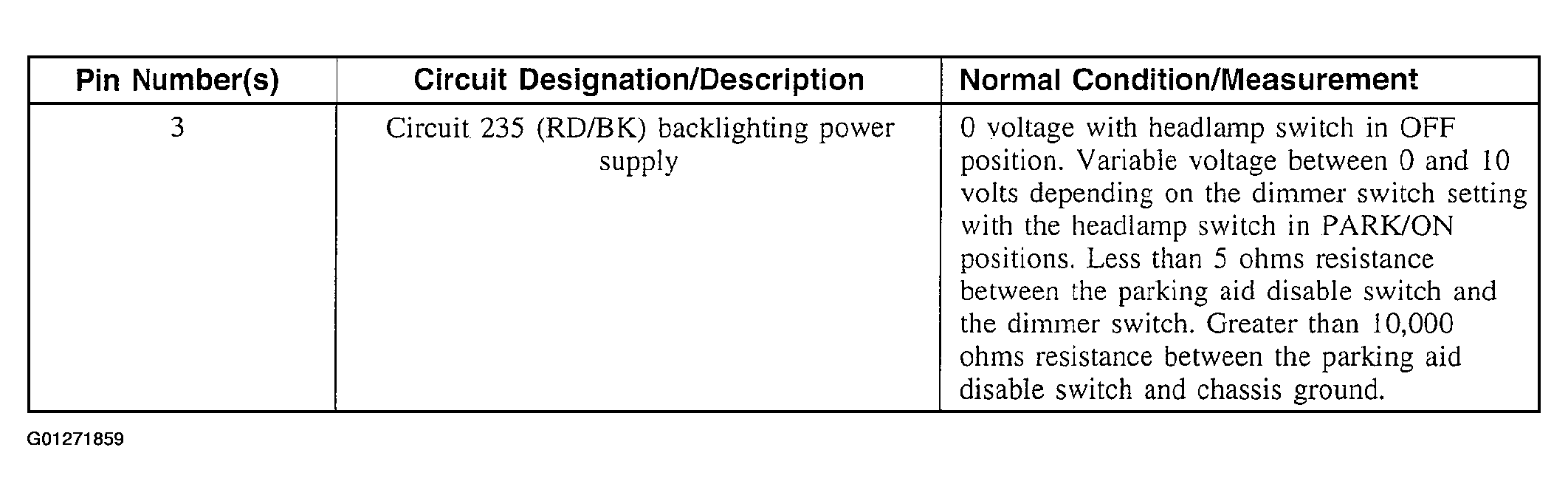

Fig 3: Connector Pin Reference Chart (2 Of 2)
G01271859Courtesy of FORD MOTOR CO.
