Clockspring C218a

Fig 1: Identifying Clockspring C218a Terminal View
G01271840Courtesy of FORD MOTOR CO.

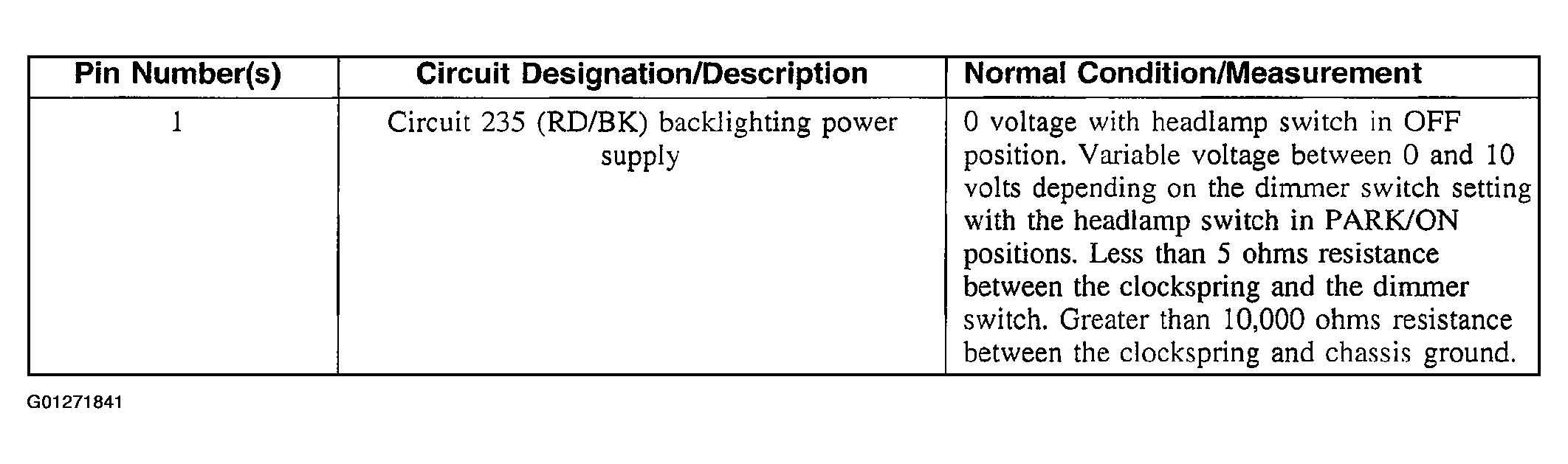

Fig 2: Identifying Connector Pin Reference Chart
G01271841Courtesy of FORD MOTOR CO.
