Inspection and Verification: Notes
NOTE:
A new instrument cluster must be reconfigured. For additional information, refer to
MODULE COMMUNICATIONS NETWORK
.
NOTE:
When installing a new instrument cluster, it is necessary to contact the Instrument Cluster Program.
- Verify the customer concern.

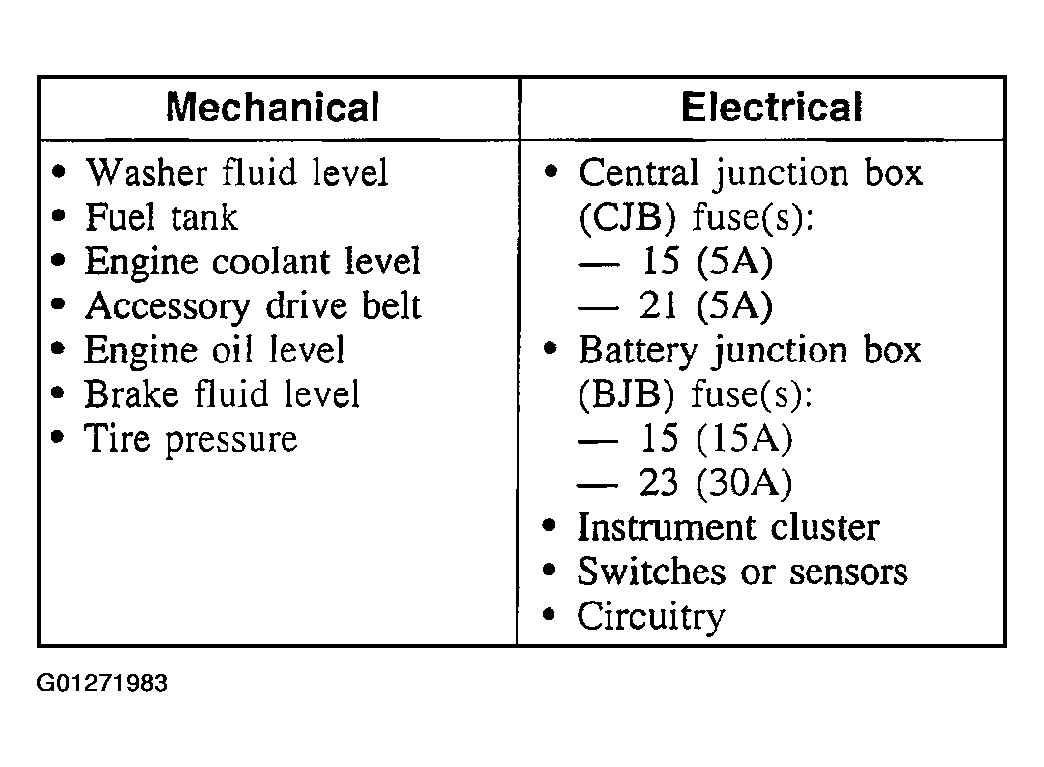

- Visually inspect for obvious signs of mechanical or electrical damage.
- If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
- If the cause is not visually evident, connect the diagnostic tool to the data link connector and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- check that the program card is correctly installed.
- check the connections to the vehicle.
- check the ignition switch position.
- If the diagnostic tool still does not communicate with the vehicle, refer to the Diagnostic tool operating manual.
- Carry out the diagnostic tool data link test. If the diagnostic tool responds with:
- SCP+ or SCP- circuit fault; all electronic control units no response/not equipped, refer to MODULE COMMUNICATIONS NETWORK .
- No response/not equipped for the instrument cluster, GO to PINPOINT TEST G .
- System passed, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out self-test diagnostics for the instrument cluster.
- If the DTCs retrieved are related to the concern, Refer to the Instrument Cluster Diagnostic Trouble Code (DTC) Index to continue diagnostics.
- If no DTCs related to the concern are retrieved, GO to SYMPTOM CHART continue diagnostics.
