Body Panel System - Body System - Interior
>>
Specifications
>>
Torque Specifications
Torque Specifications

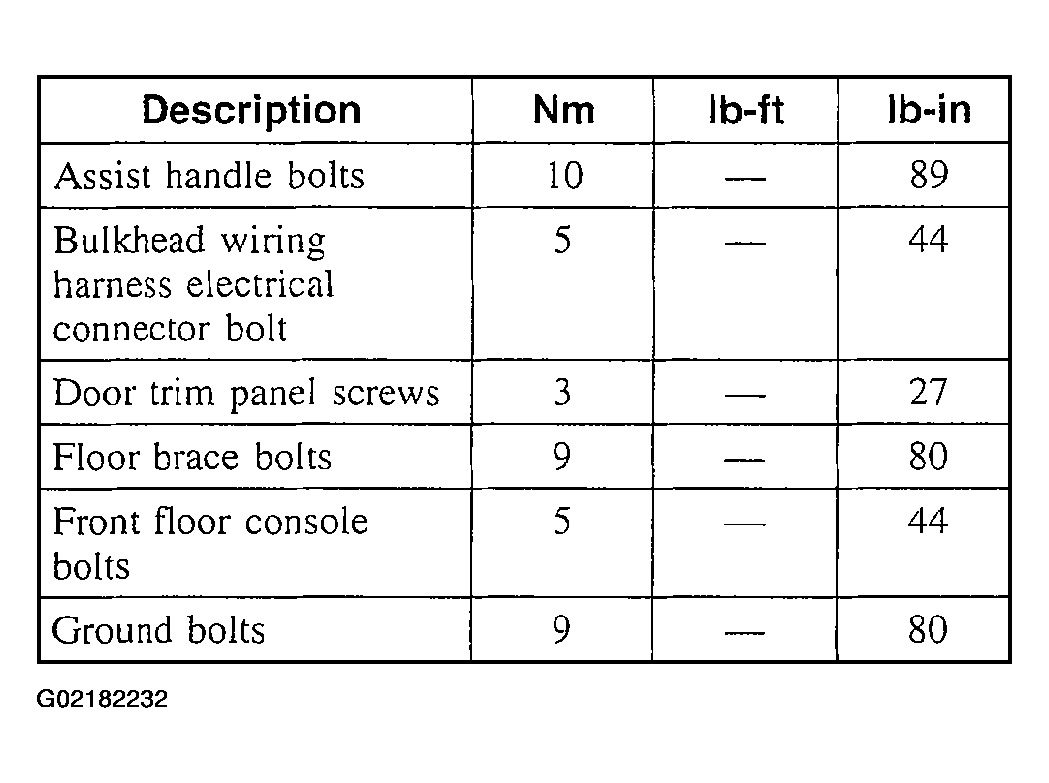

Fig 1: Torque Specification Chart Of Body System -- Interior Replacement Components (1 Of 2)
Courtesy of FORD MOTOR CO.

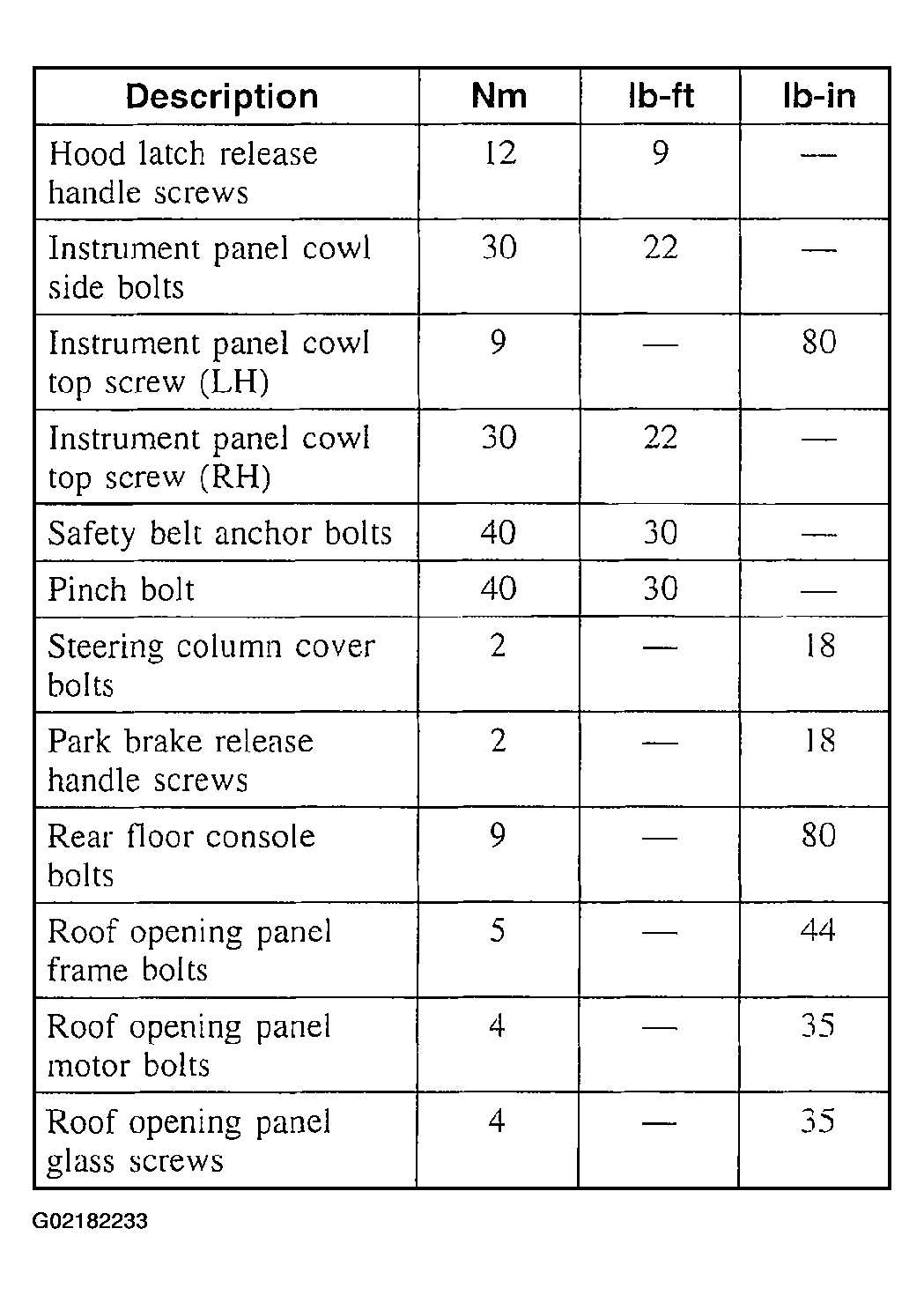

Fig 2: Torque Specification Chart Of Body System -- Interior Replacement Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
