Removal and Installation

  1. Remove the components in the order indicated in the following illustration and table.

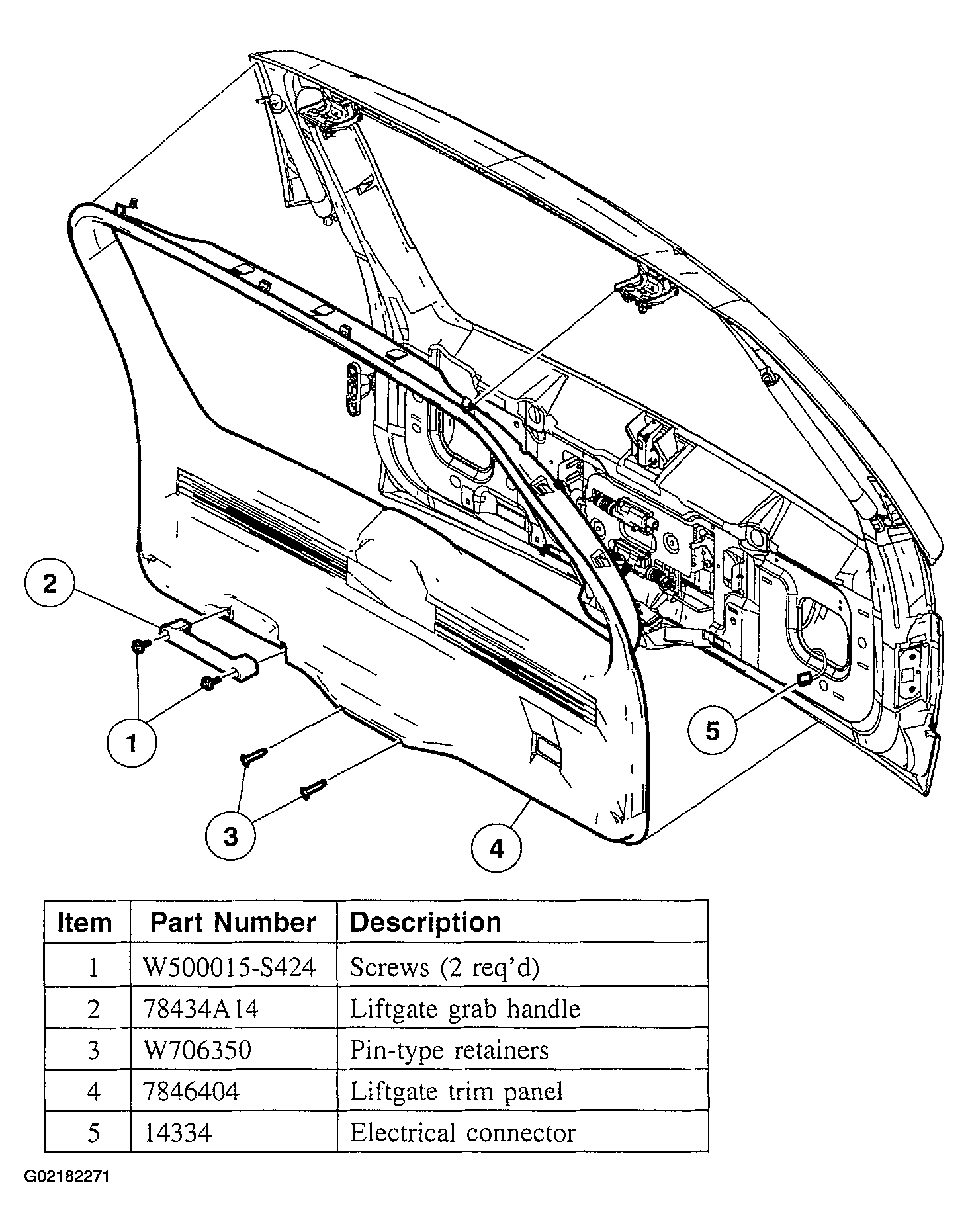

    Fig 1: Identifying Different Components Location Of Liftgate Trim Panel in order of their Removing
    G02182271Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
