Roof Opening Panel Alignment

  1. Loosen the four roof opening panel bolts.
    Fig 1: Loosening Roof Opening Panel Bolts
    G02182255Courtesy of FORD MOTOR CO.
  2. Close the roof opening panel.
    3. NOTE: The correct position of the roof opening panel to the roof panel should be 0 to 1.5 mm (0.059 in) above the roof panel at the rear edge and 0 to 1.5 mm (0.059 in) below the roof panel at the front edge of the panel.

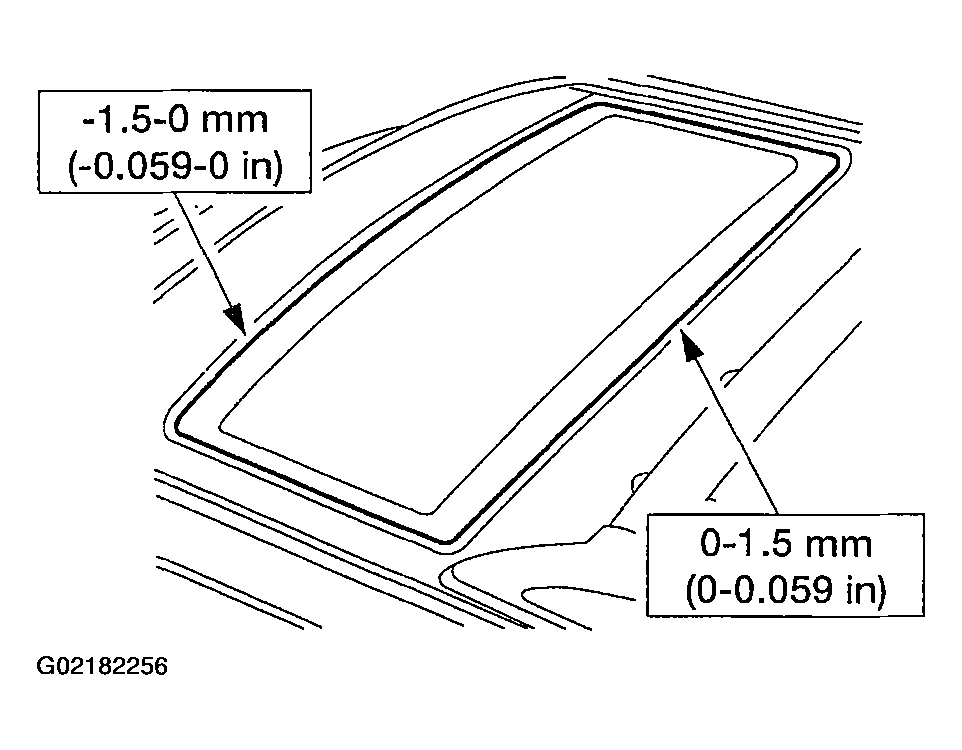

    Fig 2: Identifying Dimensions For Correct Position Of Roof Opening Panel
    G02182256Courtesy of FORD MOTOR CO.
  3. Adjust the roof opening panel.
  4. Tighten the roof opening panel bolts.
    Fig 3: Tightening Roof Opening Panel Bolts
    G02182257Courtesy of FORD MOTOR CO.
