Manual Operation

  1. Remove the overhead console. For additional information, refer to OVERHEAD CONSOLE .
  2. Insert a flat head screwdriver in the center of the manual drive slot to depress the release pin. Rotate the screwdriver clockwise until the roof opening panel is closed.

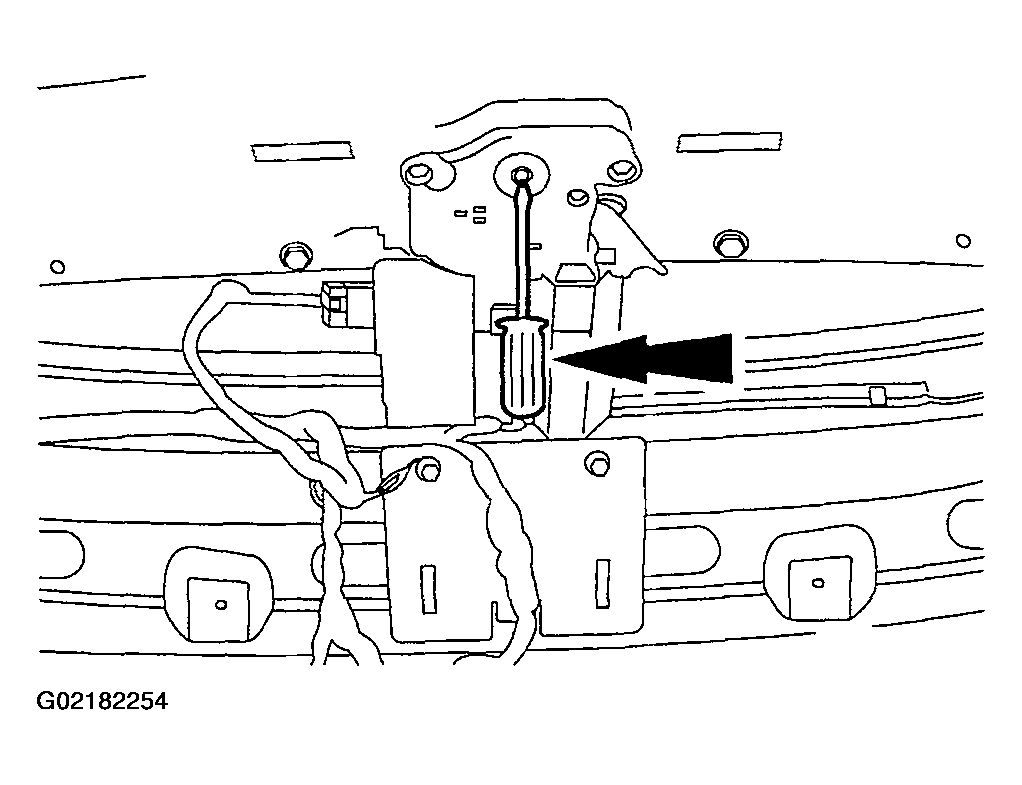

    Fig 1: Inserting Flat Head Screwdriver In Center Of Manual Drive Slot To Depress Release Pin
    G02182254Courtesy of FORD MOTOR CO.
