Body Panel System - Body System - Interior
>>
Diagnosis And Testing
>>
Roof Opening Panel
>>
Symptom Chart
Symptom Chart

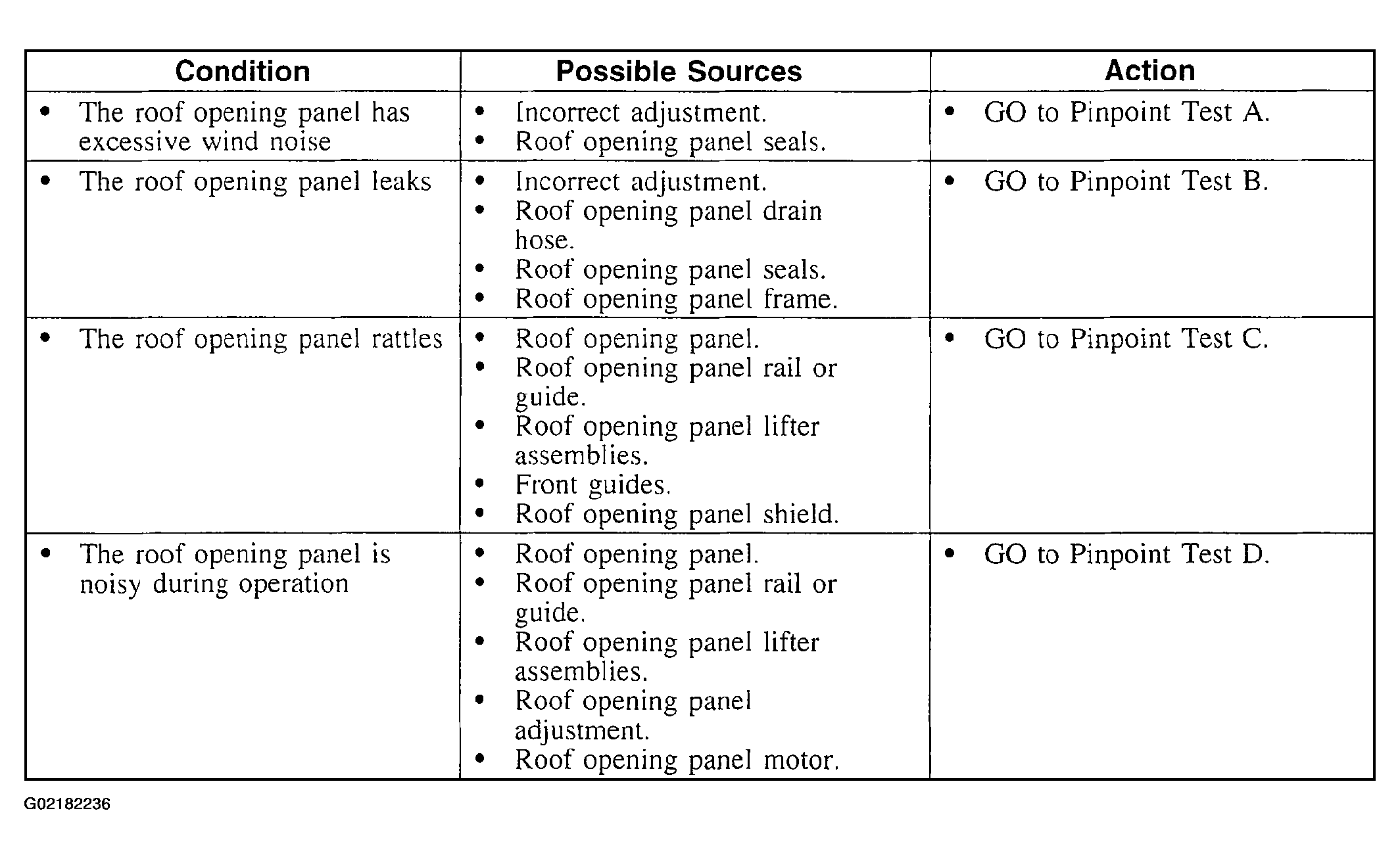

Fig 1: Symptom Chart For Roof Opening Panel (1 Of 2)
Courtesy of FORD MOTOR CO.

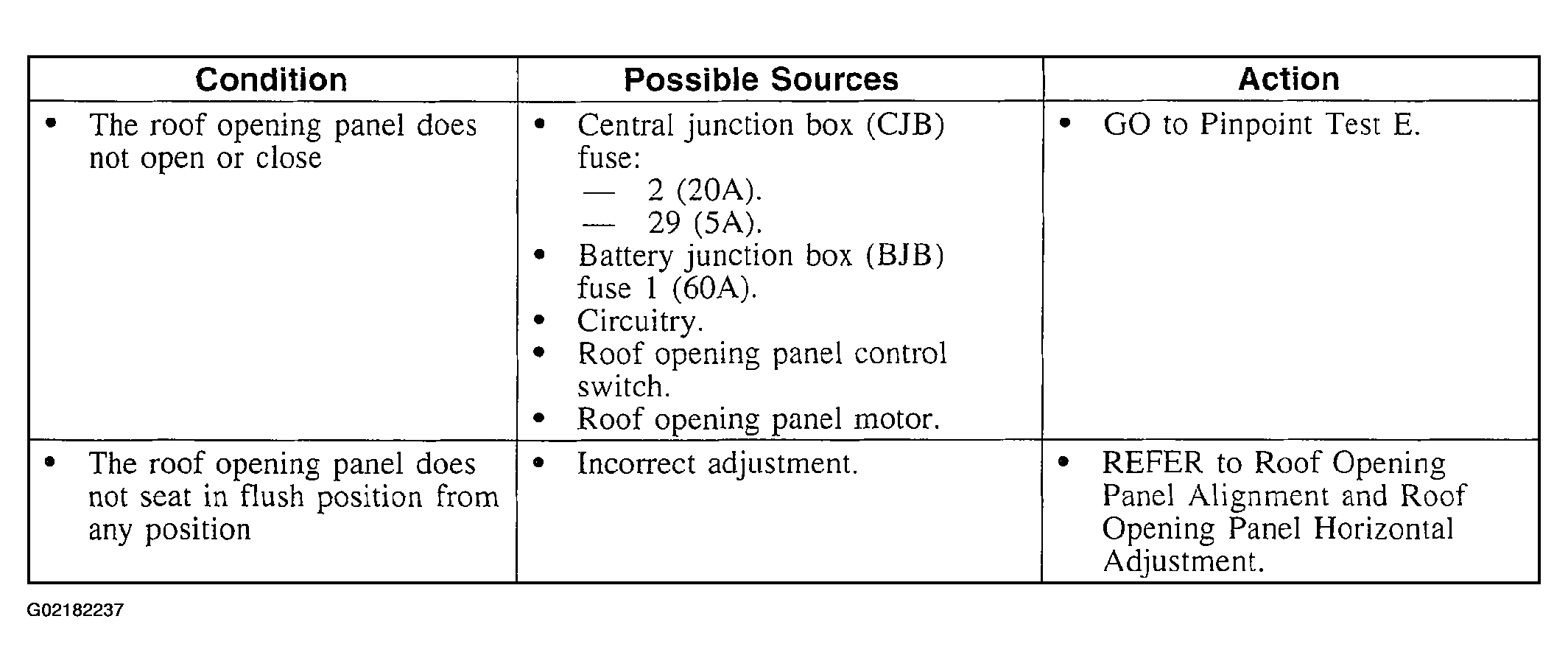

Fig 2: Symptom Chart For Roof Opening Panel (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
