Pinpoint Test E: The Roof Opening Panel Does Not Open Or Close: Testing

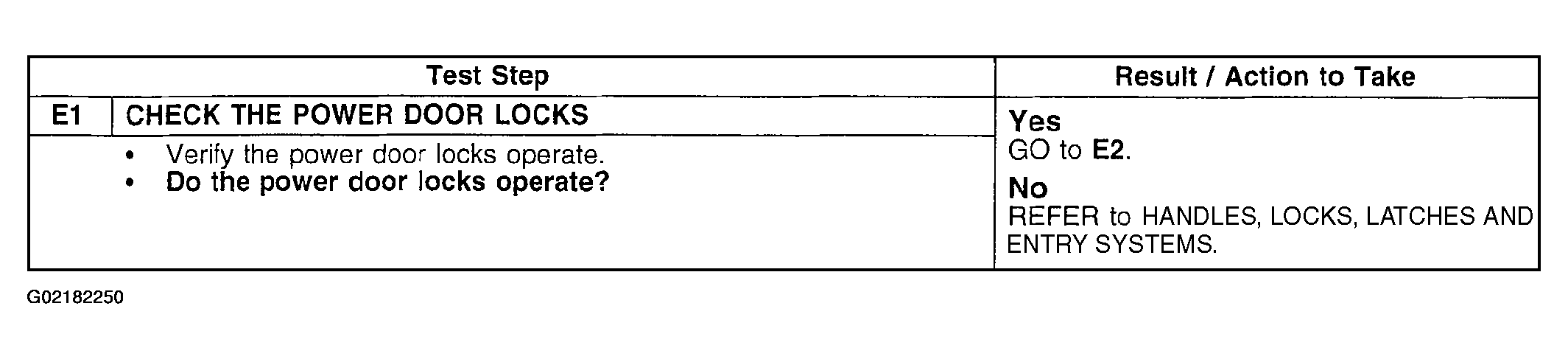

Fig 1: Pinpoint Test E: Roof Opening Panel Does Not Open Or Close (E1)
G02182250Courtesy of FORD MOTOR CO.

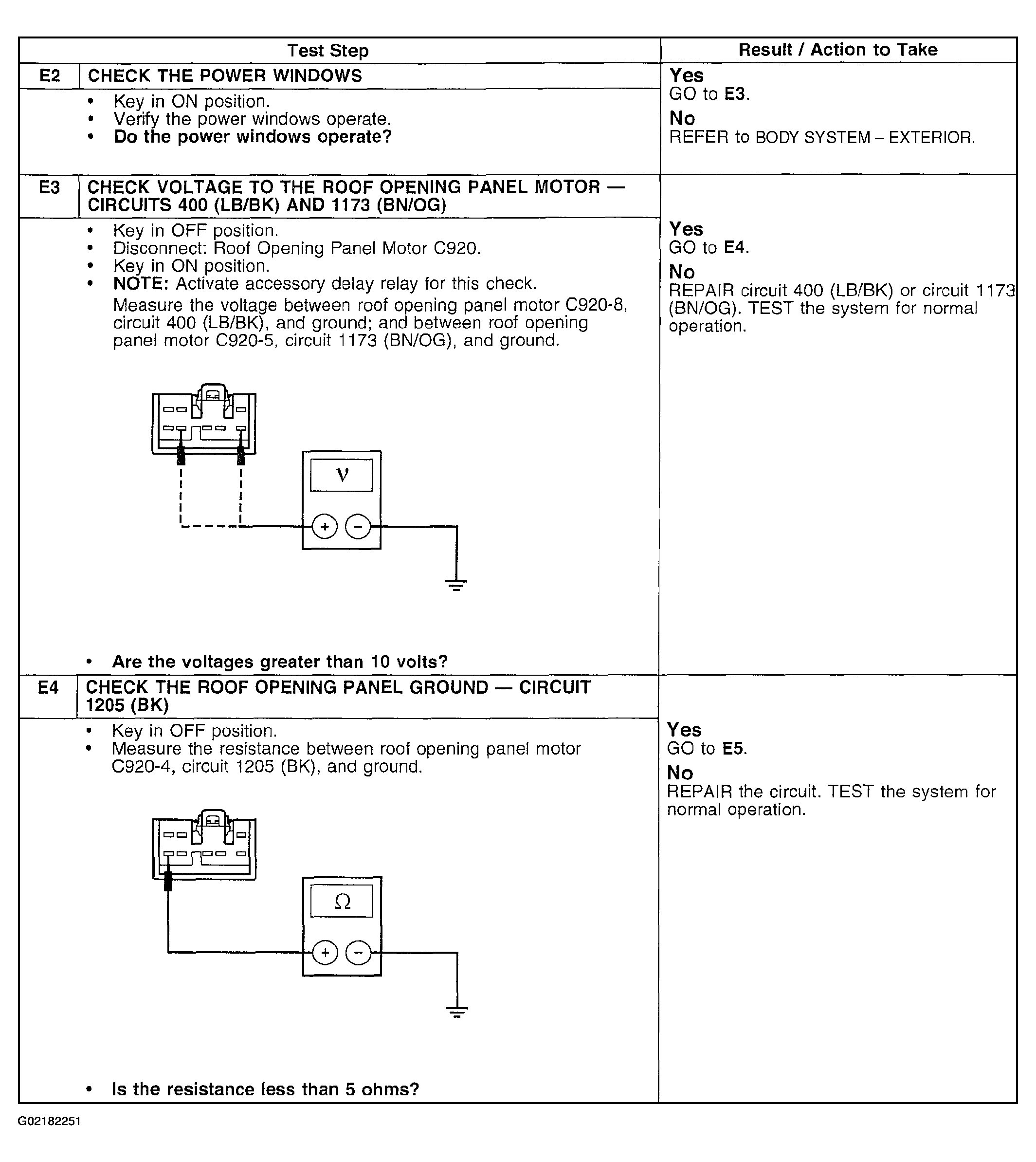

Fig 2: Pinpoint Test E: Roof Opening Panel Does Not Open Or Close (E2 - E4)
G02182251Courtesy of FORD MOTOR CO.

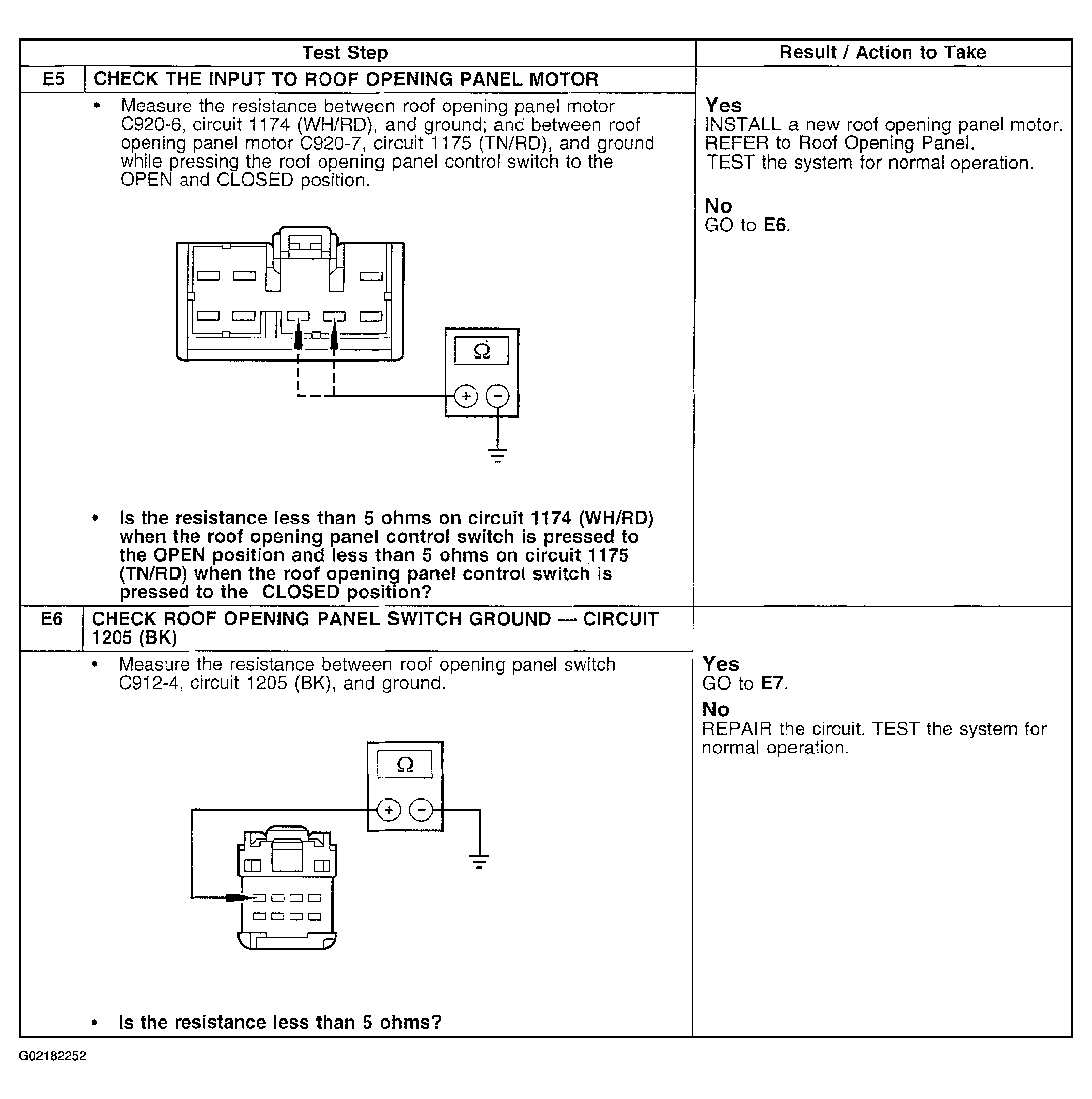

Fig 3: Pinpoint Test E: Roof Opening Panel Does Not Open Or Close (E5 - E6)
G02182252Courtesy of FORD MOTOR CO.

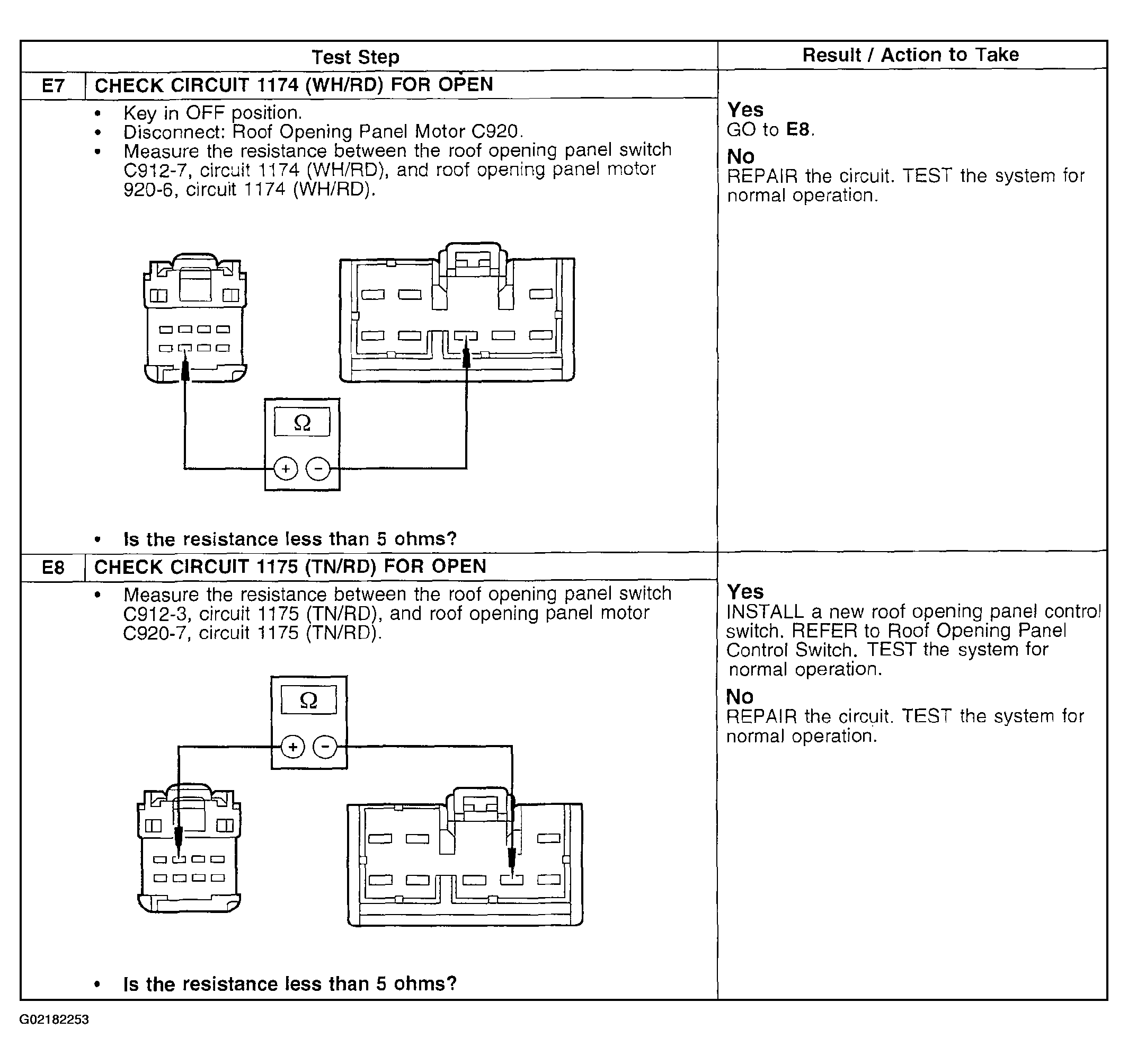

Fig 4: Pinpoint Test E: Roof Opening Panel Does Not Open Or Close (E7 - E8)
G02182253Courtesy of FORD MOTOR CO.
