Pinpoint Test D: The Roof Opening Panel Is Noisy During Operation: Testing

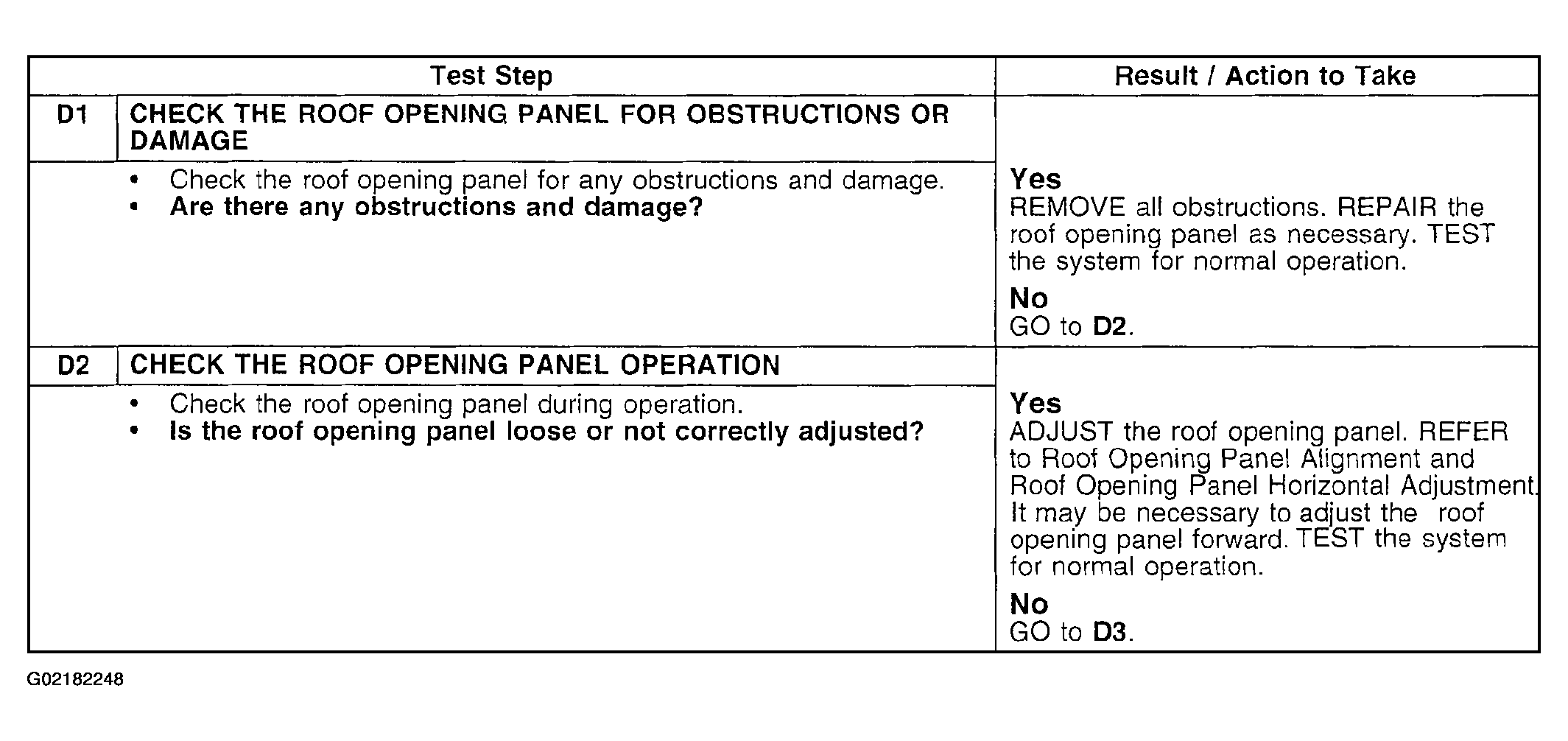

Fig 1: Pinpoint Test D: Roof Opening Panel Is Noisy During Operation (D1 - D2)
G02182248Courtesy of FORD MOTOR CO.

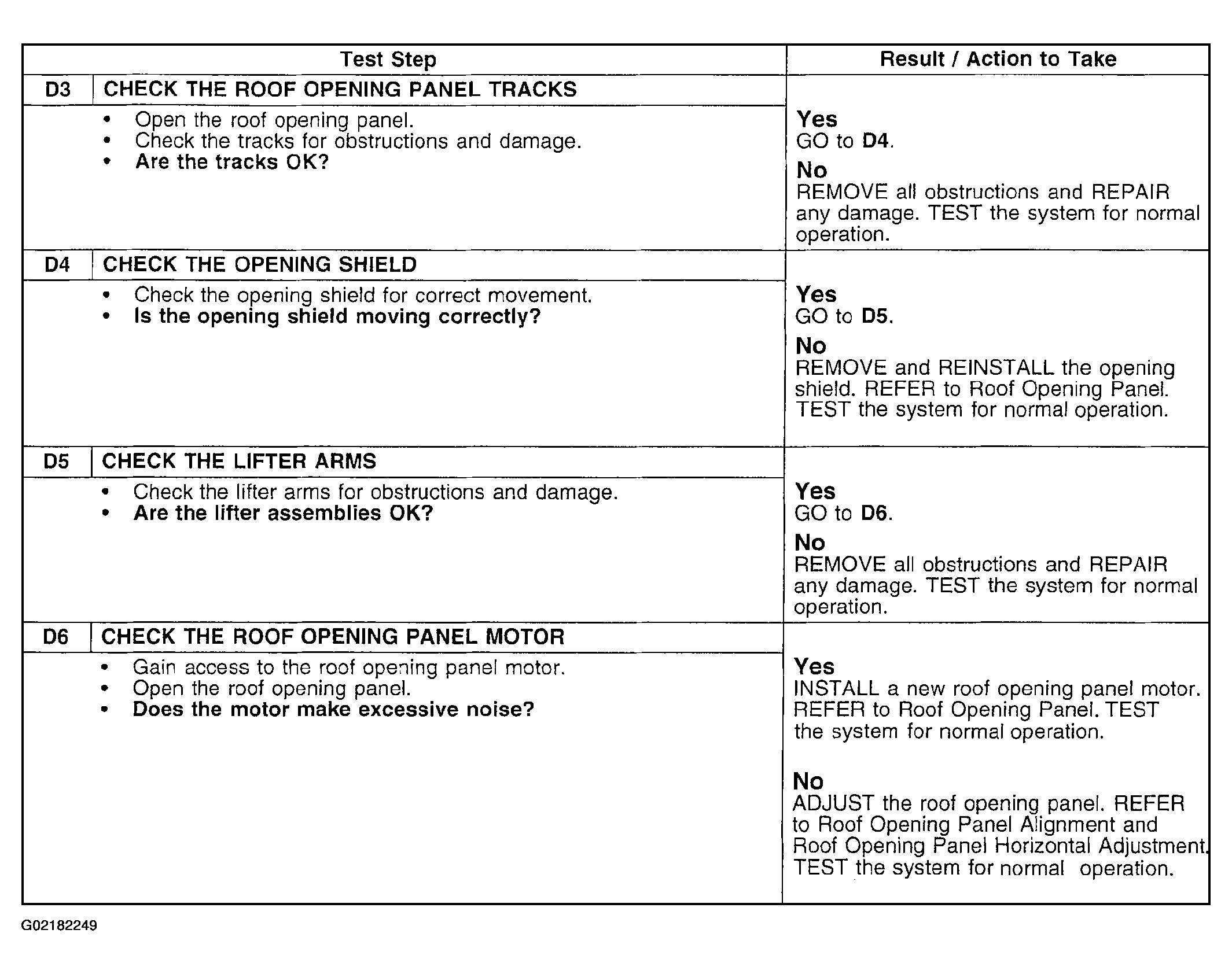

Fig 2: Pinpoint Test D: Roof Opening Panel Is Noisy During Operation (D3 - D6)
G02182249Courtesy of FORD MOTOR CO.
