Pinpoint Test C: The Roof Opening Panel Rattles: Testing

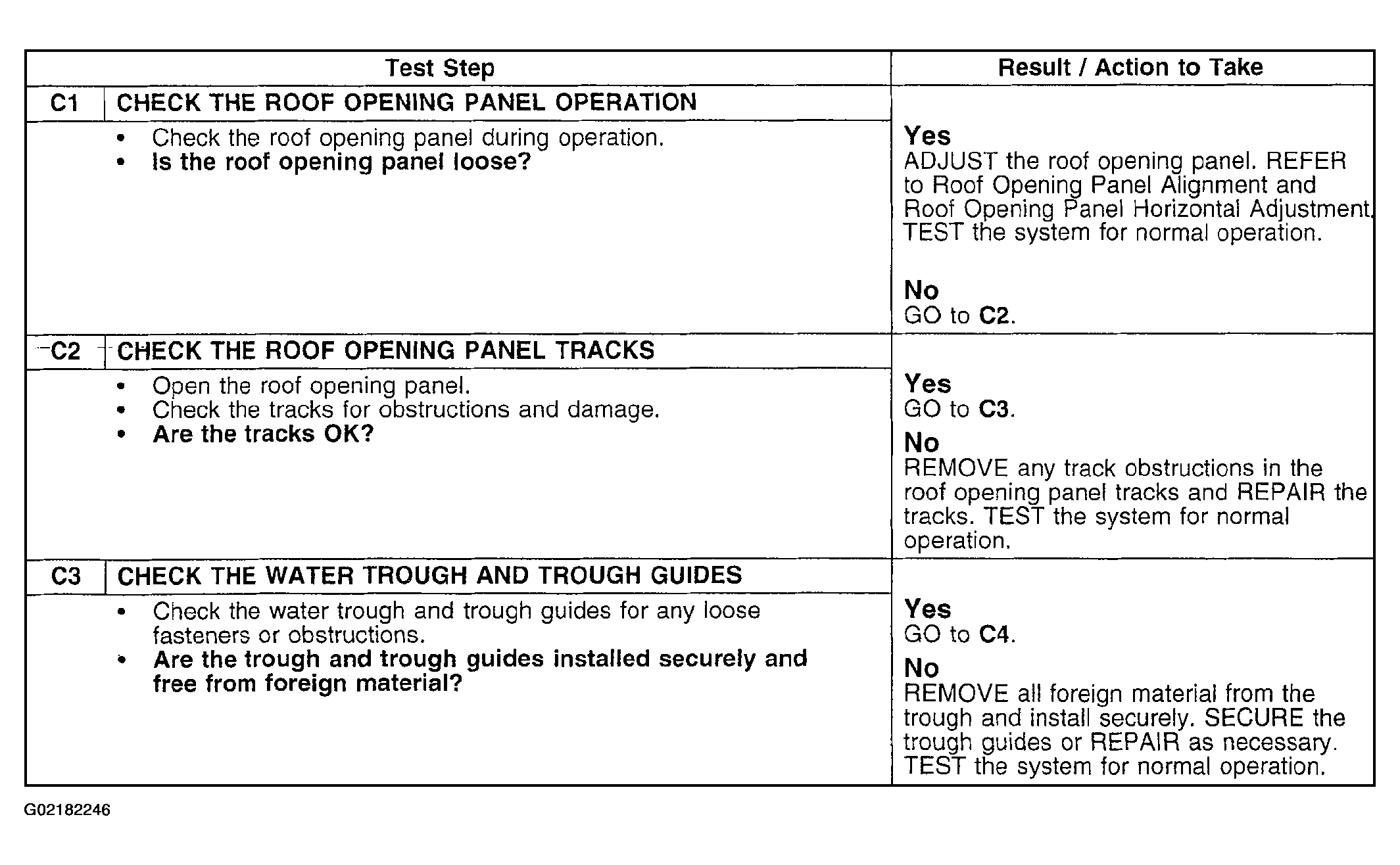

Fig 1: Pinpoint Test C: Roof Opening Panel Rattles (C1 - C3)
G02182246Courtesy of FORD MOTOR CO.

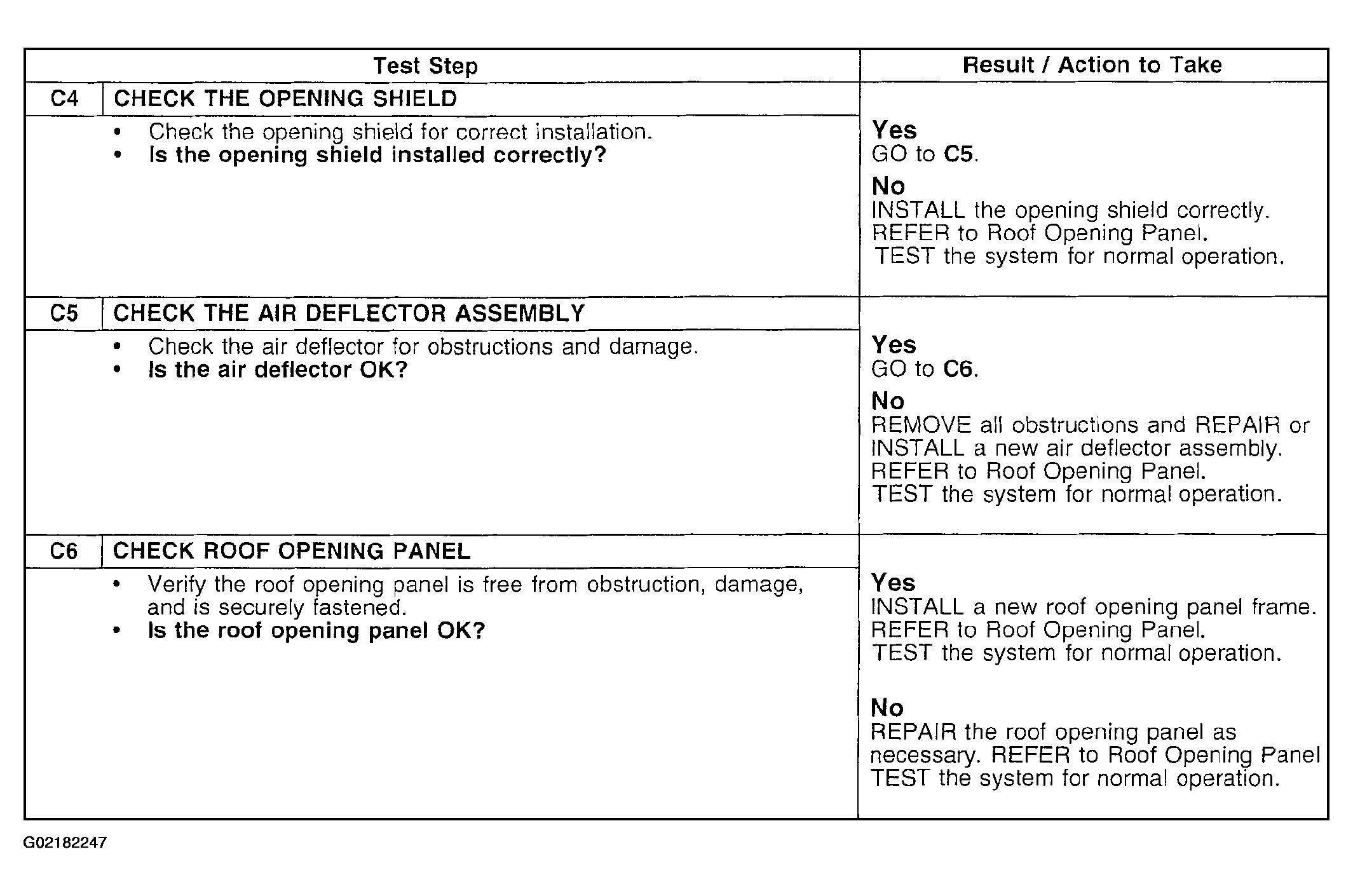

Fig 2: Pinpoint Test C: Roof Opening Panel Rattles (C4 - C6)
G02182247Courtesy of FORD MOTOR CO.
