Pinpoint Test B: The Roof Opening Panel Leaks: Testing

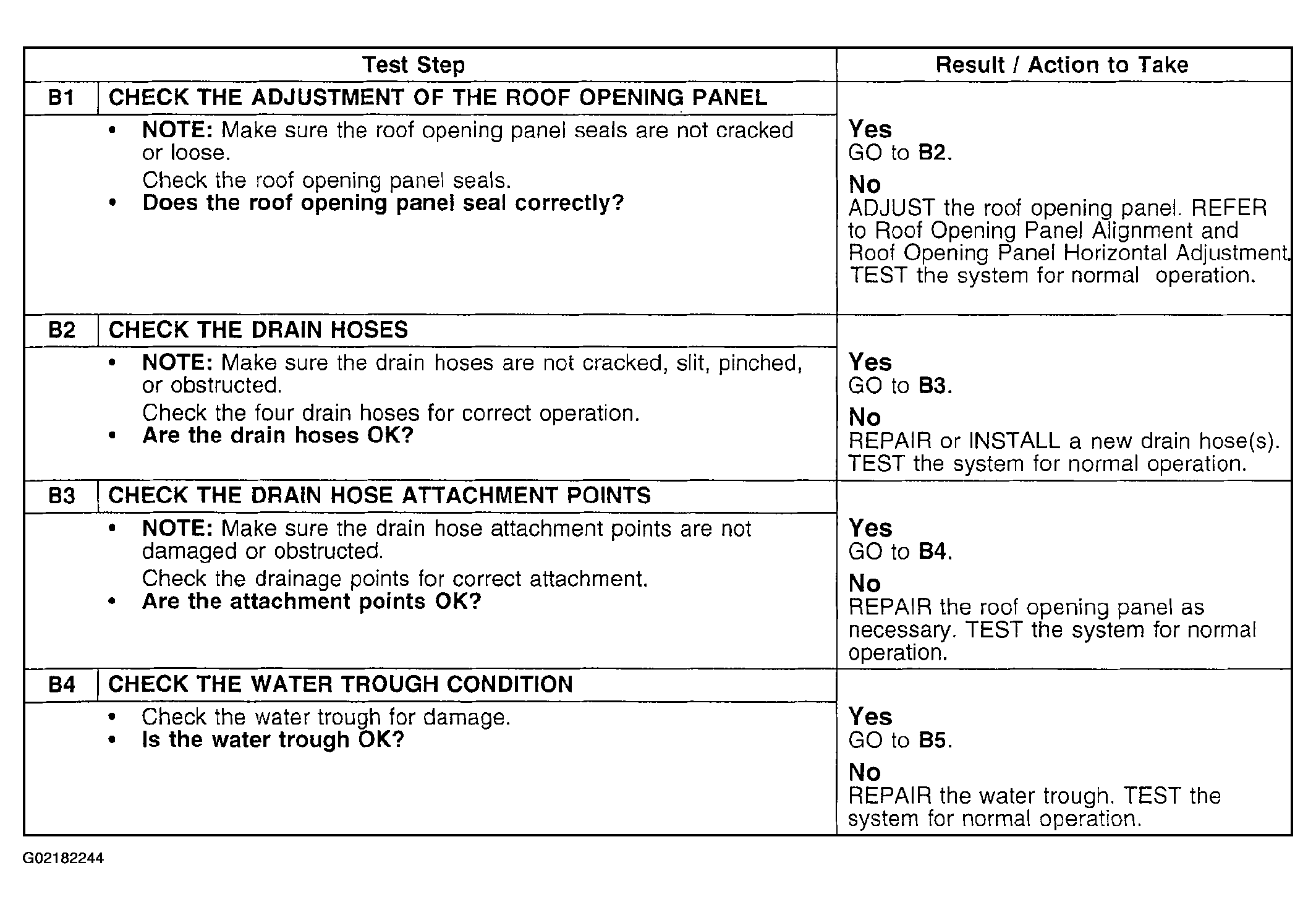

Fig 1: Pinpoint Test B: Roof Opening Panel Leaks (B1 - B4)
G02182244Courtesy of FORD MOTOR CO.

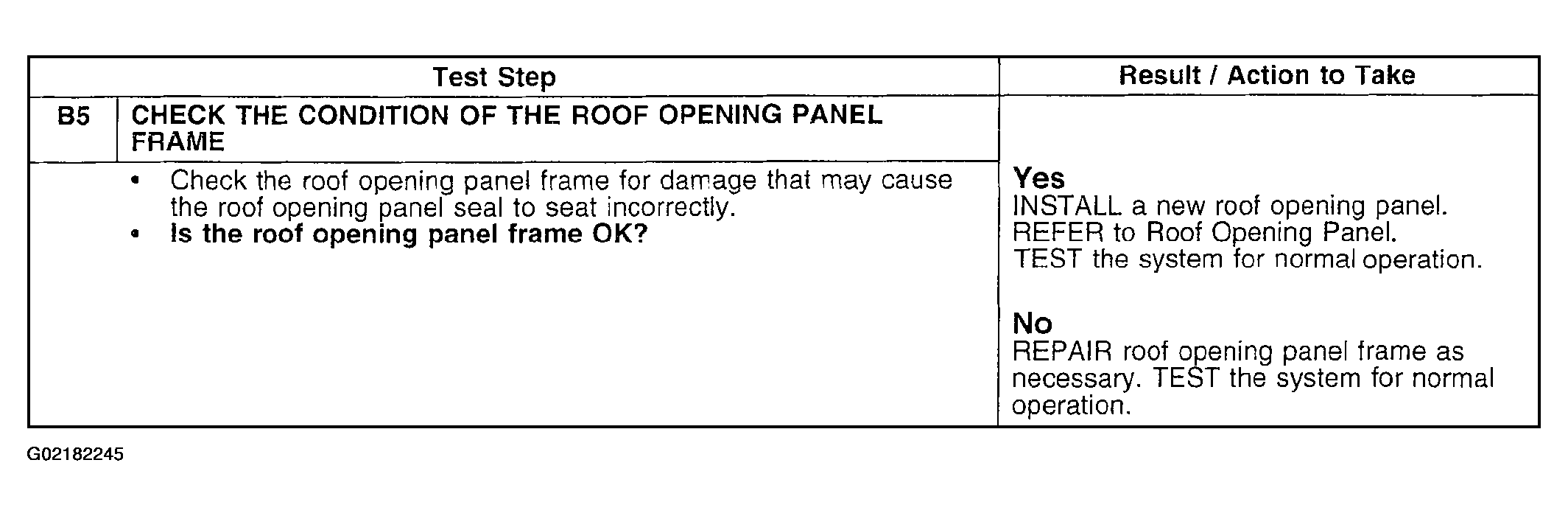

Fig 2: Pinpoint Test B: Roof Opening Panel Leaks (B5)
G02182245Courtesy of FORD MOTOR CO.
