Pinpoint Test A: The Roof Opening Panel Has Excessive Wind Noise: Testing

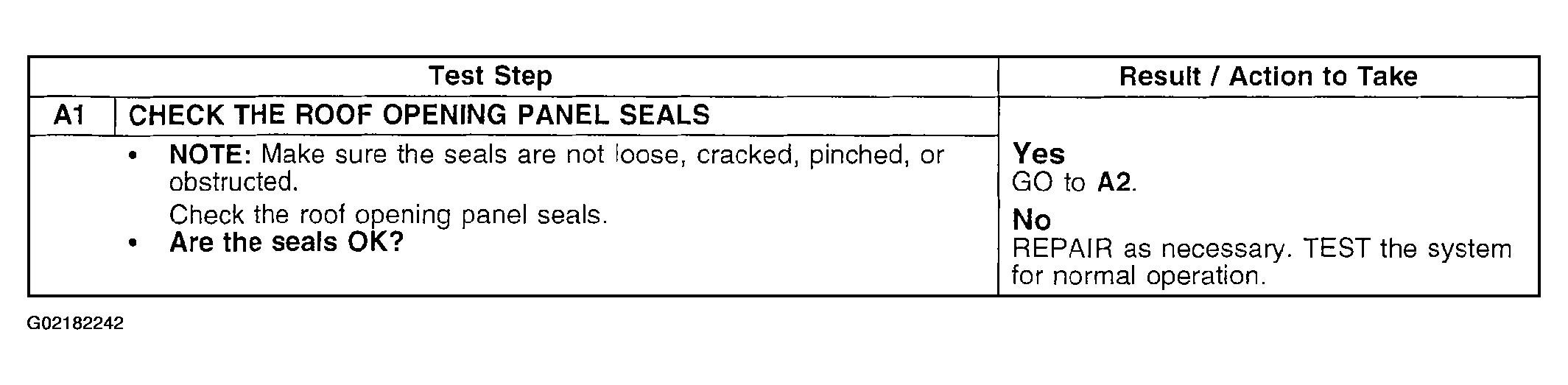

Fig 1: Pinpoint Test A: Roof Opening Panel Has Excessive Wind Noise (A1)
G02182242Courtesy of FORD MOTOR CO.

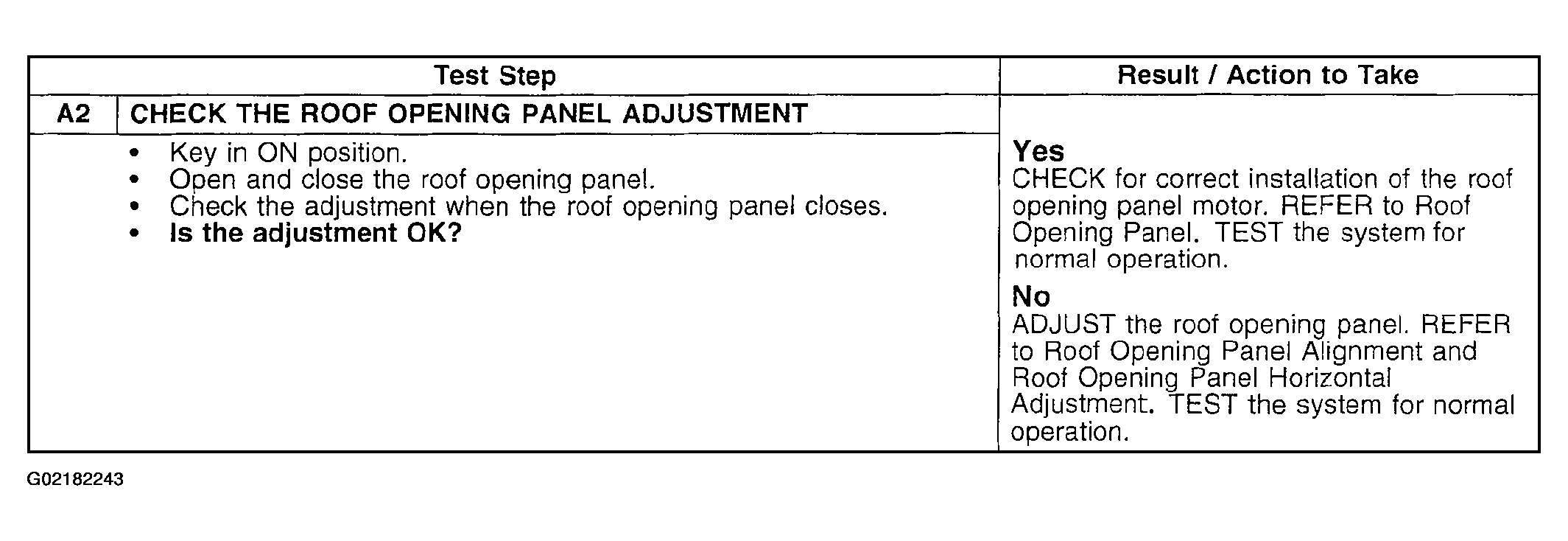

Fig 2: Pinpoint Test A: Roof Opening Panel Has Excessive Wind Noise (A2)
G02182243Courtesy of FORD MOTOR CO.
