Instrument Cluster Lens

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  2. Remove the retaining screws and remove the cluster lens.

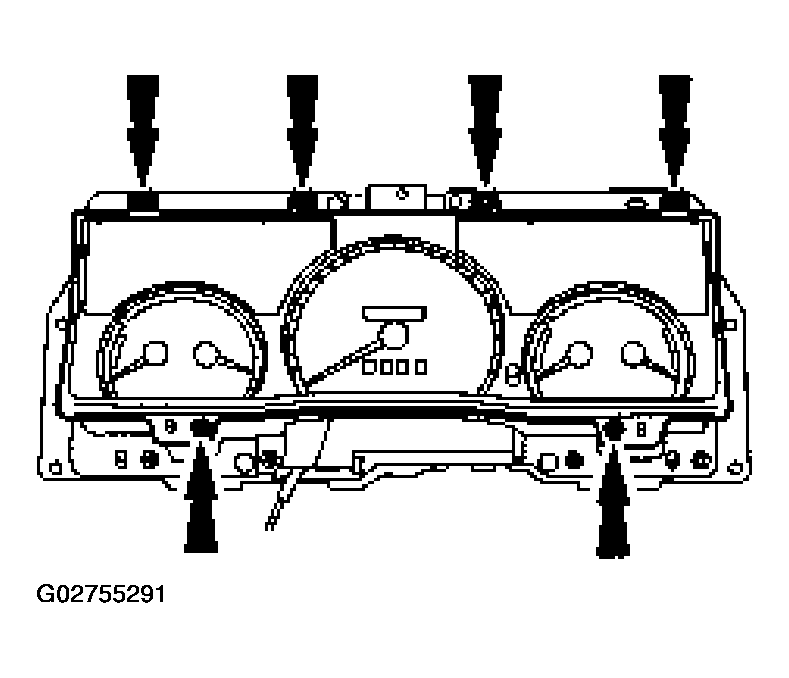

    Fig 1: Removing Cluster Lens Retaining Screws
    G02755291Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
