Pinpoint Test H: The Instrument Panel Illumination Does Not Dim

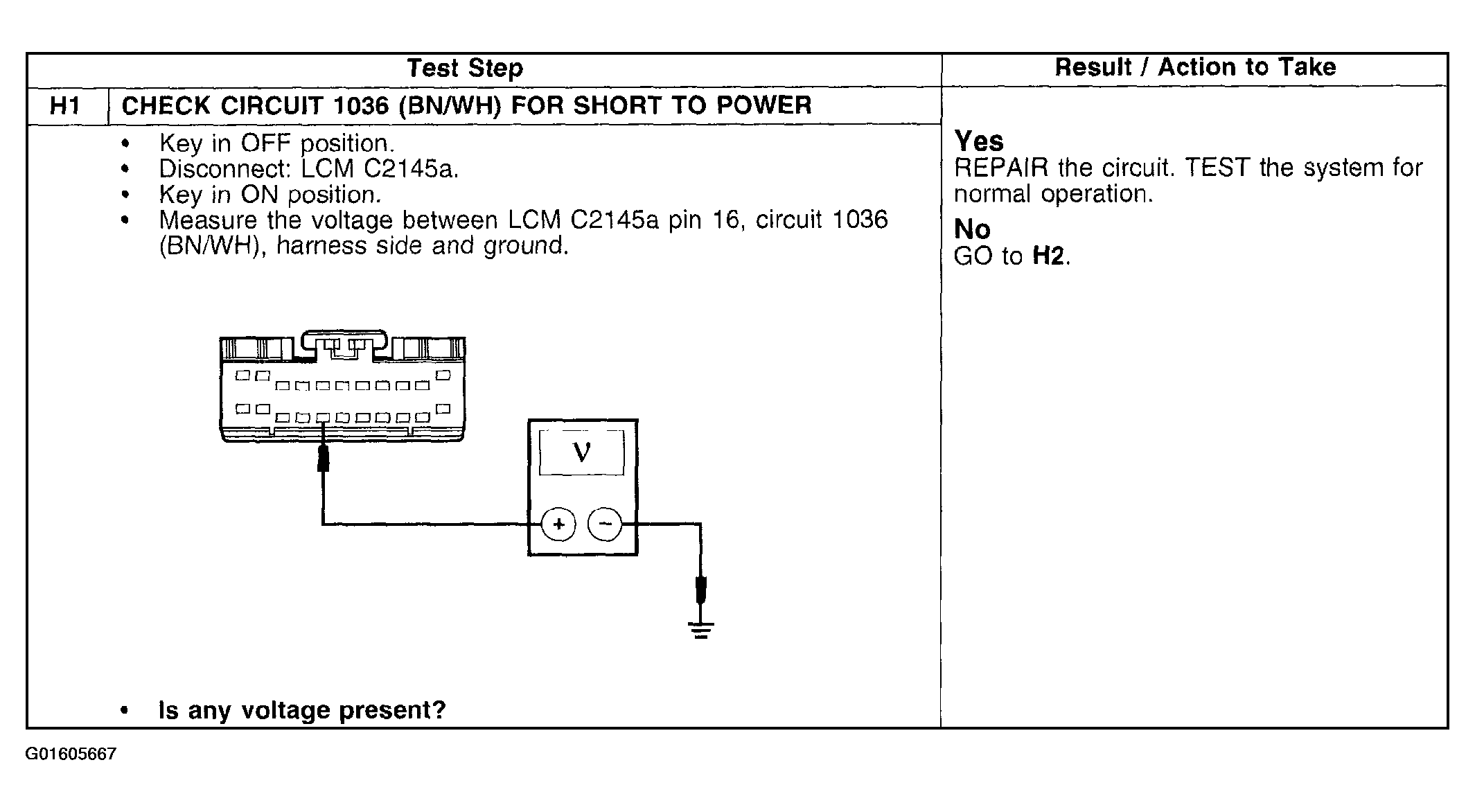

Fig 1: Pinpoint Test H: The Instrument Panel Illumination Does Not Dim (H1)
G01605667Courtesy of FORD MOTOR CO.

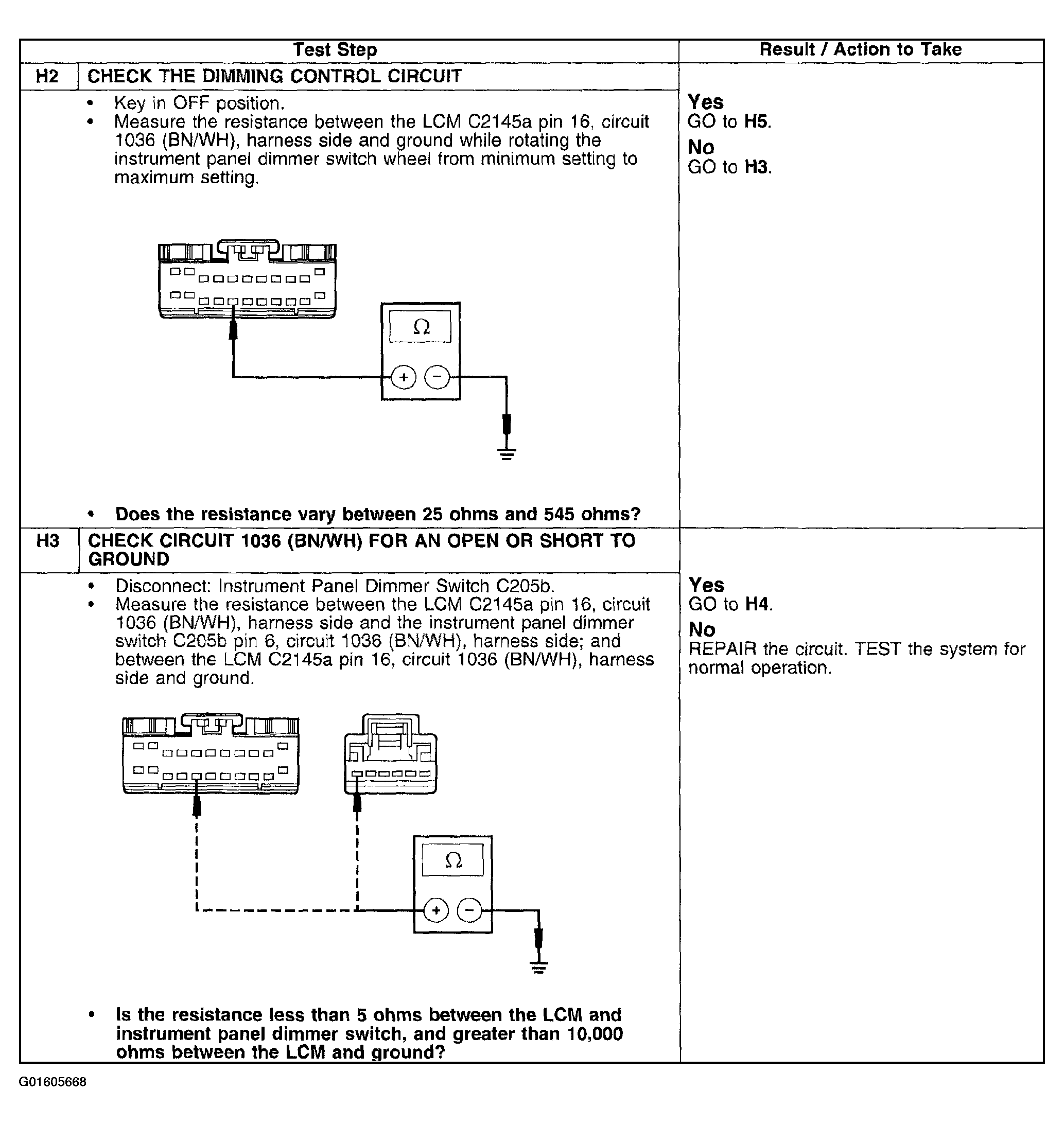

Fig 2: Pinpoint Test H: The Instrument Panel Illumination Does Not Dim (H2-H3)
G01605668Courtesy of FORD MOTOR CO.

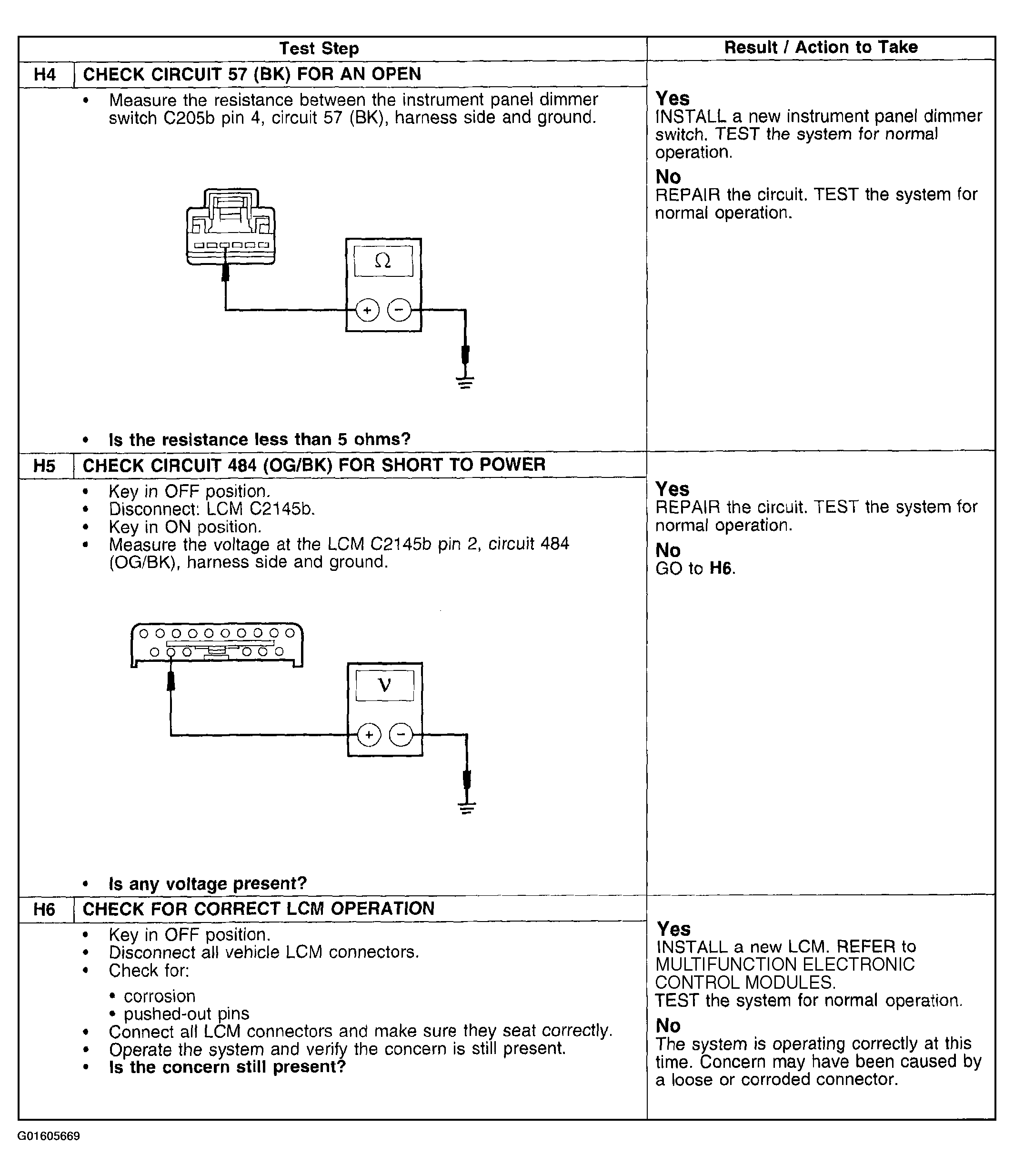

Fig 3: Pinpoint Test H: The Instrument Panel Illumination Does Not Dim (H4-H6)
G01605669Courtesy of FORD MOTOR CO.
