Pinpoint Test G: The Message Center Illumination Source Is Inoperative - With Moonroof

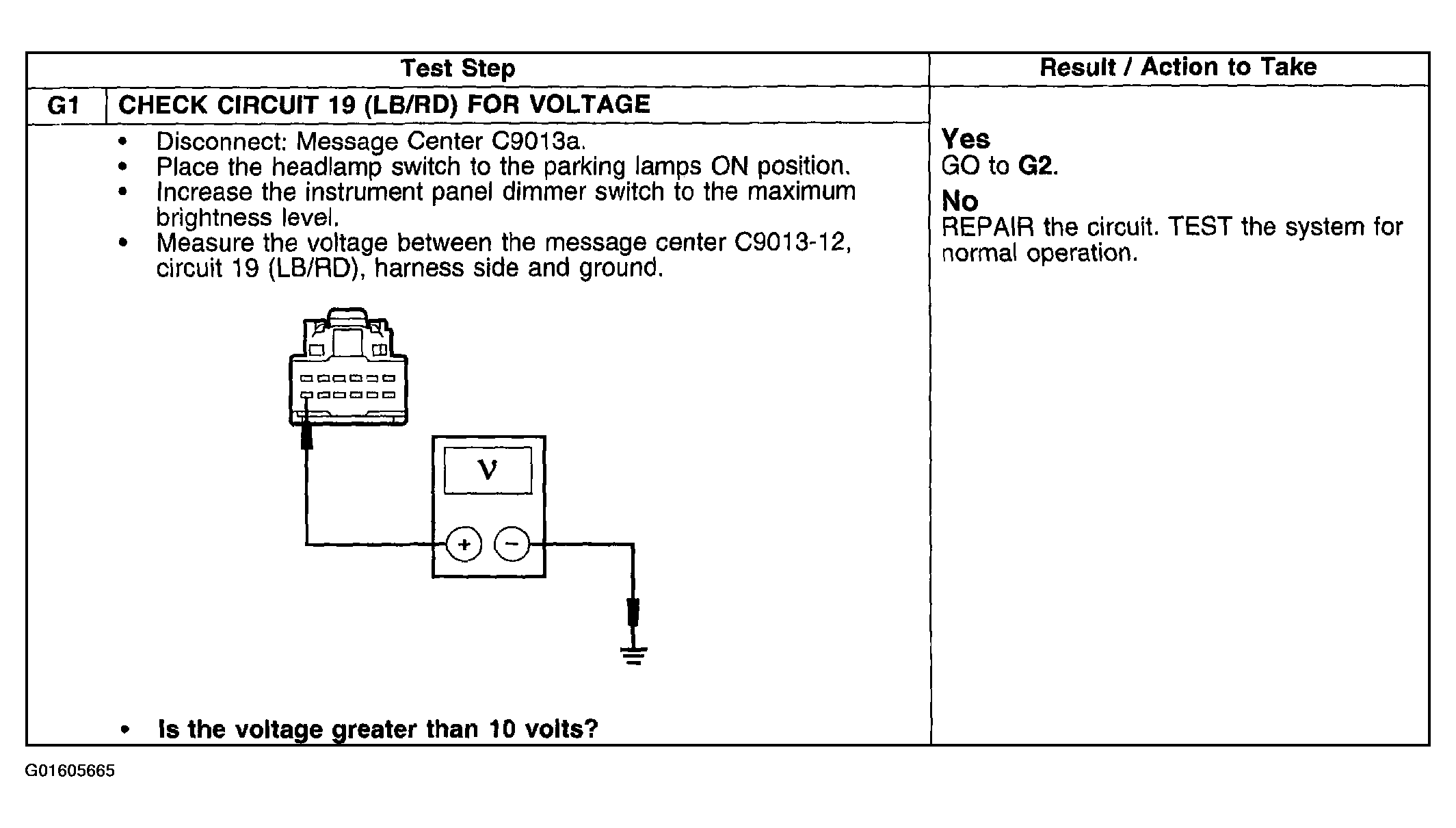

Fig 1: Pinpoint Test G: The Message Center Illumination Source Is Inoperative - With Moonroof (G1)
G01605665Courtesy of FORD MOTOR CO.

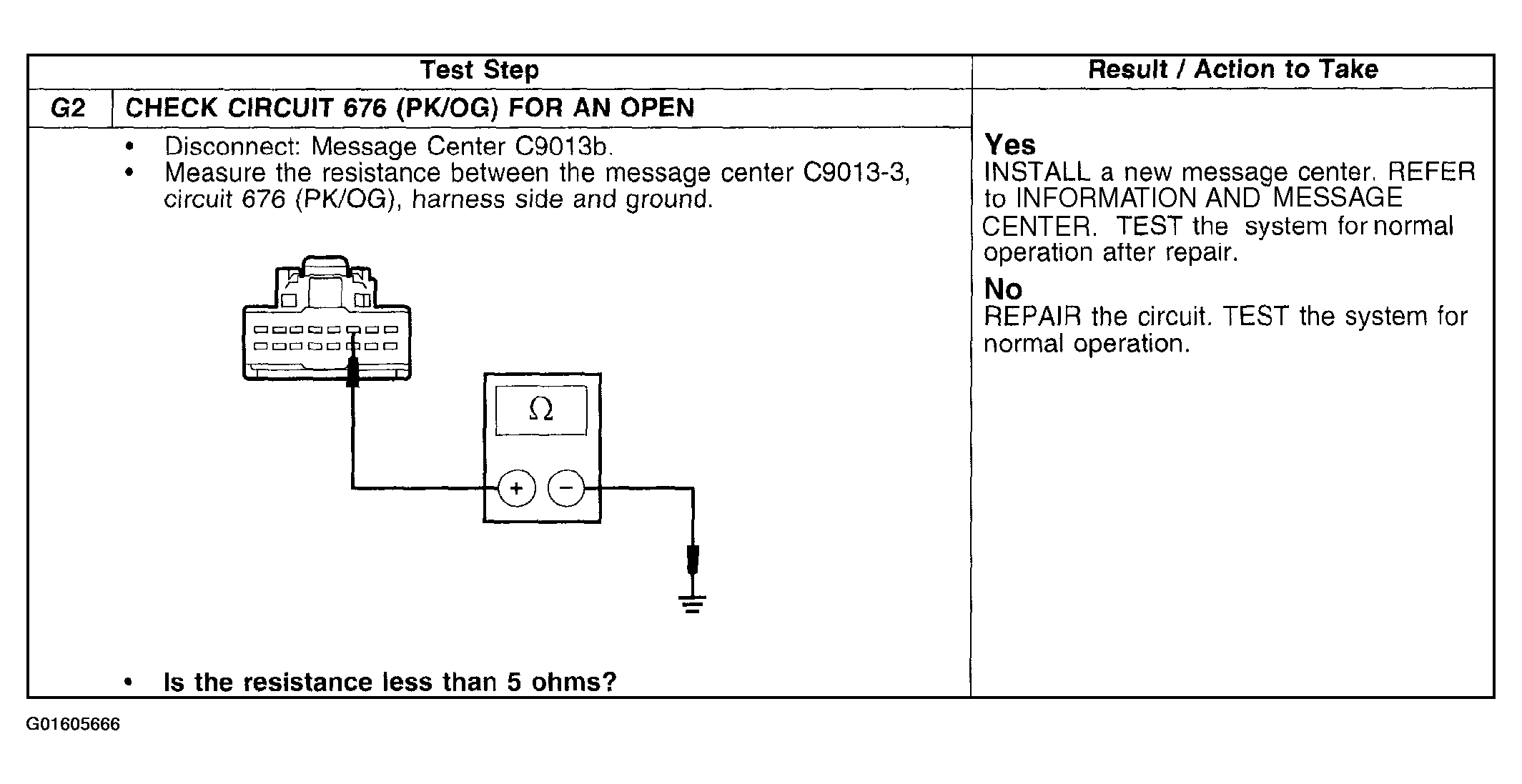

Fig 2: Pinpoint Test G: The Message Center Illumination Source Is Inoperative - With Moonroof (G2)
G01605666Courtesy of FORD MOTOR CO.
