Pinpoint Test F: A Single Illumination Source Is Inoperative

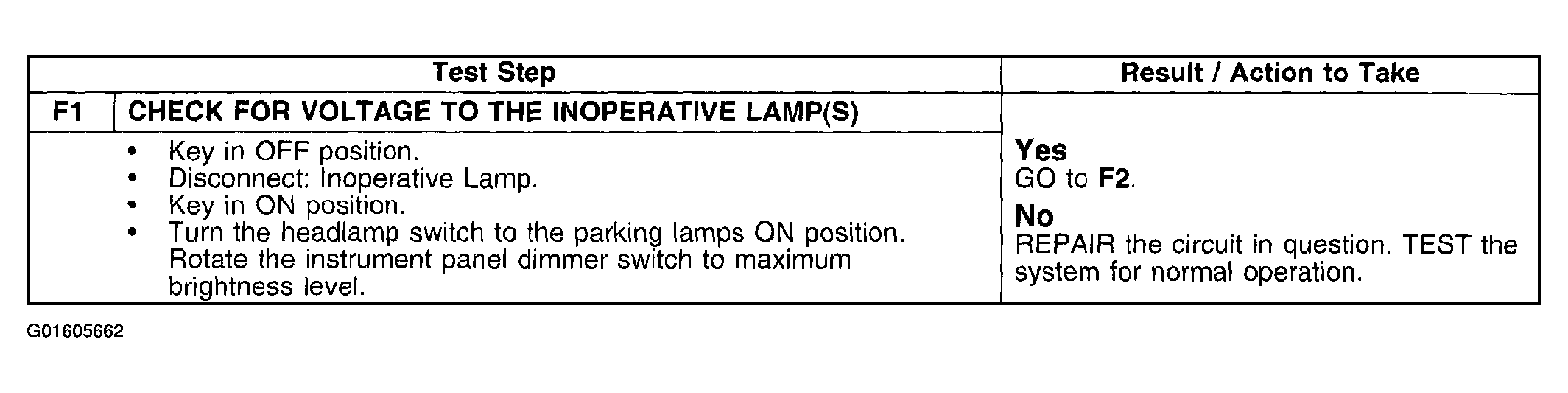

Fig 1: Pinpoint Test F: A Single Illumination Source Is Inoperative (F1)
G01605662Courtesy of FORD MOTOR CO.

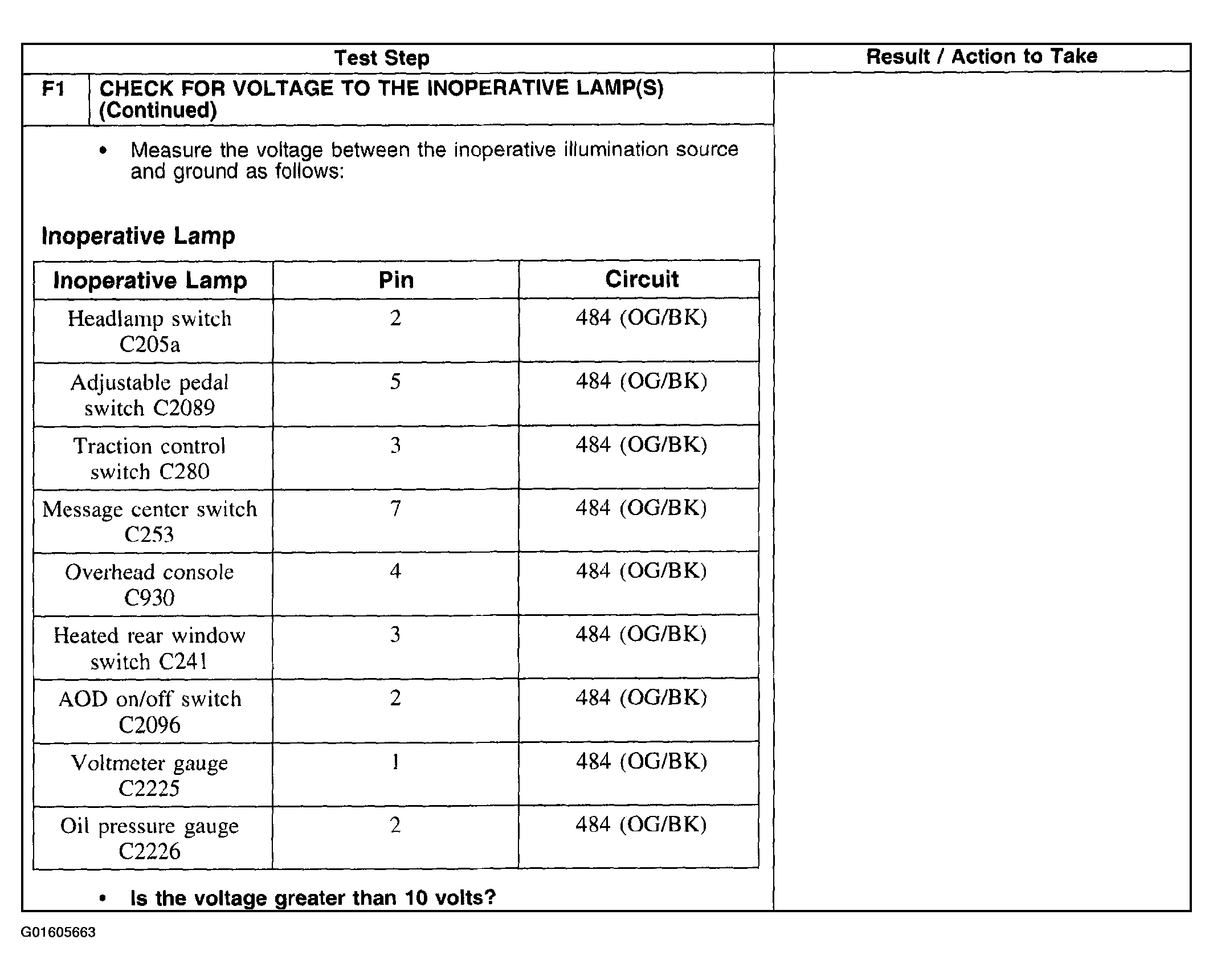

Fig 2: Pinpoint Test F: A Single Illumination Source Is Inoperative (F1 Cont.)
G01605663Courtesy of FORD MOTOR CO.

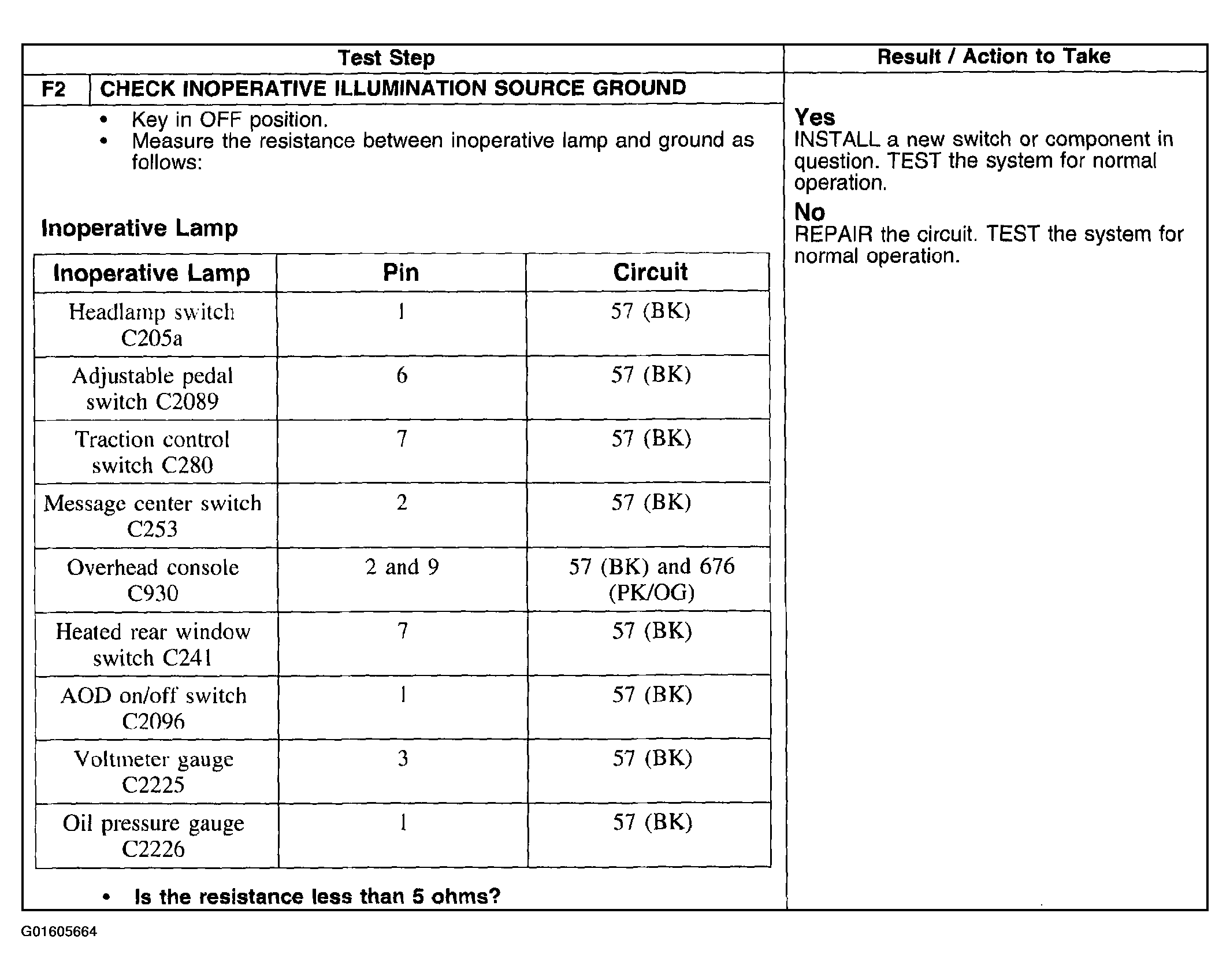

Fig 3: Pinpoint Test F: A Single Illumination Source Is Inoperative (F2)
G01605664Courtesy of FORD MOTOR CO.
